SPA
- 2 viewing window with different LED color
- Latching or non-latching
- DPDT contact circuti and SPST tactile contact
- Round and square version
- Application: audio-visual equipment, media
- General Specifications
- Circuit/Contacts SPAT: SPST; SPAA & SPAM: DPDT
- Switching rating SPAT: 12V DC @ 50mA; SPAA & SPAM: 30V DC @ 100mA
- Terminal Through hole (TH)
- Total travel SPAT: 0.3mm ± 0.2mm; SPAA & SPAM: 2.5mm ± 0.5mm
- Operating force SPAT: 180gf ± 80gf; SPAA & SPAM: 200gf ± 50gf
- Mechanical life SPAT: 800,000 cycles min.; SPAA & SPAM: 10,000 cycles min.
- Illumination illuminated
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with Silver plating
What makes SHANPU SPA dual window illuminated switches unique?
The SPA feature two LED windows in different colors, DPDT and SPST contacts, with round or square styles, perfect for AV, broadcasting, and automation use.

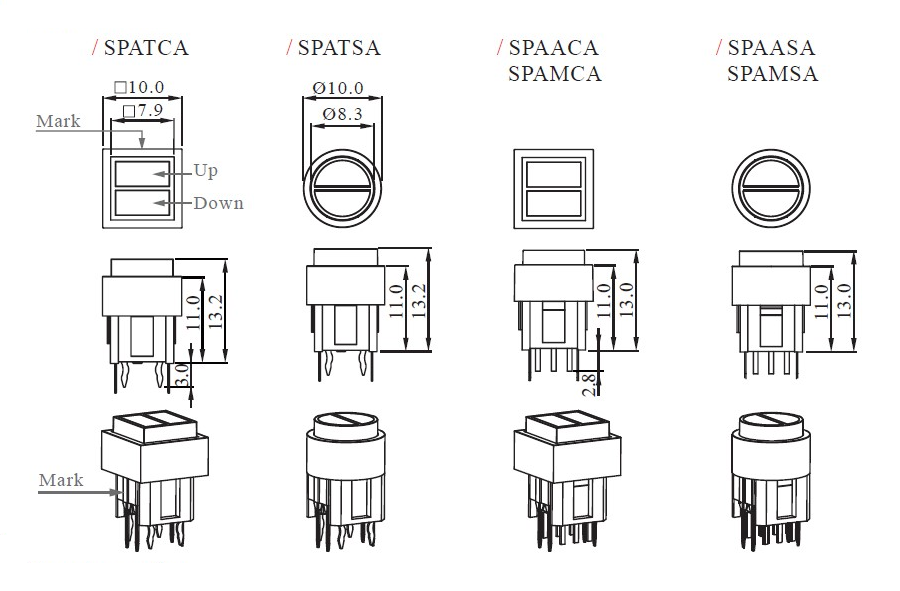

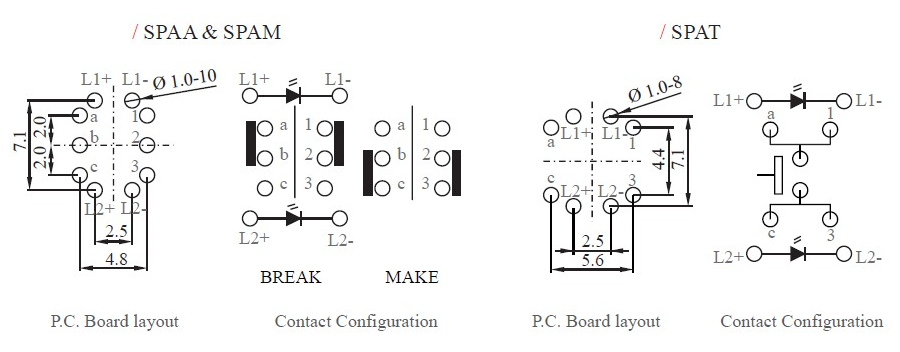

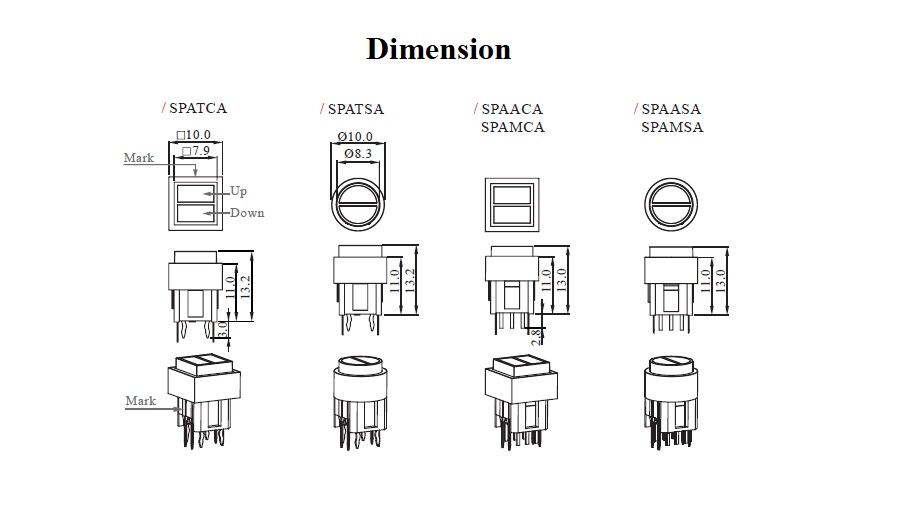

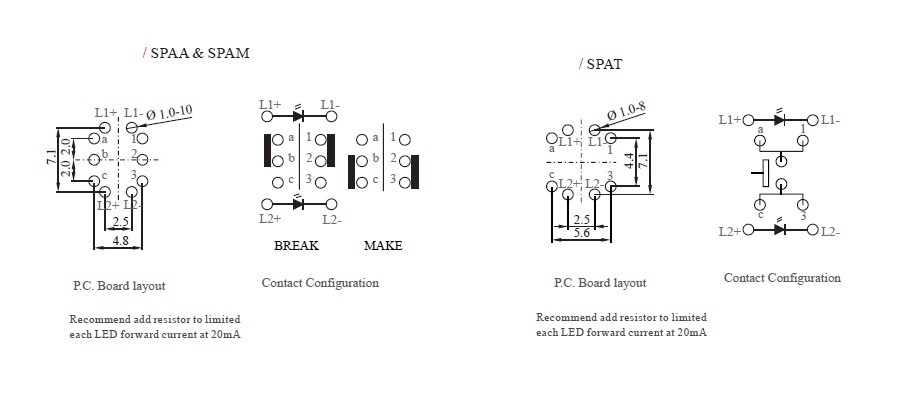

Contact configuration & PCB layout for SPA illuminated pushbutton switches.
SHANPU's SPA push button switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.
Download
Sample Order
- Module
- Part No
- Description
-
- SPAACA2V1313
-
- Dual window illuminated switch
- Alternate type, DPDT
- Square housing
- Red (up) and green (down) cap
- Red LED (up) and Green LED (down)
-
TWD 93
- +
-
- SPAMCA2V1313
-
- Dual window illuminated switch
- Momentary type, DPDT
- Square housing
- Red (up) and green (down) cap
- Red LED (up) and Green LED (down)
-
TWD 93
- +
-
- SPAASA2V1313
-
- Dual window illuminated switch
- Alternate type, DPDT
- Round housing
- Red (up) and green (down) cap
- Red LED (up) and Green LED (down)
-
TWD 93
- +
-
- SPAMSA2V1313
-
- Dual window illuminated switch
- Momentary type, DPDT
- Round housing
- Red (up) and green (down) cap
- Red LED (up) and Green LED (down)
-
TWD 93
- +
-
- SPATCA2V4413
-
- Illuminated tactile switch
- SPST
- Square housing
- White (up) and white (down) cap
- Red LED (up) and Green LED (down)
-
TWD 93
- +
-
- SPATSA2V1212
-
- Illuminated tactile switch
- SPST
- Round housing
- Red (up) and yellow (down) cap
- Red LED (up) and yellow LED (down)
-
TWD 93
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
