SP86N
- Piano style push button
- up to 2 LED indicator
- snap-action push ON (momentary)
- SPDT circuit
- General Specifications
- Circuit/Contacts SPDT (1C) momentary
- Switching rating 24V DC @ 12mA
- Terminal Through hole(TH)
- Total travel 2.5mm ± 0.5mm
- Operating force SP86N: 170gf ± 50gf; SP86N-H: 400gf ± 100gf
- Mechanical life 1,000,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens ABS(Acrylonitrile Butadine Styrene
- Stem/Reflector -
- Base/Housing PA(Polyamide)
- Terminal PBS (Phosphor bronze) with gold plating

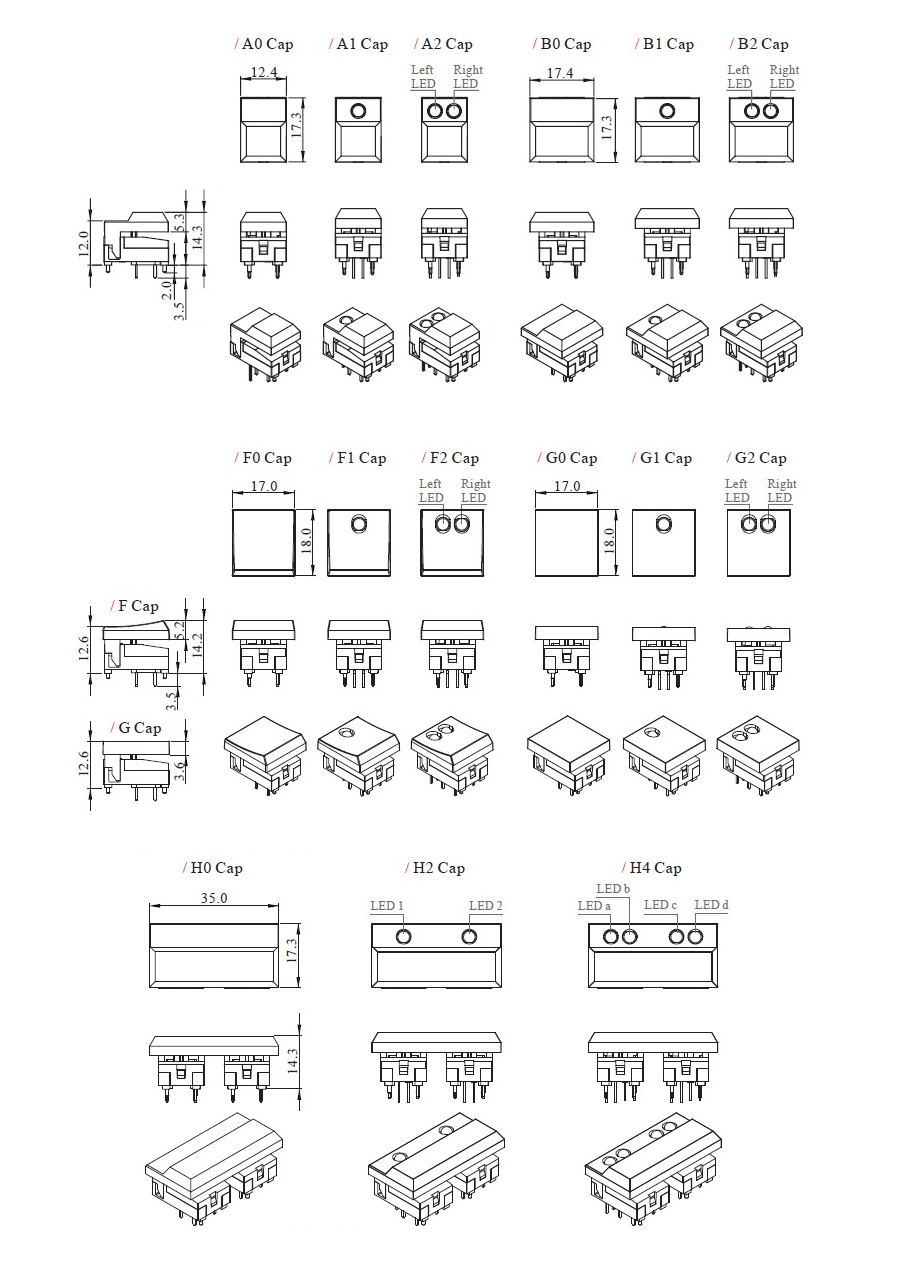

Dimension

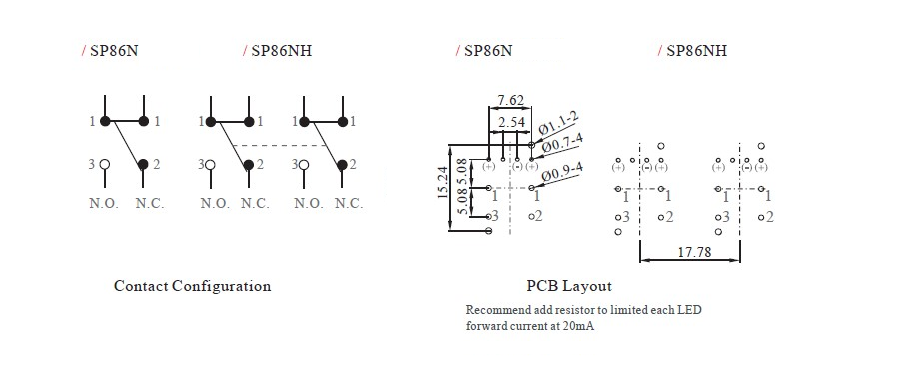

Contact configuration & PCB layout
