SP86L
- Piano style push button
- up to 2 LED indicater
- shanp-action push push (alternative)
- SPDT circuit
- General Specifications
- Circuit/Contacts SPDT (1C) alternative
- Switching rating 24V DC @ 12mA
- Terminal Through hole(TH)
- Total travel 2.5mm ± 0.5mm
- Operating force 170gf ± 50gf
- Mechanical life 500,000 cycles min.
- Front protection IP4X
- Illumination illuminated
- Materials
- Cap/Lens ABS(Acrylonitrile Butadine Styrene
- Stem/Reflector -
- Base/Housing PA(Polyamide)
- Terminal PBS (Phosphor bronze) with gold plating

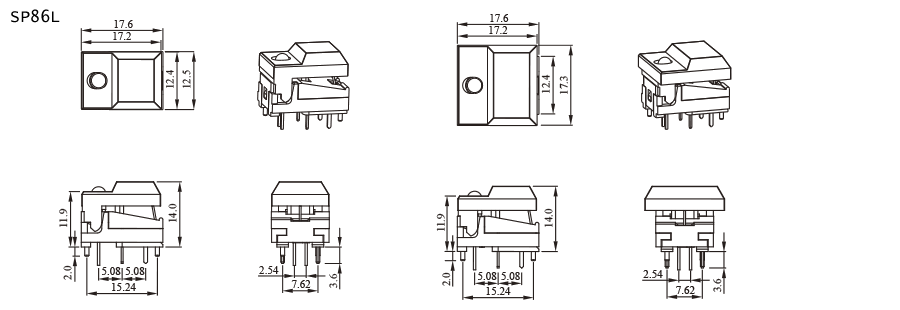

Diagram

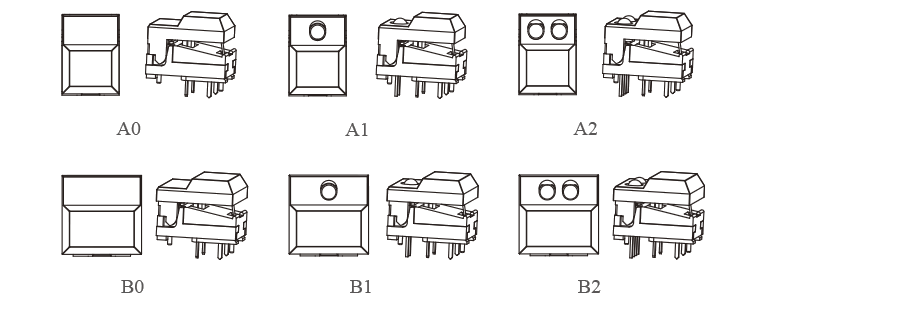

Cap style
