SP86 Momentary Push Button Switch
- Piano key pushbutton
- Momentary press
- LED illuminated design
- SPDT functionality
- Application: media devices, home control panels
- General Specifications
- Circuit/Contacts SPDT (1C) momentary
- Switching rating 24V DC @ 12mA
- Terminal Through hole (TH)
- Total travel 2.5mm ± 0.5mm
- Operating force SP86N: 170gf ± 50gf; SP86NH: 400gf ± 100gf
- Mechanical life 1,000,000 cycles min.
- Illumination illuminated
- Materials
- Cap/Lens ABS (Acrylonitrile Butadine Styrene
- Base/Housing PA (Polyamide)
- Terminal PBS (Phosphor bronze) with gold plating
Does the SP86 support momentary action?
SHANPU’s SP86 push button features momentary operation, offering smooth tactile response, LED illumination, and reliable SPDT contacts for versatile use.

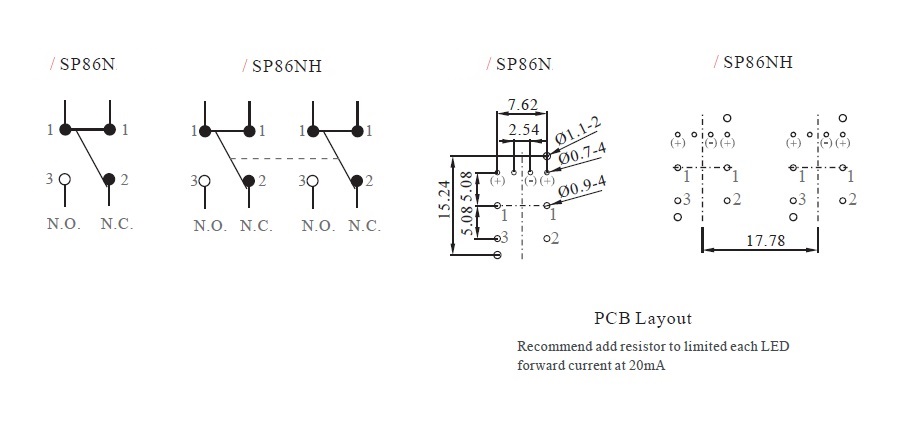

Contact configuration & PCB layout for SP86 momentary push button switch.
SHANPU's SP86 push button switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.
Download
Sample Order
- Module
- Part No
- Description
-
- SP86N-A1-5-01
-
- Momentary push button switch
- Non lock type
- Small cap style
- Black cap (one LED)
- Red LED
-
TWD 68
- +
-
- SP86N-B2-5-13
-
- Momentary push button switch
- Non lock type
- Large cap style
- Black cap (two LED)
- Red LED (Left) and Green LED (Right)
-
TWD 72
- +
-
- SP86N-F0-9-00
-
- Momentary push button switch
- Non lock type
- F cap style
- Grey cap
- w/o LED
-
TWD 61
- +
-
- SP86N-G1-5-01
-
- Momentary push button switch
- Non lock type
- G cap style
- Black cap (one LED)
- Red LED
-
TWD 68
- +
-
- SP86N-J2-5-33
-
- Momentary push button switch
- Non lock type
- J cap style
- Black cap (two LED)
- Green LED (Left) and Green LED (Right)
-
TWD 72
- +
-
- SP86NH2513
-
- Momentary push button switch
- Non lock type
- H cap style (Double wide)
- Black cap (two LED)
- Red LED (Left) and Green LED (Right)
-
TWD 155
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
