SP86 Latching Push Button Switch
- Piano-style push switch
- Locking type
- LED illumination
- SPDT electrical contacts
- Application: audio-visual systems, automation
- General Specifications
- Circuit/Contacts SPDT (1C) Alternate
- Switching rating 24V DC @ 12mA
- Terminal Through hole (TH)
- Total travel 2.5mm ± 0.5mm
- Operating force SP86L: 170gf ± 50gf
- Mechanical life SP86N & SP86NH: 1,000,000 cycles min.; SP86L: 500,000 cycles min.
- Illumination Red, Yellow, Green, Blue LED
- Materials
- Cap/Lens ABS (Acrylonitrile Butadine Styrene
- Base/Housing PA (Polyamide)
- Terminal PBS (Phosphor bronze) with gold plating
Does the SP86 push botton have a locking function?
The SP86 includes lock modes, combined with LED illumination, making it suitable for broadcasting, automation and smart home control devices.

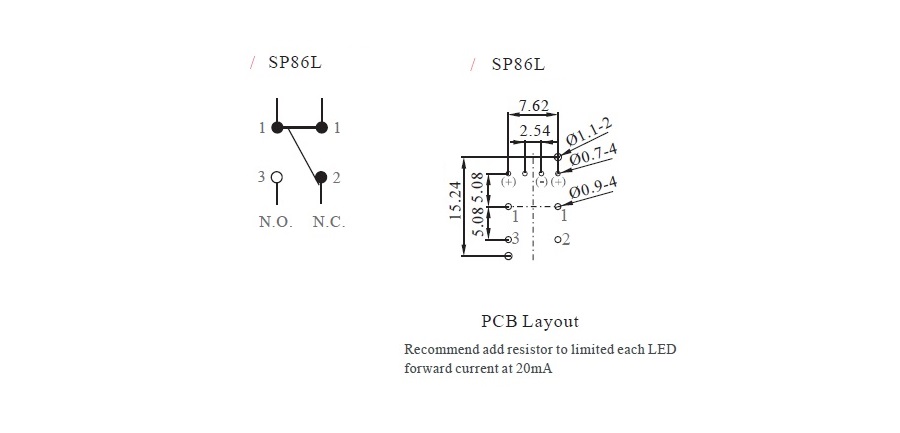

Contact configuration & PCB layout for SP86 latching push button switch.
SHANPU's SP86 push button switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.
Download
Sample Order
- Module
- Part No
- Description
-
- SP86L-A0-9-00
-
- Latching push button switch
- Lock type
- Small cap style
- Grey cap
- w/o LED
-
TWD 60
- +
-
- SP86L-B1-5-01
-
- Latching push button switch
- Lock type
- Large cap style
- Black cap (one LED)
- Red LED
-
TWD 65
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
