SP86
- Piano style push button
- Momentary and lock function
- LED illuminate
- SPDT circuit
- Application: audio devices, broadcast systems
- General Specifications
- Circuit/Contacts SPDT (1C) momentary (SP86N) & Alternate (SP86L)
- Switching rating 24V DC @ 12mA
- Terminal Through hole (TH)
- Total travel 2.5mm ± 0.5mm
- Operating force SP86N & SP86L: 170gf ± 50gf; SP86NH: 400gf ± 100gf
- Mechanical life 1,000,000 cycles min.
- Illumination illuminated
- Materials
- Cap/Lens ABS (Acrylonitrile Butadine Styrene
- Base/Housing PA (Polyamide)
- Terminal PBS (Phosphor bronze) with gold plating
Can the SP86 be used in audio-visual equipment?
SHANPU SP86 illuminated push button is widely used in audio-visual, providing clear tactile feedback, bright LED lighting, and durable SPDT switching performance.

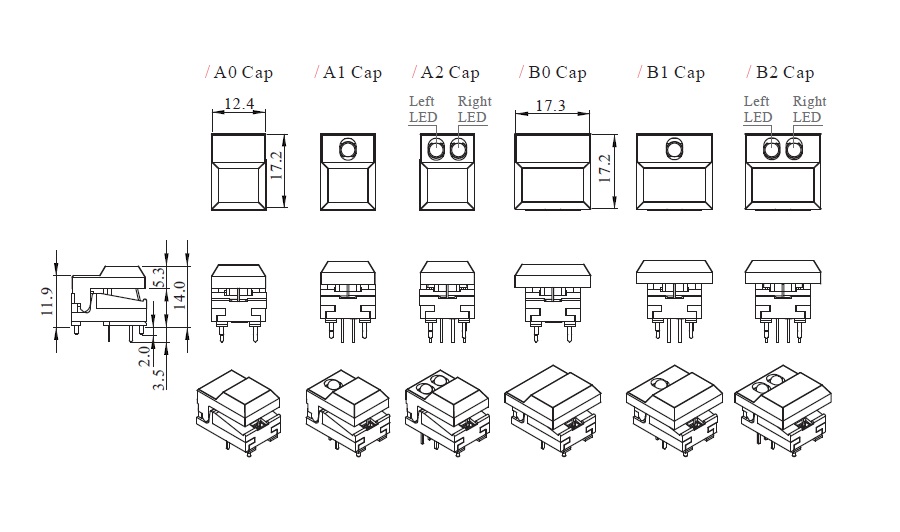

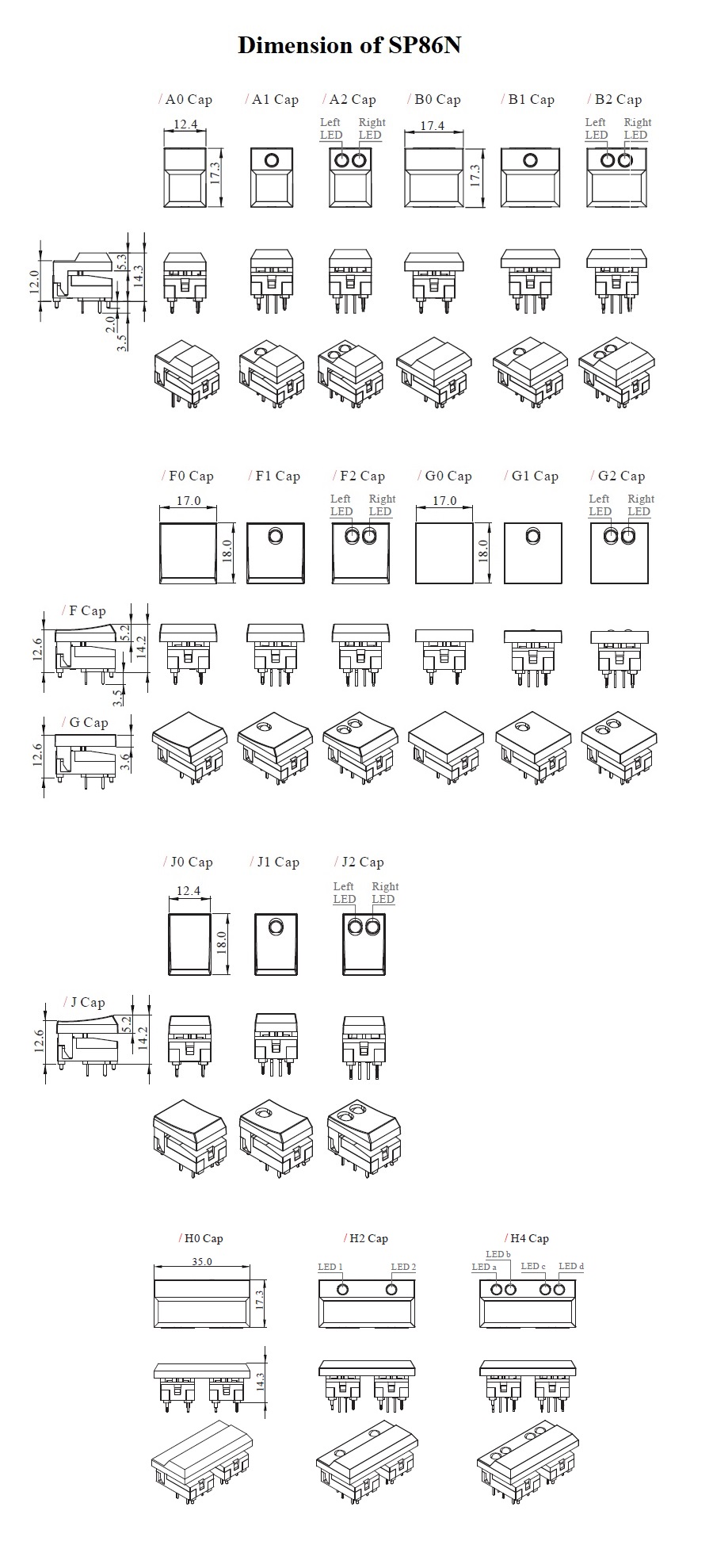

Dimension of SP86L alternate illuminated push button.

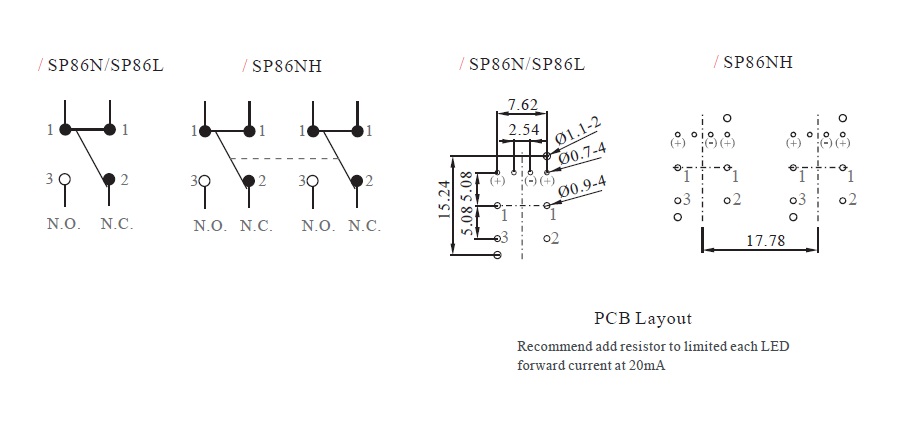

Contact configuration & PCB layout for SP86 illuminated push button.
SHANPU's SP86 push button switch is a mechanical contact, illuminated switch with LED, please follow the contact circuit and configuration below.
Download
Sample Order
- Module
- Part No
- Description
-
- SP86L-A0-9-00
-
- Piano style pushbutton switch
- Lock type
- Small cap style
- Grey cap
- w/o LED
-
TWD 90
- +
-
- SP86L-B1-5-01
-
- Piano style pushbutton switch
- Lock type
- Large cap style
- Black cap (one LED)
- Red LED
-
TWD 97
- +
-
- SP86N-A1-5-01
-
- Piano style pushbutton switch
- Momentary type
- Small cap style
- Black cap (one LED)
- Red LED
-
TWD 68
- +
-
- SP86N-B2-5-13
-
- Piano style pushbutton switch
- Momentary type
- Large cap style
- Black cap (two LED)
- Red LED (Left) and Green LED (Right)
-
TWD 72
- +
-
- SP86N-F0-9-00
-
- Piano style pushbutton switch
- Momentary type
- F cap style
- Grey cap
- w/o LED
-
TWD 61
- +
-
- SP86N-G1-5-01
-
- Piano style pushbutton switch
- Momentary type
- G cap style
- Black cap (one LED)
- Red LED
-
TWD 68
- +
-
- SP86N-J2-5-33
-
- Piano style pushbutton switch
- Momentary type
- J cap style
- Black cap (two LED)
- Green LED (Left) and Green LED (Right)
-
TWD 72
- +
-
- SP86NH2513
-
- Piano style pushbutton switch
- Momentary type
- H cap style (Double wide)
- Black cap (two LED)
- Red LED (Left) and Green LED (Right)
-
TWD 155
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
