SNA4
- Panel cutting 40mmx28mm module design
- 5-way navigation tactile push button function and LED illumination
- Single pole/Common bus terminal pin-out
- Custom markings service
- Application: industrial control, automation equipment
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel 0.25mm±0.1mm
- Operating force 200gf±50gf
- Mechanical life 100,000 cycles min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector PA (Polyamide)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
Can the SNA4 5-way navigation button switch be installed in a 1U case?
SHANPU's SNA4 5-way navigation button switch fits standard 1U case panels, making it ideal for rack-mount automation and control cabinet installations.

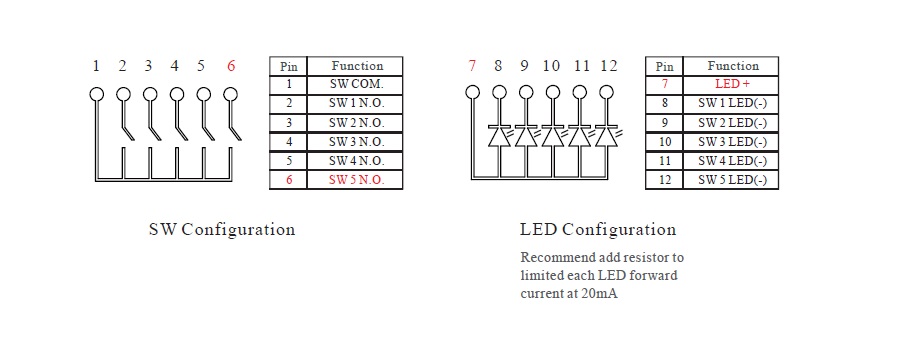

Contact configuration for SNA4 5-way navigation button switch.

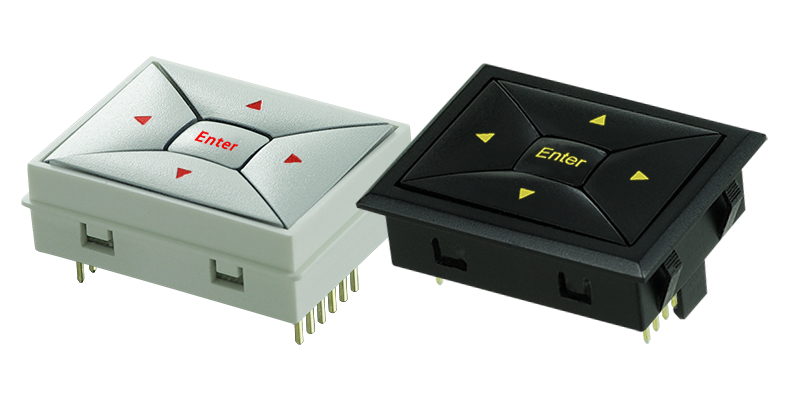

SHANPU's SNA4 5-way navigation module switch with common bus terminal pin-out, LED illumination and marking service.
Video
Download
Sample Order
- Module
- Part No
- Description
-
- SNA4S2551 + YCW012
-
- SNA4 5-way navigation switch

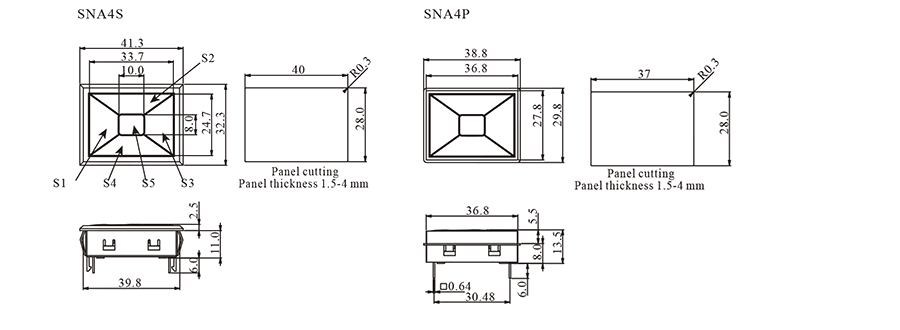

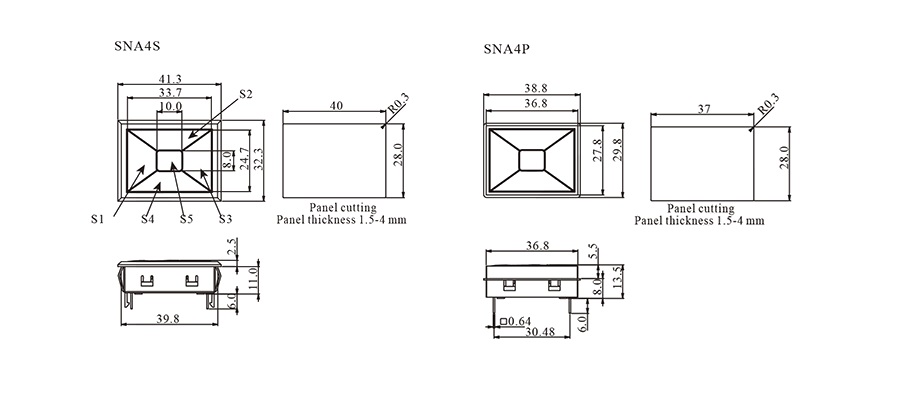

- Panel cutting 40mmx28mm
- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 5 individual Yellow LED tactile switches
- YCW012*2pcs wire, 6 line, 24AWG, L=30cm, fly end
-
TWD 680
- +
-
- SNA4S2551
-
- SNA4 5-way navigation switch
- Panel cutting 40mmx28mm
- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 5 individual Yellow LED tactile switches
-
TWD 480
- +
-
- SNA4P1441
-
- SNA4 5-way navigation switch
- Panel cutting 40mmx28mm
- White cap with laser arrow and Enter marking
- 5 individual Red LED tactile switches
- PCB through hole
-
TWD 520
- +
-
- YCW012
-
- Wire for SNA4 navigation switch

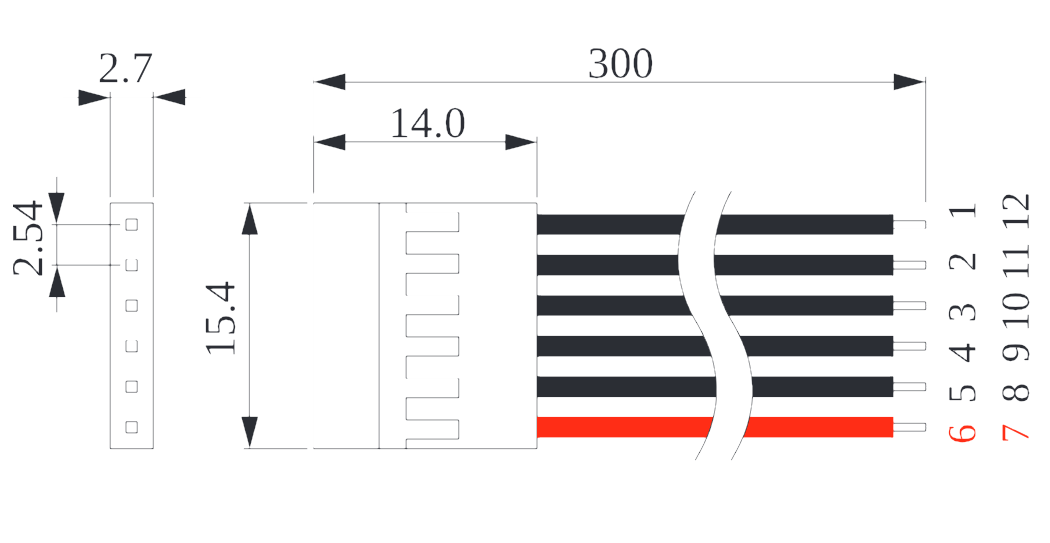

- wire pitch 2.54mm, 6 line, 24AWG, L=30cm, fly end
- A SNA4S module switch must be require two wires
-
TWD 100
- +
