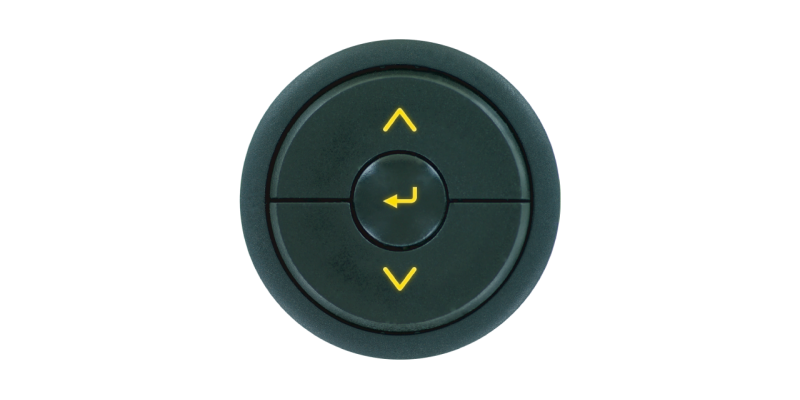

SNA3 LED Multi-way Push Button Switch
- 34mm cut diameter switch module
- 3-way momentary tactile with LED illumination
- Single-pole common bus terminals
- Custom marking
- Application: medical, assistive technology device
- General Specifications
- Circuit/Contacts SPST*3 Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel 0.2mm±0.1mm
- Operating force 400gf (Max.)
- Mechanical life 1,000,000 cycles min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
How do 3-way LED multi-way push button switch reduce control panel complexity?
Reduce clutter in control panels with SHANPU SNA3, a 3-way LED push button switch module that saves PCB space, cutting component costs and streamlines electronics manufacturing for global OEMs.
Contact configuration for SNA3 3-way LED multi-way push button switch.
SHANPU's SNA3 LED Multi-way Push Button Switch delivers reliable tactile momentary feedback, LED illumination and custom marking, perfect for global electronics and control panels.
Video
Sample Order
- Module
- Part No
- Description
-
- SNA3S2552
-
- LED multi-way push button switch
- Panel cutting dia. 34mm
- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Yellow LED tactile switches
-
TWD 590
- +
-
- SNA3S2552 + YCW011
-
- LED multi-way push button switch
- Panel cutting dia. 34mm
- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Yellow LED tactile switches
- YCW011 wire, 8 line, 26AWG, L=30cm
-
TWD 770
- +
-
- SNA3S1441
-
- LED multi-way push button switch
- Panel cutting dia. 34mm
- White cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Red LED tactile switches
-
TWD 630
- +
-
- SNA3S1441 + YCW011
-
- LED multi-way push button switch
- Panel cutting dia. 34mm
- White cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Red LED tactile switches
- YCW011 wire, 8 line, 26AWG, L=30cm
-
TWD 810
- +
-
- YCW011
-
- wire for SNA3 3-way push button switch module
- wire pitch 2.0mm, 8 line, 26AWG, L=30cm
-
TWD 180
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
