SNA3
- Panel cutting dia. 34mm module design
- 3-way navigation tactile function
- LED illumination
- Custom marking
- Application: industrial control, automation equipment
- General Specifications
- Circuit/Contacts SPST*3 Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel 0.2mm±0.1mm
- Operating force 400gf (Max.)
- Mechanical life 1,000,000 cycles min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
What is the role of LED in SNA3 modular switches?
LED illumination enhances visibility, supports low-light environments, and adds modern interface design. SHANPU SNA3 modular LED switches are widely used in automation and electronics.

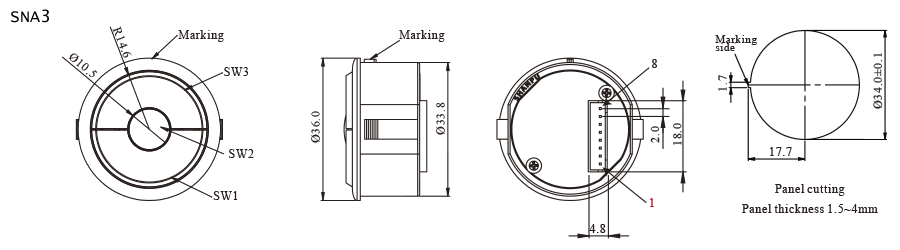

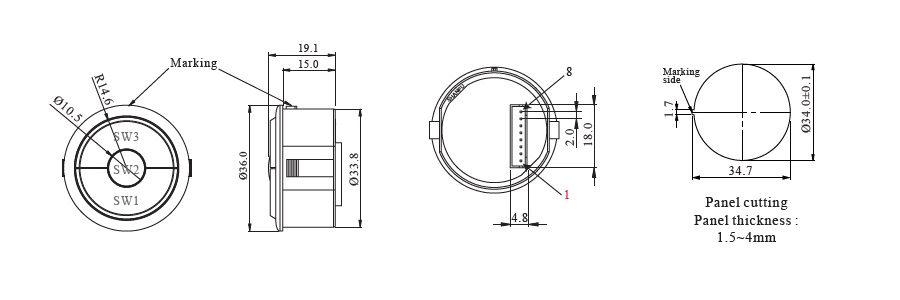

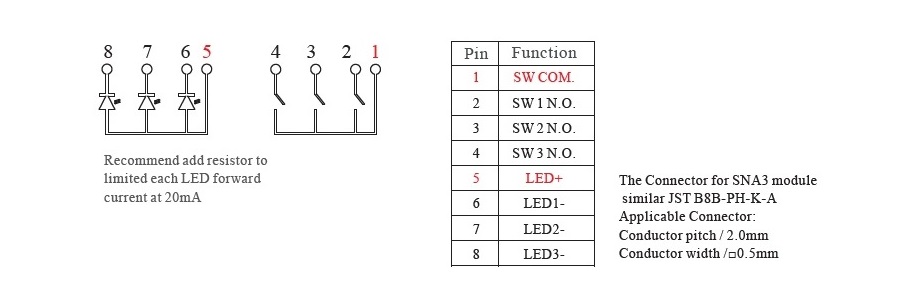

Contact configuration for SNA3 3-way navigation button switch.
SHANPU’s SNA3 3-way navigation module switch integrates illuminated LED design, common bus terminal pin-out and logo marking service, giving manufacturers a flexible and space-saving solution worldwide.
Video
Download
Sample Order
- Module
- Part No
- Description
-
- SNA3S2552 + YCW011
-
- Panel cutting dia. 34mm

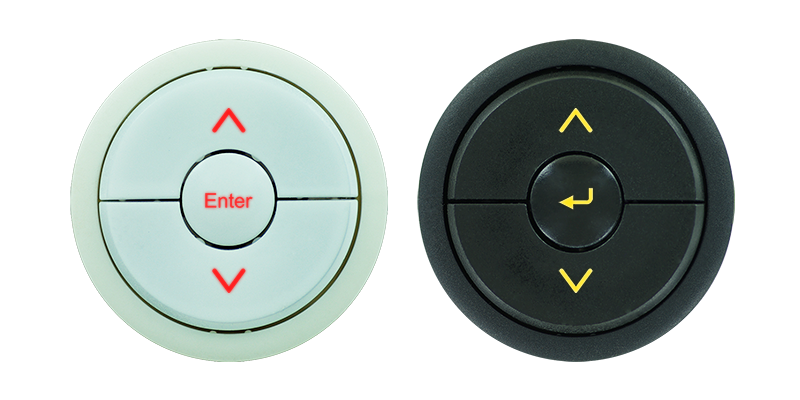

- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Yellow LED tactile switches
- YCW011 wire, 8 line, 26AWG, L=30cm
-
TWD 770
- +
-
- SNA3S2552
-
- Panel cutting dia. 34mm
- Black cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Yellow LED tactile switches
-
TWD 590
- +
-
- SNA3S1441 + YCW011
-
- Panel cutting dia. 34mm
- White cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Red LED tactile switches
- YCW011 wire, 8 line, 26AWG, L=30cm
-
TWD 810
- +
-
- SNA3S1441
-
- Panel cutting dia. 34mm
- White cap with laser arrow and Enter marking
- Snap-in panel mounting
- 3 individual Red LED tactile switches
-
TWD 630
- +
-
- YCW011
-
- wire for SNA3 3-way push button switch module
- wire pitch 2.0mm, 8 line, 26AWG, L=30cm
-
TWD 180
- +
