SNA1
- Panel cutting dia. 34mm module design
- 5-way navigation tactile push button function and LED illumination
- 150mm FFC (Flexible Flat Cable) cable
- Application: industrial control, automation equipment
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC
- Terminal FFC (Flexible Flat Cable)
- Total travel Tactile type: 0.4mm±0.2mm / Noiseless type: 1.0mm±0.3mm
- Operating force Tactile type: 230gf±50gf / Noiseless type: 60gf±40gf
- Mechanical life 1,000,000 cycles min.
- Front protection IP4X
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector Polyoxymethylene (POM)
- Base/Housing PA (Polyamide)
- Terminal FFC (Flexible Flat Cable)
What is a SNA1 5-way navigation module switch?

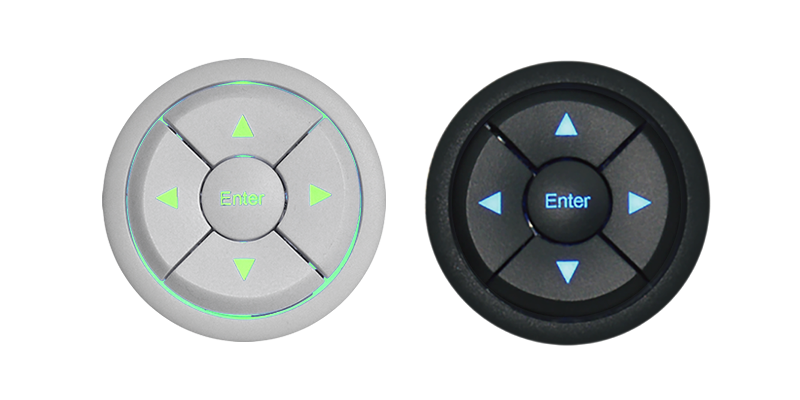

SHANPU's SNA1 5-way navigation module switch integrates five directional functions (up, down, left, right, and center press). And custom markings are also available.

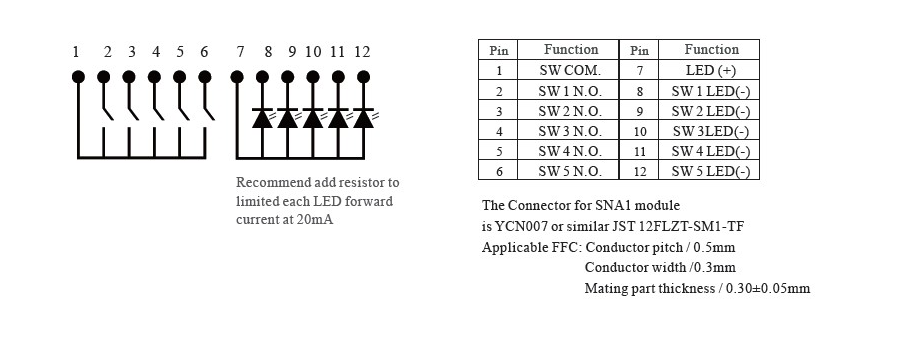

Contact configuration for SNA1 5-way navigation button switch.
SHANPU's SNA1 5-way navigation module switch with common bus terminal pin-out, LED illumination and marking service.
Video
Download
Sample Order
- Module
- Part No
- Description
-
- SNA1AT7552
-
- 5-way navigation button switch
- Panel cutting dia. 34mm
- Black cap with laser arrow and Enter marking
- 5 individual Blue LED tactile switches
- FFC (Flexible Flat Cable) cable
- TWD 800 Out of Stock
-
- SNA1AN3442
-
- 5-way navigation button switch
- Panel cutting dia. 34mm
- White cap with laser arrow and Enter marking
- 5 individual Green LED tactile switches
- FFC (Flexible Flat Cable) cable
-
TWD 760
- +
-

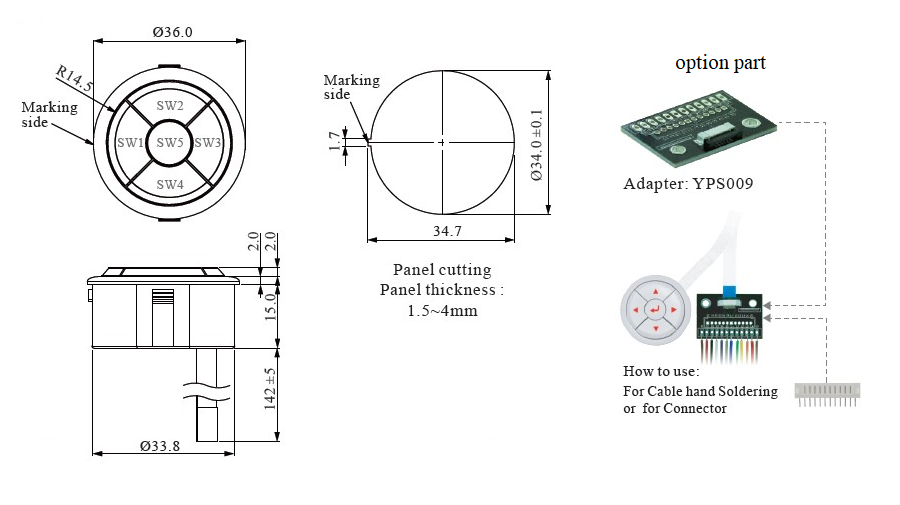

- YPS009
-
- Breakout board for SNA1 navigation switch
- Pitch 0.5mm, 12pins FFC (Flexible Flat Cable) & FPC (Flexible Printed Circuit)
-
TWD 120
- +
