SLD Push Button Switch with Display
- 25mm diameter cut-out
- IP65 dustproof & waterproof
- White LED integrated
- Push button control
- Painted custom
- Application: transportation, maritime industry
- General Specifications
- Circuit/Contacts Rotary encoder and SPST-NO
- Switching rating 5V
- Terminal Connector
- Total travel 0.3mm ± 0.15mm
- Operating force 800 ± 300gf
- Mechanical life Rotary encoder: C.W. 100,000 & C.C.W. 100,000 cycles / Switch: 100,000 cycles
- Front protection IP65
- Illumination White LED backlight
- Materials
- Cap/Lens Lens: Polycarbonate (PC)
- Base/Housing Base: Polycarbonate (PC) / Knob: Polyamide (PA) / Aluminum

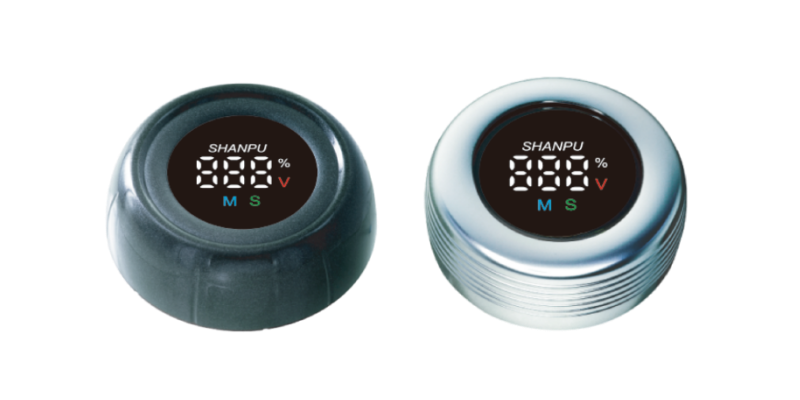

How does the SLD push button switch with 3-digit 8-character display improve usability?
The SHANPU SLD rotary encoder switch integrates a 3-digit 8-character display that provides real-time status feedback, enhancing user interaction for industrial equipment, coffee machines and electronic devices.

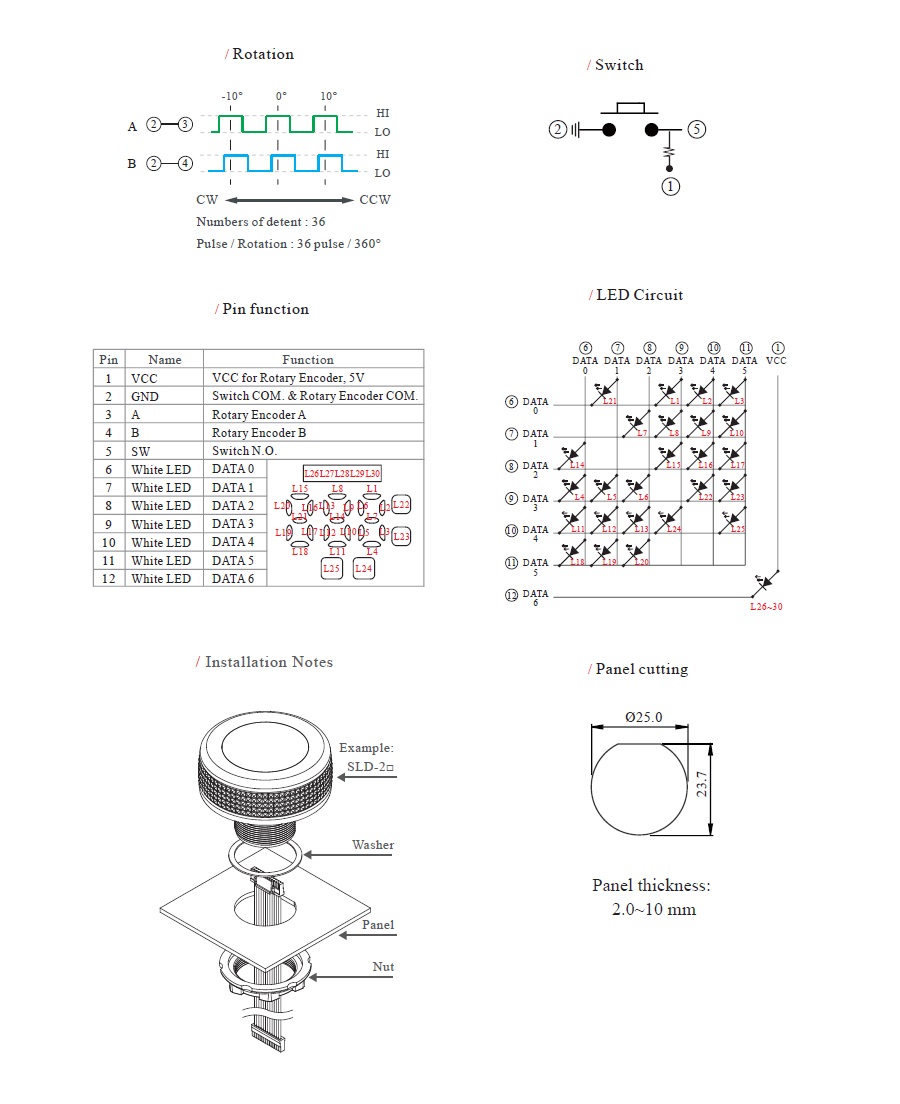

Contact configuration and panel cutting for SLD push button switch with display.
With a 25mm panel cutout, robust IP65 front, LED backlight and multi-function rotary encoder, the SHANPU SLD switch provides durable and responsive control for industrial and home automation systems.
Download
Sample Order
- Module
- Part No
- Description
-
- SLD-PL
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Plastic silver type P knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-P5
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Plastic black type P knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-10
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Aluminum silver type 1 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 1,530
- +
-
- SLD-15
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Aluminum black type 1 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 1,770
- +
-
- SLD-2L
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Plastic silver type 2 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-25
-
- Push button switch with display
- Panel cutting dia. 25.0mm
- Plastic black type 2 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
