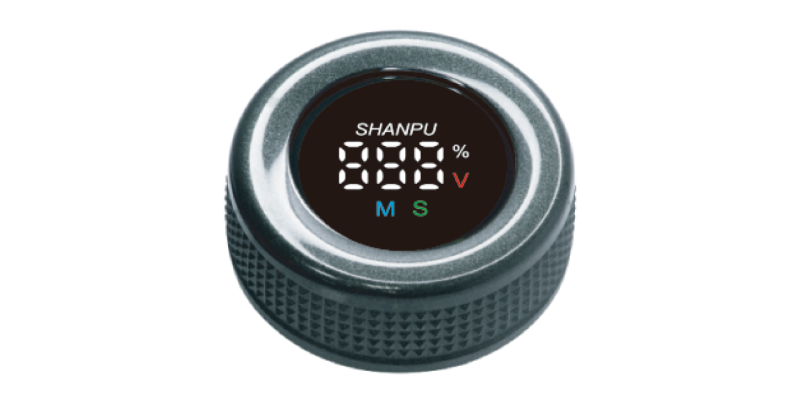

SLD Photo Interrupter Sensor Display Encoder Switch
- Ø25mm panel cut
- IP65 waterproof
- White backlit LED
- Pushbutton feature
- 3-digit, 8-character display
- Application: robot, automation systems
- General Specifications
- Circuit/Contacts Rotary encoder and SPST-NO
- Switching rating 5V
- Terminal Connector
- Total travel 0.3mm ± 0.15mm
- Operating force 800 ± 300gf
- Mechanical life Rotary encoder: C.W. 100,000 & C.C.W. 100,000 cycles; Switch: 100,000 cycles
- Front protection IP65
- Illumination White LED backlight
- Materials
- Cap/Lens Lens: Polycarbonate (PC)
- Base/Housing Base: Polycarbonate (PC); Knob: Polyamide (PA) / Aluminum
What is the light interruption design in the SLD encoder?
The SHANPU SLD encoder features a light interruption design to light-receiving element detects the change in light and generates an electrical signal., ensuring reliable control in electronic devices and industrial equipment.
Contact configuration and panel cutting for SLD photo interrupter sensor display encoder switch.
The SHANPU SLD rotary encoder switch integrates rotary and push button input, backlit display, and robust protection, ideal for smart appliances like ovens, coffee machines and climate control units.
Sample Order
- Module
- Part No
- Description
-
- SLD-PL
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Plastic silver type P knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-P5
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Plastic black type P knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-10
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Aluminum silver type 1 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 1,530
- +
-
- SLD-15
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Aluminum black type 1 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 1,770
- +
-
- SLD-2L
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Plastic silver type 2 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
-
- SLD-25
-
- Photo interrupter sensor display encoder switch
- Panel cutting dia. 25.0mm
- Plastic black type 2 knob
- 3-digit 8-character display
- White LED illuminate
-
TWD 860
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
