SLD
- Function: push button, rotary encoder, digital display.
- Rotary encoder: 36 pulses / 360°.
- IP65 dust and water proof rating.
- Marking service.
- Application: smart home control, coffee machine…
- General Specifications
- Circuit/Contacts Rotary encoder and SPST-NO
- Switching rating 5V
- Terminal Connector
- Total travel 0.3mm±0.15mm
- Operating force 800±300gf
- Mechanical life Rotary encoder: C.W. 100,000 & C.C.W. 100,000 cycles / Switch: 100,000 cycles
- Front protection IP65
- Illumination White LED backlight
- Materials
- Cap/Lens Lens: Polycarbonate (PC)
- Base/Housing Base: Polycarbonate (PC) / Knob: Polyamide(PA)/ Aluminum

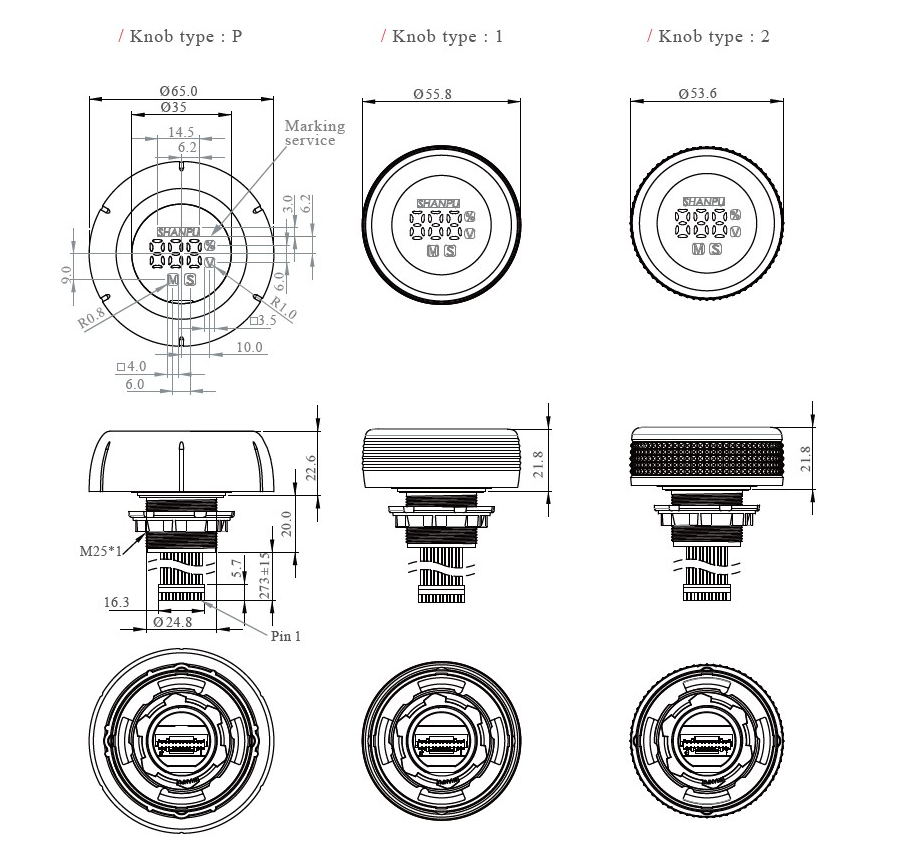

Dimension

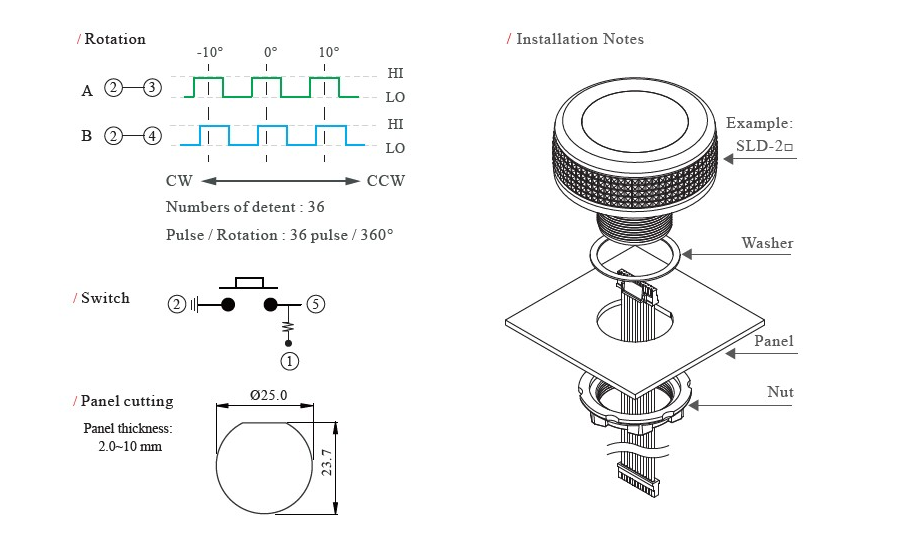

Circuit & Panel cutting & Installation notes

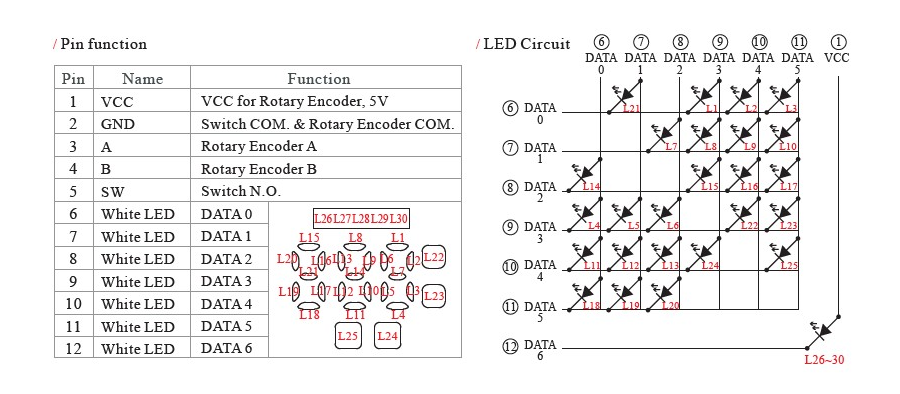

Pin description & Contact configuration
