SLC
- OLED display momentary DIP push button switch
- Silent and smooth tactile feedback
- Reliable operation with long mechanical life
- Through I2C interface control 0.42” OLED
- Application: pro-audio or video, industrial equipment
- General Specifications
- Circuit/Contacts SPST-NO (dual contact point)
- Switching rating 100mA @ 12V DC max
- Terminal Through hole (TH)
- Total travel 4.5mm ± 0.5mm
- Operating force 200gf ± 50gf
- Mechanical life 5,000,000 cycles Min.
- Front protection IP4X
- Illumination OLED display
- Materials
- Cap/Lens ABS / Polycarbonate (PC)
- Stem/Reflector Polyoxymethylene (POM)
- Base/Housing Polyamide (PA)
- Terminal Brass with gold plating
What’s SLC OLED Display DIP Momentary Push Button Switch?
The SLC OLED display momentary push button switch delivers crisp visuals and silent operation. Ideal for broadcast panels, control consoles, and professional industrial applications requiring reliability.
Contact configuration for SLC OLED Display DIP Momentary Push Button Switch

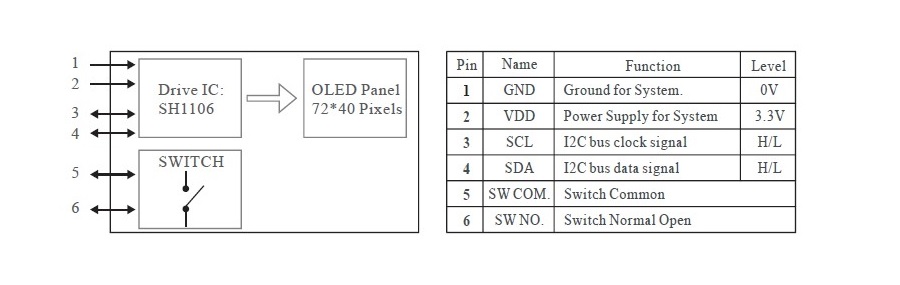

The SLC combines an OLED display with a switch. Four of the pins are OLED, with driver IC SH1106, controlled through I2C interface. The other two pins are switch pins. Please see below diagram.
Dimension & option part adapter PCB for SLC OLED Display DIP Momentary Push Button Switch

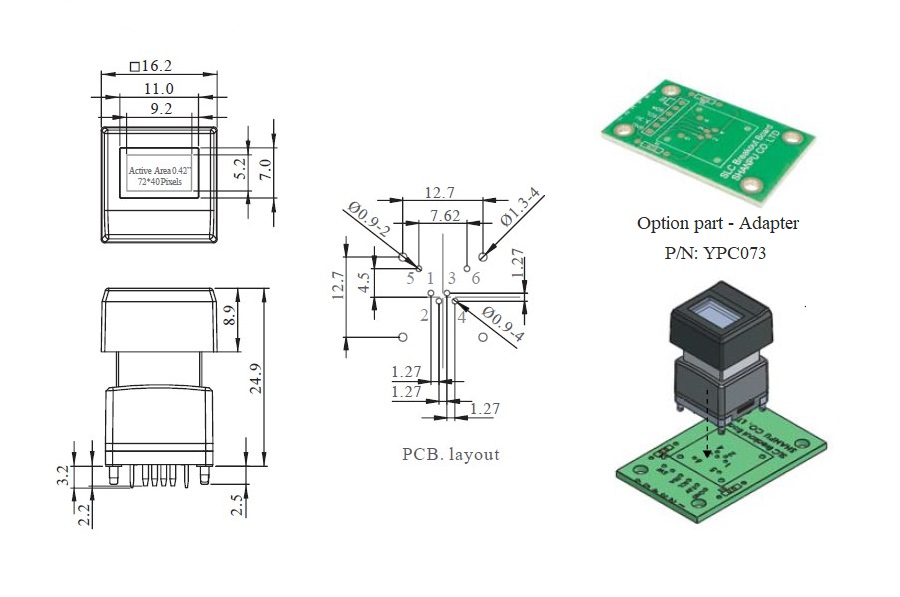

The SLC's OLED display screen is 0.42”, and you can set up simple icons to represent the function of this button. This push button switch is through hole (TH) type, and you can design your own PCB board or purchase the SHANPU YPC073 adapter board. Please see below diagram.
Video
Sample Order
- Module
- Part No
- Description
-
- SLC1TACY5+YPC073
-
- OLED display push button switch
- Silent momentary DIP switch
- 72*40 pixels and 0.42” active area
- Control OLED through I2C interface
- YPC073 adapter breakout board
-
TWD 710
- +
-
- SLC1TACY5
-
- OLED display push button switch
- Silent momentary DIP switch
- 72*40 pixels and 0.42” active area
- Control OLED through I2C interface
-
TWD 620
- +
-
- YPC073
-
- For SLC OLED display push button switch
- Adapter breakout board
- Ready-made PCB board, no need to design it yourself
-
TWD 90
- +
