SLB3

Supports CAN BUS ISO 11898 communication interface
Waterproof, dustproof, IP65
Customizable light colors/icons for various panel designs
LED backlight for clear, easy-to-read indicators
Application: industrial machinery, smart devices, EV charging stations

General Specifications
Circuit/Contacts rotary encoder and SPST-NO
Terminal cable
Operating force Switch: 800gf±300gf; Encoder: 1.5Kgf-cm(Max.)
Mechanical life Switch: 100,000 cycles min.
Front protection IP65
Illumination TFT LCD

Materials
Cap/Lens PA or PC or Aluminum alloy
Base/Housing PC
Terminal cable

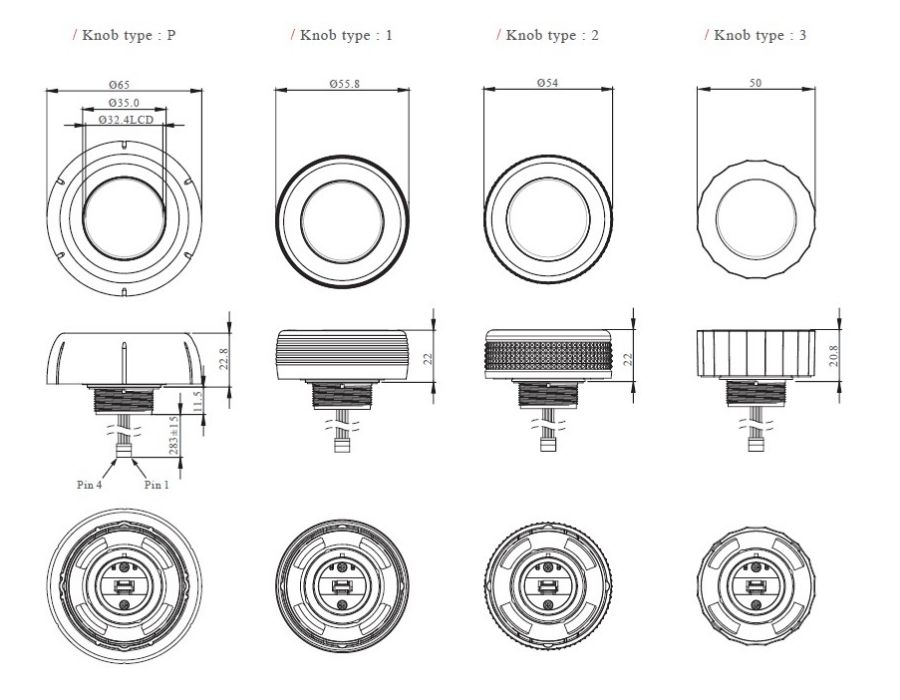

Dimension-Available in a variety of sizes and designs for diverse needs.

waterproof push button switch, Taiwan rotary switch manufacturer.
• Functions: Rotary encoder + push button operation
• Mounting: Modular, panel-mount design

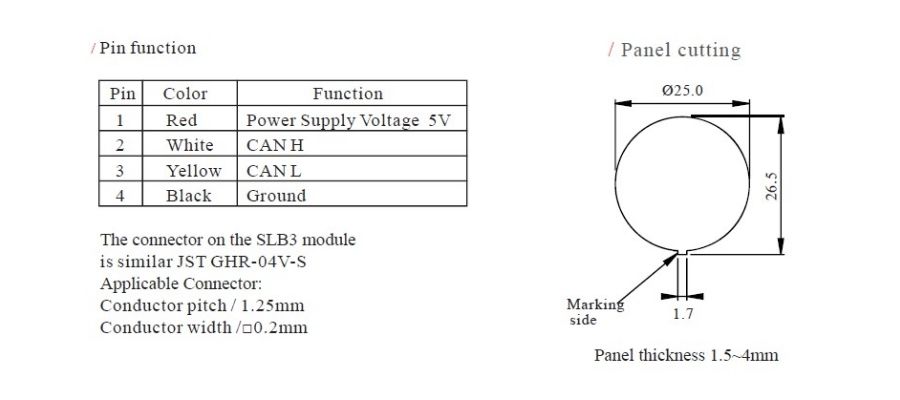

Pin function & Panel cutting

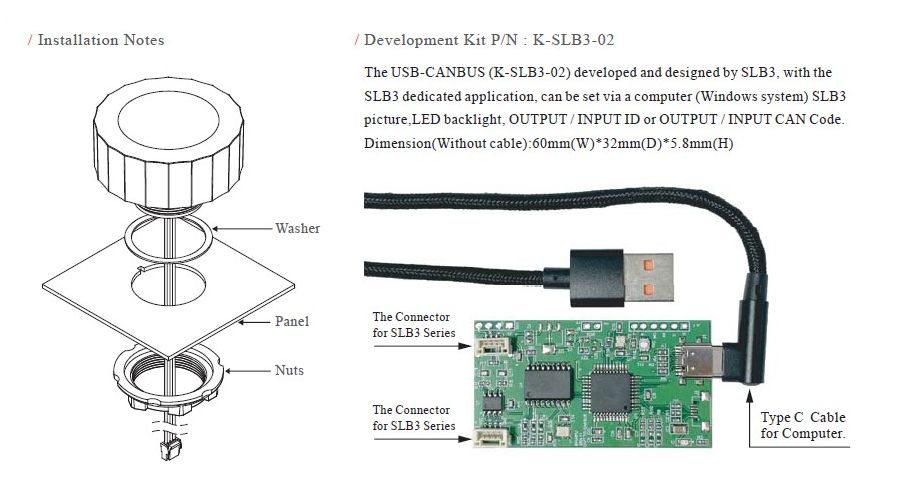

Installation notes & Option part

Video

Download

SLB3 rotary encoder with LCD switch (CAN BUS communication)
