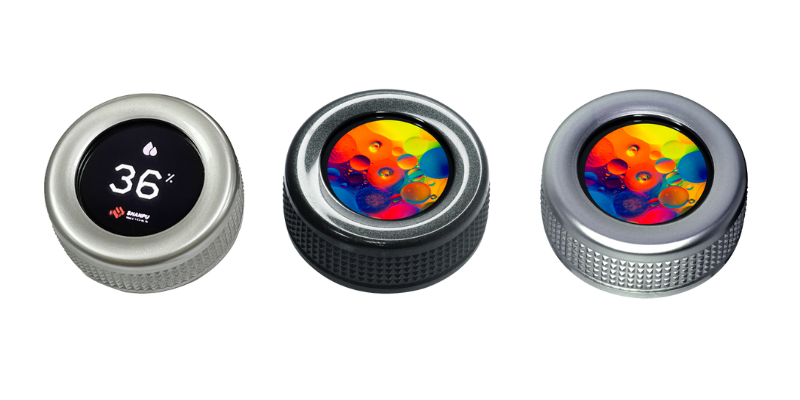

SLB2 Waterproof Rotary Encoder Push Button Switch
- IP65-rated waterproof and dustproof
- White LED backlight for visibility
- Durable materials: PA, PC, Aluminum
- Applications: Perfect for outdoor or industrial environments
- General Specifications
- Circuit/Contacts rotary encoder and SPST-NO
- Switching rating 50mA, 12VDC
- Terminal cable
- Operating force Switch: 800gf±300gf; Encoder: 1.5Kgf-cm(Max.)
- Mechanical life Switch: 100,000 cycles min.
- Front protection IP65
- Illumination TFT LCD
- Materials
- Cap/Lens PA or PC or Aluminum alloy
- Base/Housing PC
- Terminal cable
SLB2 Block Diagram & Panel cutting
Q: Is this switch suitable for outdoor use?
A: Absolutely, it’s IP65-rated for dust and water resistance.
SLB2 Dimension
Knob type : P Ø65.0, H 22.8mm, Plastic Polyamide(PA)
Knob type : 1 Ø55.8, H 22.0mm, Aluminum
Knob type : 2 Ø54, H 22.0mm, Plastic Polyamide(PA)
Knob type : 3 Ø50, H 20.8mm, Plastic Polycarbonate (PC)
SLB2 Option-Development Kit P/N : K-SLB2-01
The SLB2 demo program develop by ESP32 system. ESP32 is an open-source electronic
platform based on easy-to-use hardware and software. Use Arduion-ESP32 IDE, so user can
very easy to use SLB2 through SLB2 development kit from ESP32.
Dimension(Without cable):85mm(W)*50mm(D)*18.5mm(H)
SLB2 Option-Cable P/N : K-SLB-03
The SLB2 series connect to Raspberry Pi. though cable wire
The Connector for SLB2 Series
The Connector for Raspberry Pi Pin header 2.54mm
