SLB2-15_Rotary switch

  • · 1.28" full circle LCD screen, 240(H)RGB*240(V) resolution
  • · High brightness backlight, 400(cd/m2)
  • · PWM Backlight control
  • · 36 Optical rotation pulse come with physical feedback
  • · IP65 dust and water proof rating
  • General Specifications
  • Circuit/Contacts rotary encoder and SPST-NO
  • Switching rating 12VDC 50mA
  • Terminal flying wire
  • Front protection IP65
  • Illumination TFT LCD
  • Materials
  • Cap/Lens PA or Aluminium alloy
  • Base/Housing PC
  • Terminal cable

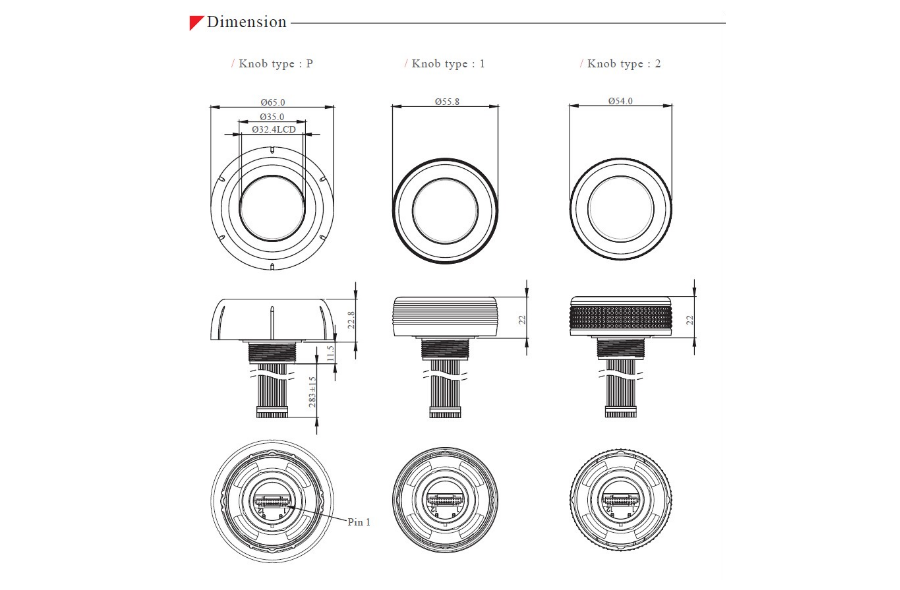

Dimension

Knob size

Video

Download

Sample Order

  • Module
  • Part No
  • Description
  • SLB2-15
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob 1 (aluminum) black
  • TWD 2,900
    - +
  • SLB2-10
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob 1 (Aluminum) Silver
  • TWD 2,800
    - +
  • SLB2-PL
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob P (Plastic) Silver
  • TWD 1,980
    - +
  • SLB2-P5
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob P (Plastic) black
  • TWD 1,980
    - +
  • SLB2-2L
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob 2 (Plastic) Silver
  • TWD 1,980
    - +
  • SLB2-25
    • Backlight White LED
    • 1.28inch Circle TFT
    • Luminance(cd/m2): 400(cd/m2)
    • Driver IC : GC9A01
    • Knob 2 (Plastic) black
  • TWD 1,980
    - +
  • K-SLB-03 Raspberry PI cable
    • Raspberry Pi wire
  • TWD 400
    - +
  • K-SLB2-01
    • The SLB2 demo program develop by ESP32 system. ESP32 is an open-source electronic
    • platform based on easy-to-use hardware and software. Use Arduion-ESP32 IDE, so user can
    • very easy to use SLB2 through SLB2 development kit from ESP32.
    • Dimension(Without cable):85mm(W)*50mm(D)*18.5mm(H)
  • TWD 2,540
    - +
  • D-SLB2-P5-001
    • SLB2 Complete learning set (SLB2-P5 switch*1 + K-SLB2-01*1)
  • TWD 4,600
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtain ISO 14001 certification in 2023.
