SLB2
- Integrated rotary encoder + push button + TFT LCD
- SPI interface for easy system integration
- Compact design for space-saving applications
- Applications: Ideal for HMI, industrial control, and smart devices
- General Specifications
- Circuit/Contacts rotary encoder and SPST-NO
- Switching rating 50mA, 12VDC
- Terminal cable
- Front protection IP65
- Illumination TFT LCD
- Operating force Switch: 800gf±300gf; Encoder: 1.5Kgf-cm(Max.)
- Mechanical life Switch: 100,000 cycles min.
- Materials
- Cap/Lens PA or PC or Aluminum alloy
- Base/Housing PC
- Terminal cable

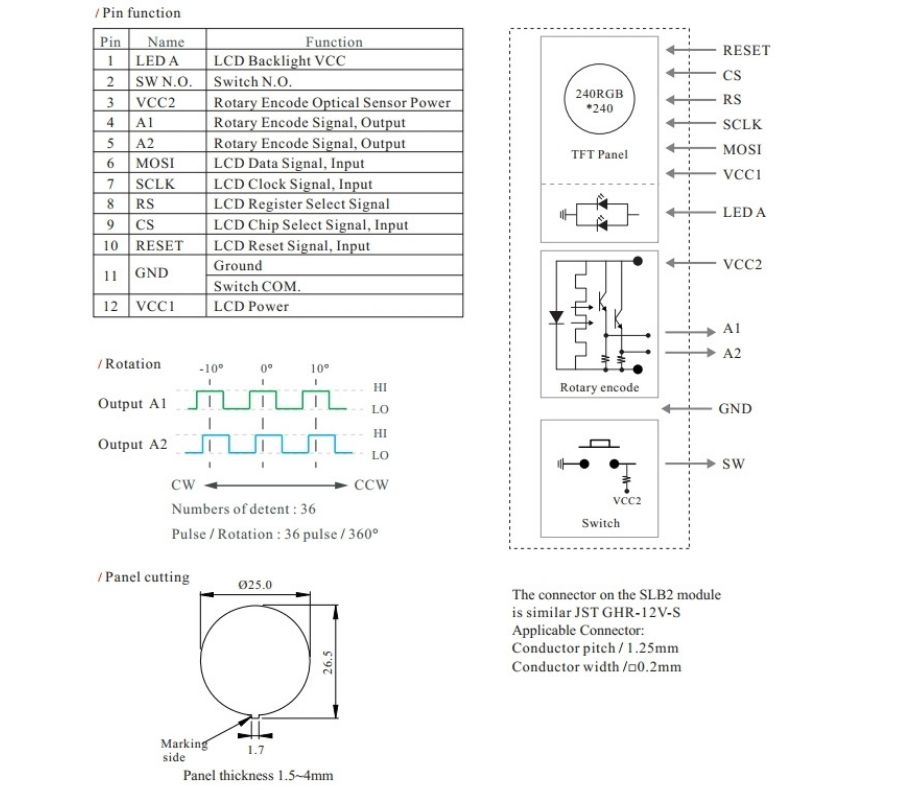

SLB2 Block Diagram & Panel cutting
Q: What makes the SLB2 Series unique?
A: It integrates display, rotary encoder, and push button into one compact HMI module.

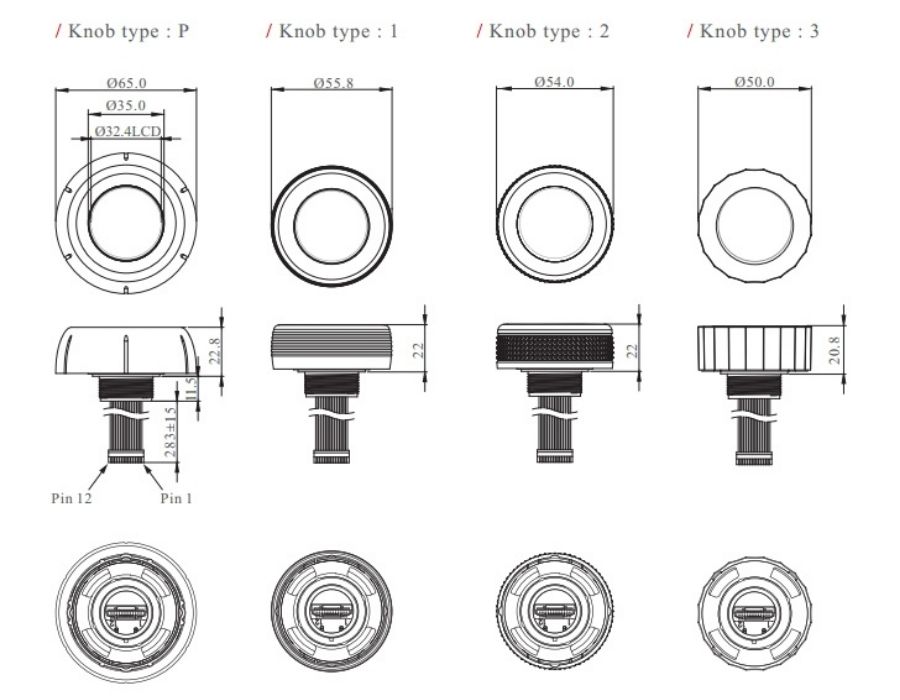

SLB2 Dimension
Knob type : P Ø65.0, H 22.8mm, Plastic Polyamide(PA)
Knob type : 1 Ø55.8, H 22.0mm, Aluminum
Knob type : 2 Ø54, H 22.0mm, Plastic Polyamide(PA)
Knob type : 3 Ø50, H 20.8mm, Plastic Polycarbonate (PC)

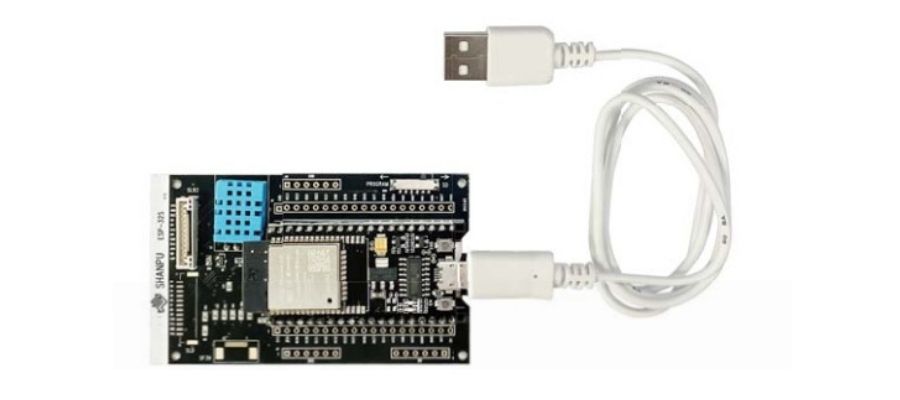

SLB2 Option-Development Kit P/N : K-SLB2-01
The SLB2 demo program develop by ESP32 system. ESP32 is an open-source electronic
platform based on easy-to-use hardware and software. Use Arduion-ESP32 IDE, so user can
very easy to use SLB2 through SLB2 development kit from ESP32.
Dimension(Without cable):85mm(W)*50mm(D)*18.5mm(H)

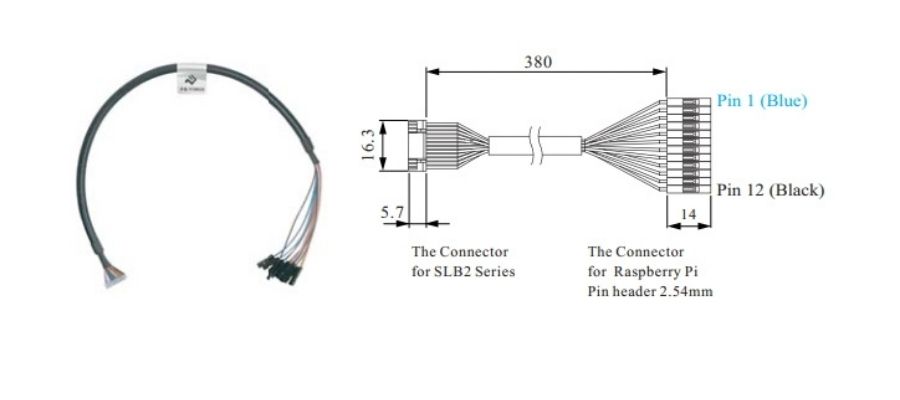

SLB2 Option-Cable P/N : K-SLB-03
The SLB2 series connect to Raspberry Pi. though cable wire
The Connector for SLB2 Series
The Connector for Raspberry Pi Pin header 2.54mm
Video
Download
Sample Order
- Module
- Part No
- Description
-
.png/SLB2-15(800x400)__290x145.png)
- SLB2-15
-
- Backlight White LED
- 1.28inch Circle TFT
- Luminance(cd/m2): 400(cd/m2)
- Driver IC : GC9A01
- Knob 1 (aluminum) black
-
TWD 2,900
- +
-
.png/SLB2-10(800x400)__290x145.png)
- SLB2-10
-
- Backlight White LED
- 1.28inch Circle TFT
- Luminance(cd/m2): 400(cd/m2)
- Driver IC : GC9A01
- Knob 1 (Aluminum) Silver
-
TWD 2,800
- +
-
.png/SLB2-PL(800x400)__290x145.png)
- SLB2-PL
-
- Backlight White LED
- 1.28inch Circle TFT
- Luminance(cd/m2): 400(cd/m2)
- Driver IC : GC9A01
- Knob P (Plastic) Silver
-
TWD 1,800
- +
-
.png/SLB2-P5(800x400)__290x145.png)
- SLB2-P5
-
- Backlight White LED
- 1.28inch Circle TFT
- Luminance(cd/m2): 400(cd/m2)
- Driver IC : GC9A01
- Knob P (Plastic) black
-
TWD 1,800
- +
-
.png/SLB2-2L(800x400)__290x145.png)
- SLB2-2L
-
- Backlight White LED
- 1.28inch Circle TFT
- Luminance(cd/m2): 400(cd/m2)
- Driver IC : GC9A01
- Knob 2 (Plastic) Silver
-
TWD 1,800
- +
-
.png/SLB2-25(800x400)__290x145.png)
- SLB2-25
-
- LCD display rotary encoder switch
- 1.28 inch Circle TFT
- Luminance: 400(cd/m2)
- Driver IC : GC9A01
- Knob 2 (Plastic) Black
-
TWD 1,800
- +
-
- SLB2-3T
-
- LCD display rotary encoder switch
- 1.28 inch Circle TFT
- Luminance: 400(cd/m2)
- Driver IC: GC9A01
- Knob 3 (Plastic) Transparent
-
TWD 1,680
- +
-
- K-SLB-03
-
- Raspberry Pi wire
-
TWD 500
- +
-
- K-SLB2-01
-
- The SLB2 demo program develop by ESP32 system. ESP32 is an open-source electronic
- platform based on easy-to-use hardware and software. Use Arduion-ESP32 IDE, so user can
- very easy to use SLB2 through SLB2 development kit from ESP32.
- Dimension(Without cable):85mm(W)*50mm(D)*18.5mm(H)
-
TWD 2,540
- +
