SFC
- Add a physical knob to the touch screen
- Just paste no drilling required
- Easy installation and maintenance
- Available with or without detent feedback
- Application: automated control, transportation
- Materials
- Base/Housing Base: Polyoxymethylen (POM)
- Cap/Lens Cap and Knob: Polyamide (PA)
What’s SFC Touch Screen Knob?

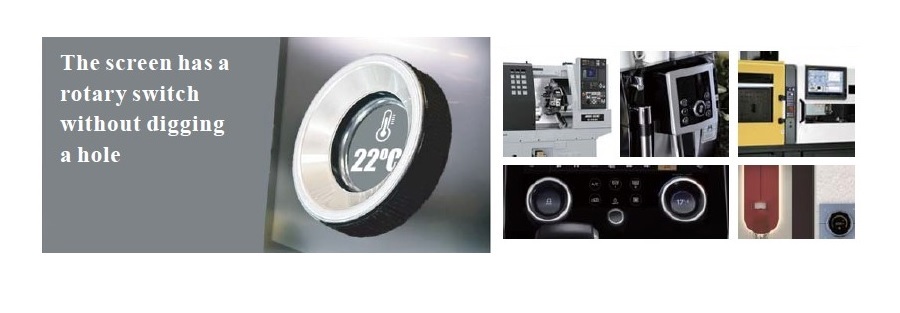

SHANPU’s SFC is an innovative rotary control designed for modern panels. Built from durable PA and POM materials, it withstands -40°C to +85°C. The knob integrates tactile rotation with touchscreen input, available with or without detent feedback, offering intuitive and precise control. With adhesive mounting, no hole cutting is required, ensuring easy installation. Its patented design is widely applied in automated control, CNC machine tools, studio and broadcast equipment, industrial systems, and transportation interfaces.

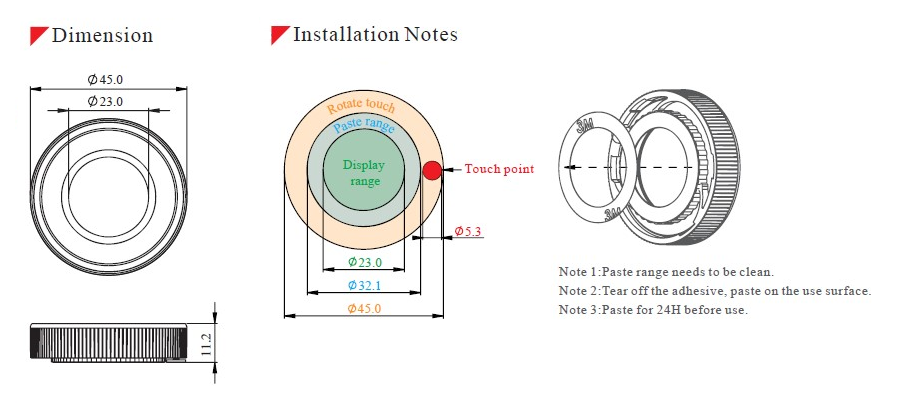

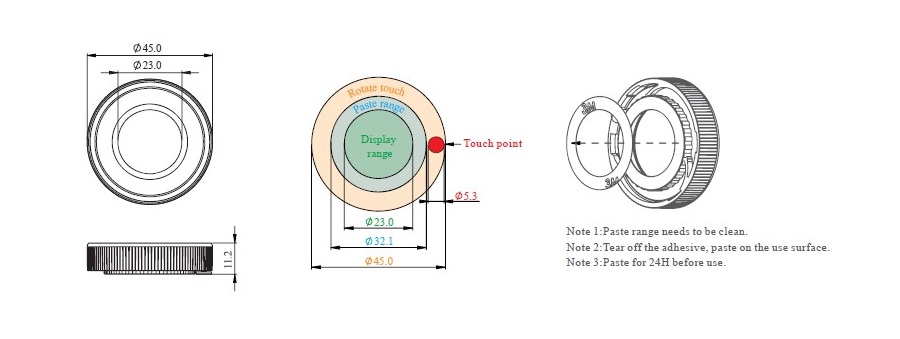

Dimension & installation notes for SFC Touch Screen Knob
The outer diameter of the SFC is 45mm, the inner diameter is 23mm, and the center is hollowed out to display the function icon or value of the touch panel.
Video
Sample Order
- Module
- Part No
- Description
-
- SFCAL
-
- Touch Screen Knob
- Black knob & Silver cap
- Tactile feedback
-
TWD 165
- +
-
- SFCBL
-
- Touch Screen Knob
- Black knob & Silver cap
- No tactile feedback
-
TWD 165
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
