SFB
- Infrared non-contact wall switch
- Sensing distance and start time can be adjusted
- Reduce germ contact and infection
- Compatible with US size cover
- Lens customized marking service
- Application: store doors, office entrances, hospital entrances
- General Specifications
- Circuit/Contacts SPDT
- Switching rating 1A @ 30VDC; 0.3A @ 125VAC
- Total travel Non-contact infrared IR sensor
- Operating force Non-contact
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Base/Housing PC (Polycarbonate)
What makes SFB infrared sensor switch safer for public entrances?
SHANPU’s SFB infrared non-contact switch minimizes cross-contamination, provides adjustable sensing range, supports US wall plates, and offers customizable lens markings for clear use.

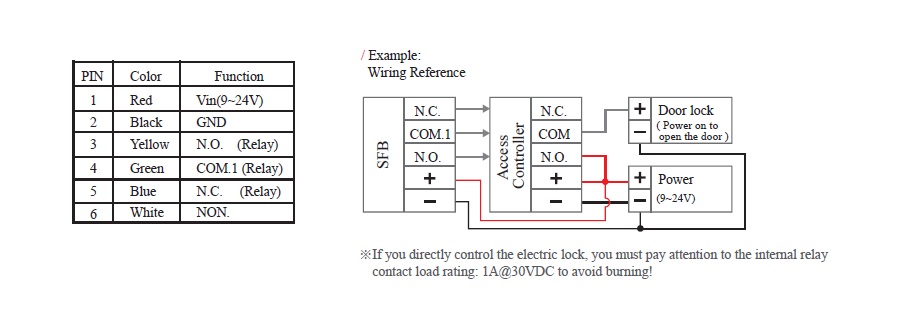

Contact configuration for SFB infrared sensor switch.
The SFB door switch offers adjustable sensing distance, touch-free operation, and reduces bacterial infection risk, ensuring hygiene and safe access for retail door entry.
Download
Sample Order
- Module
- Part No
- Description
-
- SFB13A1A4
-
- Infrared non-contact wall switch
- Sensing distance and start time can be adjusted
- Reduce germ contact and infection
- Compatible with US size cover
- IC light can customized full color
- Lens customized marking service
-
TWD 1,390
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
