SF66BD
- IP65 waterproof emergency-stop switch with buzzer
- Anti-accidental touch design
- Bright LED signals improve safety alerts
- Clear visual and audible warning system
- Application: industrial control, automation equipment
- General Specifications
- Circuit/Contacts DPDT-NC
- Terminal Connector
- Front protection Front panel IP65
- Illumination illumination
- Switching rating 0.75A @ 250V AC or 1A @ 30V DC
- Total travel Max. 4.5mm
- Operating force Push to lock: 1100 gf; Pull to reset: 900 gf; Turn to reset: 1700 gf-cm
- Mechanical life 100,000 cycles Min.
- Sound pressure level 80dB(A) ± 10%
- Materials
- Cap/Lens Polycarbonate (PC)
- Base/Housing Polycarbonate (PC)
- Terminal Brass with plating

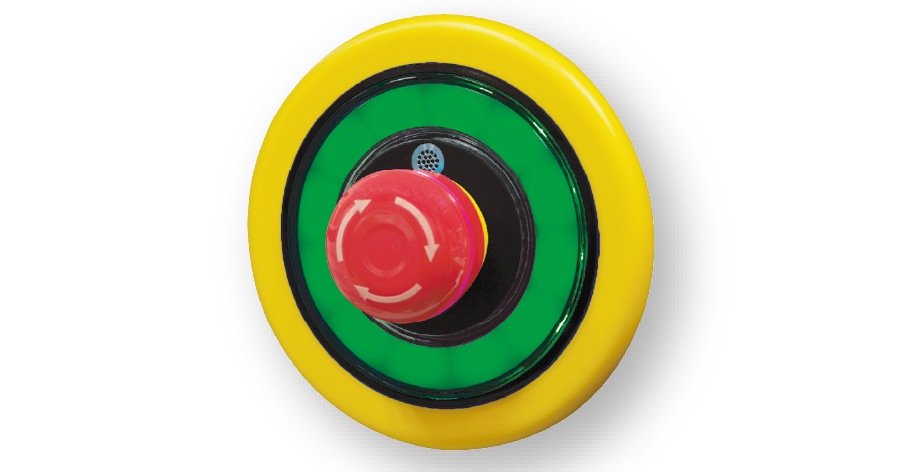

What’s SF66BD Emergency Stop Switch with Ring Lighting and Buzzer?
SHANPU’s SF66BD emergency stop switch combines RGB LED illumination, 80dB buzzer alarm, and IP65 front panel protection. Designed for CNC machines, industrial equipment, and medical systems, it ensures reliable safety with push-to-lock and reset functions.

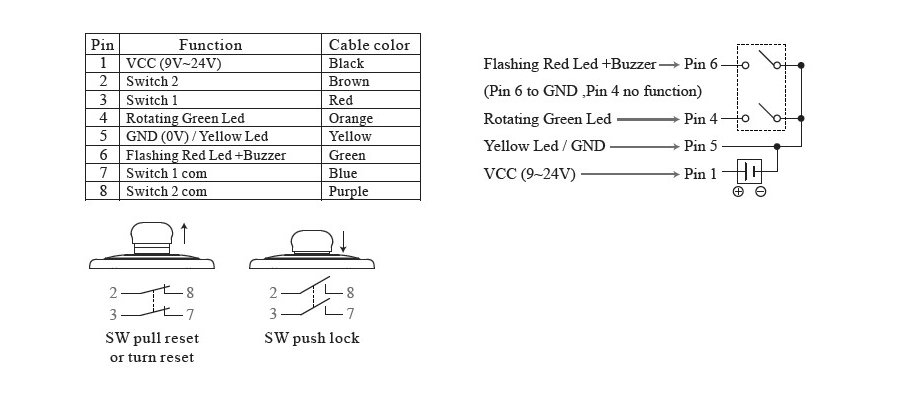

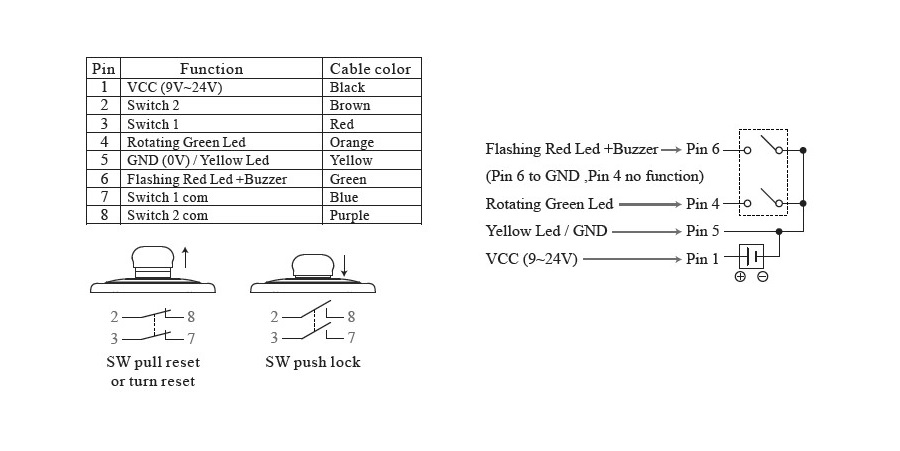

Configuration for SF66BD Emergency Stop Switch with Ring Lighting and Buzzer
SF66BD E-stop switch with buzzer alarm has wires coming out directly from the bottom, total have 8 pins, please follow below diagram to connect and set your device.

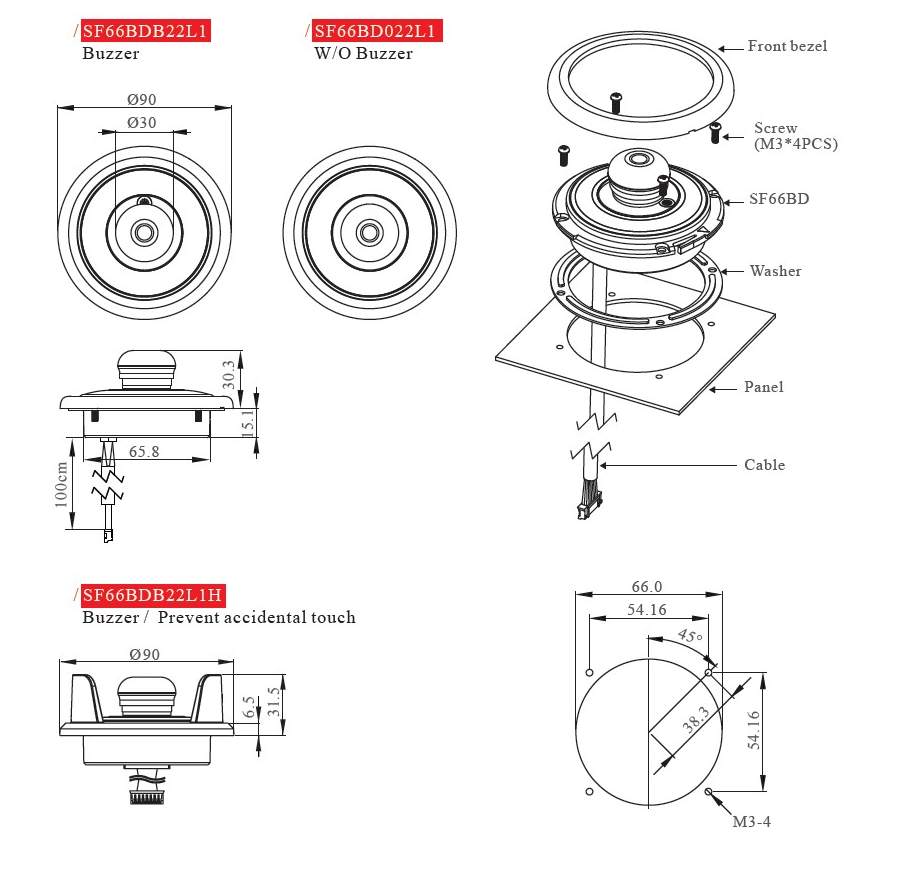

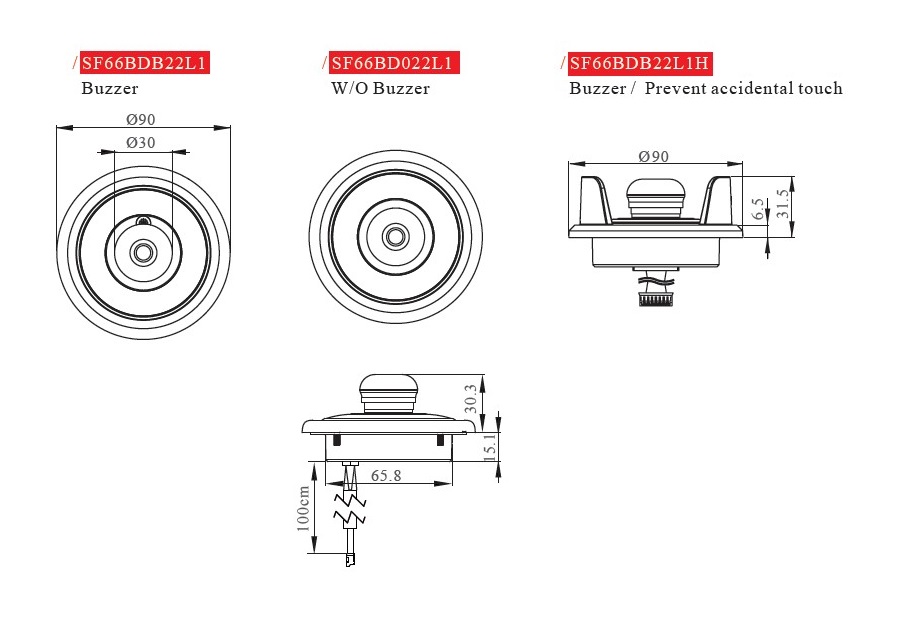

Dimension for SF66BD Emergency Stop Switch with Ring Lighting and Buzzer
The hole diameter for installing SF66BD is 66mm, its outer diameter is 90mm, models with and without buzzer are the same size. There is also a style with an prevent accidental touch frame.

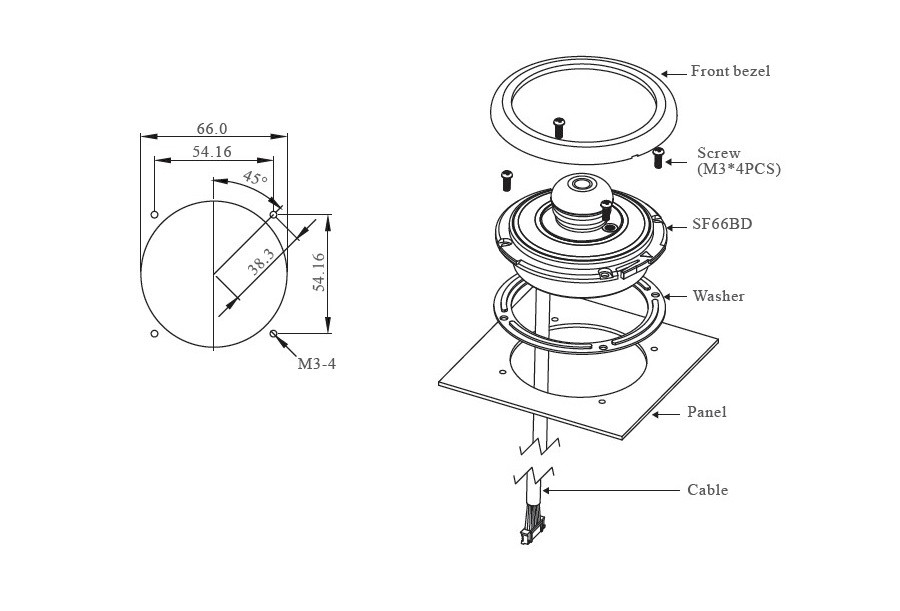

Panel cutting & installation notes for SF66BD Emergency Stop Switch with Ring Lighting and Buzzer
SF66BD is an IP65 emergency stop switch with ring lighting and buzzer alarm, the panel cutting dia. 66mm, please follow below diagram to install.
Sample Order
- Module
- Part No
- Description
-
- SF66BDB22L1H
-
- Emergency E-stop switch+Buzze+Warning Light 3 in 1
- Panel mounting
- IP65 water-proof
- with Protective (Anti-Mistaken Touch) frame
-
TWD 2,600
- +
-
- SF66BDB22L1
-
- Emergency E-stop switch+Buzze+Warning Light 3 in 1
- Panel mounting
- IP65 water-proof
-
TWD 2,600
- +
-
- SF66BD022L1
-
- Emergency E-stop switch+Warning Light 2 in 1
- Panel mounting
- IP65 water-proof
-
TWD 2,460
- +
-
- YCA1722
-
- Protective (Anti-Mistaken Touch) frame for SF66BD 3 in 1 E-stop switch
-
TWD 300
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
