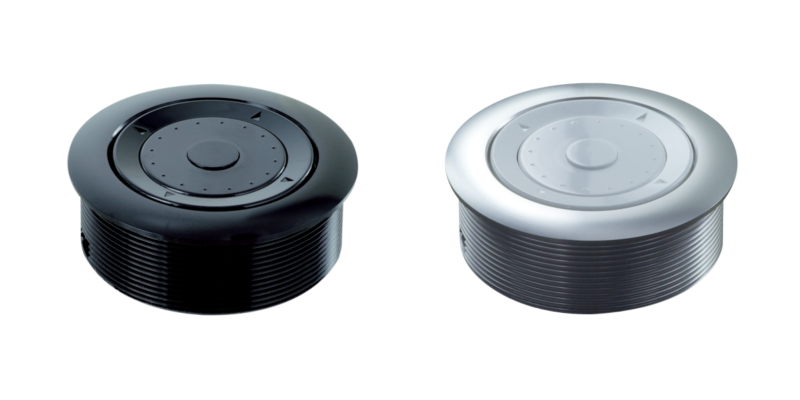

SF42EA Rotary Encoder Push Button Switch
- 42.0 mm panel cut-out diameter
- Quick terminal connector installation
- 5 keys push button Switch, tactile feedback
- Aluminum alloy body
- Application: speed control and electronic devices
- General Specifications
- Circuit/Contacts SP5T momentary + rotary encoder
- Switching rating 1mA @ 10V DC
- Terminal Connector
- Operating force Rotation Max. 60gf-cm; push switch Max. 300gf
- Mechanical life Rotation 2,000,000 operations; Center push 1,000,000 cycle
- Illumination non-Illumination
- Materials
- Cap/Lens PC (Polycarbonate)
- Base/Housing Base: PC; Housing: Aluminum
- Terminal Brass
Why is SF42EA rotary encoder push button switch widely adopted in electronics?
Its beautiful appearance, aluminum alloy housing, and plug-and-play terminals enable the SF42EA switch to support electronic devices requiring stability, precision, and space efficiency.
Contact configuration and panel cutting for SF42EA rotary encoder push button switch.
The SF42EA with tool-free connector assembly and a standardized 42mm cutout, SF42EA switch simplifies installation across automation devices, broadcast systems and catering machines.
Sample Order
- Module
- Part No
- Description
-
- SF42EA40
-
- Rotary encoder push button switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Silver housing
- White cap and knob
-
TWD 1,390
- +
-
- SF42EA40 + YCW015
-
- Rotary encoder push button switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Silver housing
- White cap and knob
- YCW015 wire, 8 line, 26AWG, L=30cm
-
TWD 1,490
- +
-
- SF42EA55
-
- Rotary encoder push button switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Black housing
- Black cap and knob
-
TWD 1,390
- +
-
- SF42EA55 + YCW015
-
- Rotary encoder push button switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Black housing
- Black cap and knob
- YCW015 wire, 8 line, 26AWG, L=30cm
-
TWD 1,490
- +
-
- YCW015
-
- Cable for SF42EA rotary encoder push button switch
- Wire pitch 2.0mm, 8 line, 26AWG, L=30cm
-
TWD 100
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
