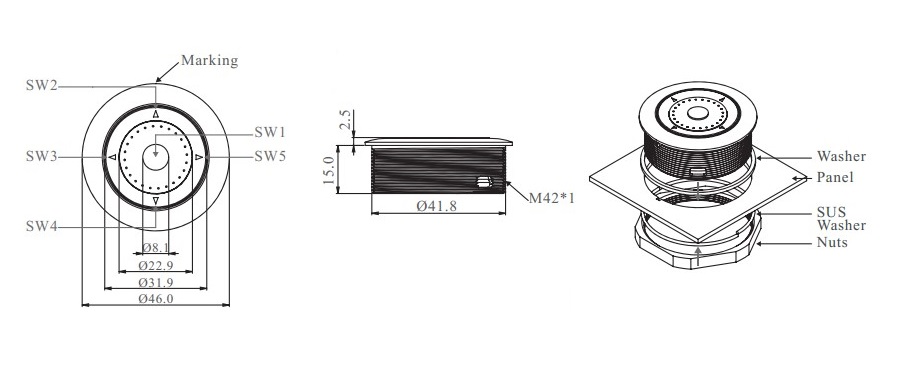

SF42EA
- Panel cutting dia. 42.0mm
- Quick-connect terminal design
- 5-way navigation switch with tactile momentary function.
- Aluminum alloy housing
- Application: home automation, automated control
- General Specifications
- Circuit/Contacts SP5T momentary + rotary encoder
- Switching rating 1mA @ 10V DC
- Terminal Connector
- Operating force Rotation Max. 60gf-cm; push switch Max. 300gf
- Mechanical life Rotation 2,000,000 operations; Center push 1,000,000 cycle
- Illumination non-illumination
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector -
- Base/Housing PC / Aluminum
- Terminal Brass

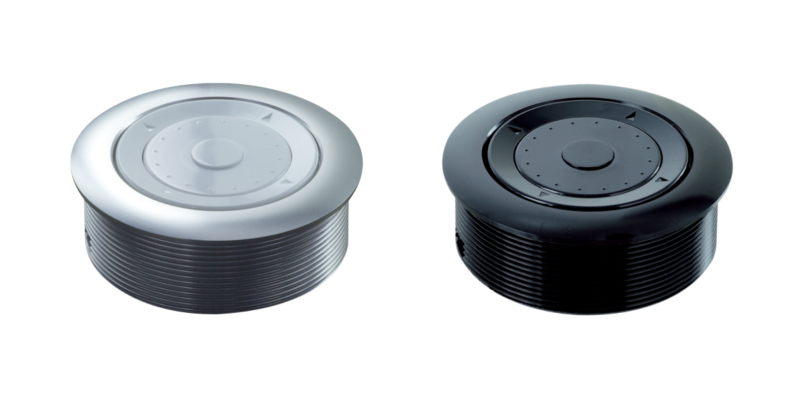

Why is SHANPU SF42EA rotary encoder switch efficient in automated control systems?
Its quick-assembly terminals and slim profile streamline integration, making SF42EA rotary encoder switch a trusted solution for automated control in homes, studios, and industrial electronics.

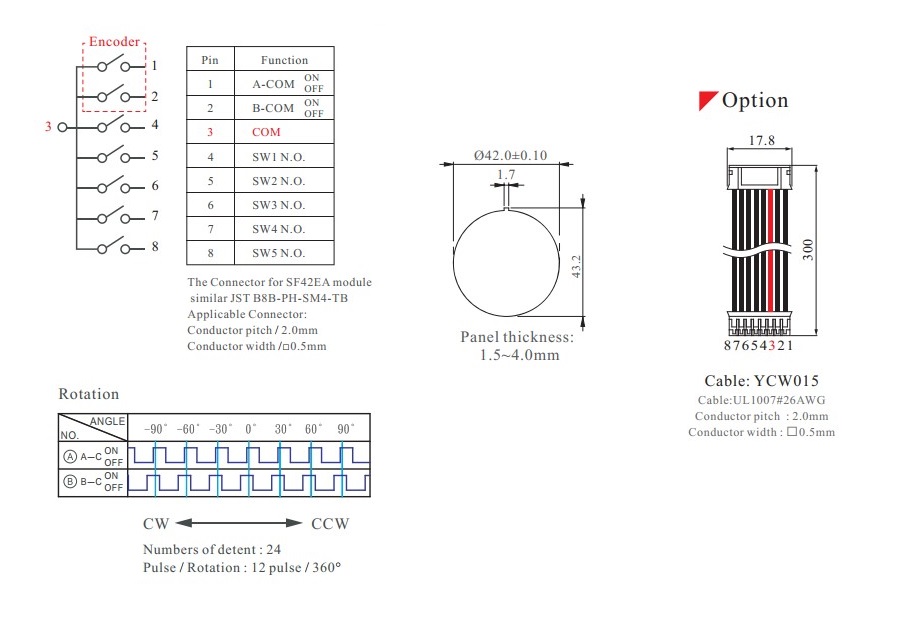

Contact configuration and panel cutting for SF42EA rotary encoder push button switch.
The SF42EA with tool-free connector assembly and a standardized 42mm cutout, SF42EA switch simplifies installation across automation devices, broadcast systems and catering machines.
Sample Order
- Module
- Part No
- Description
-
- SF42EA40
-
- Rotary encoder switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Silver housing
- White cap and knob
-
TWD 1,390
- +
-
- SF42EA40 + YCW015
-
- Rotary encoder switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Silver housing
- White cap and knob
- YCW015 wire, 8 line, 26AWG, L=30cm
-
TWD 1,490
- +
-
- SF42EA55
-
- Rotary encoder switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Black housing
- Black cap and knob
-
TWD 1,390
- +
-
- SF42EA55 + YCW015
-
- Rotary encoder switch
- Panel cutting dia. 42.0mm
- 5 way tactile function
- Black housing
- Black cap and knob
- YCW015 wire, 8 line, 26AWG, L=30cm
-
TWD 1,490
- +
-
- YCW015
-
- Cable for SF42EA rotary encoder switch
- Wire pitch 2.0mm, 8 line, 26AWG, L=30cm
-
TWD 100
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
