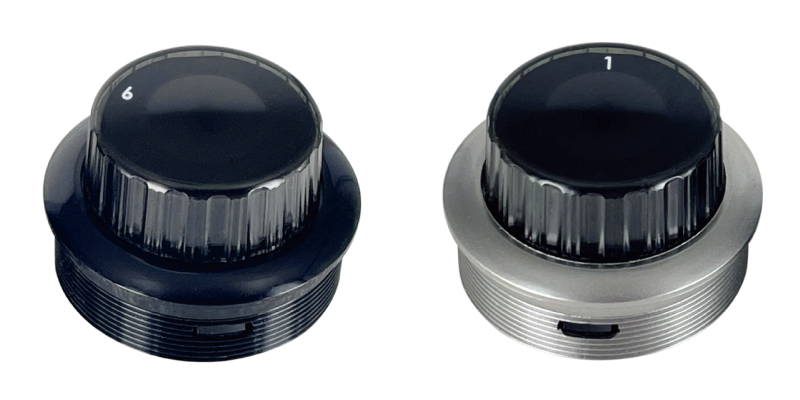

SF39EC
- Panel cutting dia. 39.0mm
- Bright white LED illumination
- Tactile feedback on press
- Easy-to-mount
- Application: home automation, automated control
- General Specifications
- Switching rating 50mA@12VDC
- Operating force Rotary: 1kgf-cm(Max.) / Tactile switch: 380gf±150gf
- Mechanical life Rotary: 20,000 cycles min. / Tactile switch: 200,000 cycles min.
- Circuit/Contacts Rotary: SP6T / Tactile switch: SPST
- Terminal Connector
- Total travel 0.15mm±0.1mm
- Illumination White LED
- Materials
- Cap/Lens Polycarbonate (PC)
- Base/Housing Base: Polyamide(PA) / Housing: Polyamide(PA-Silver); Polycarbonate (PC-Black)

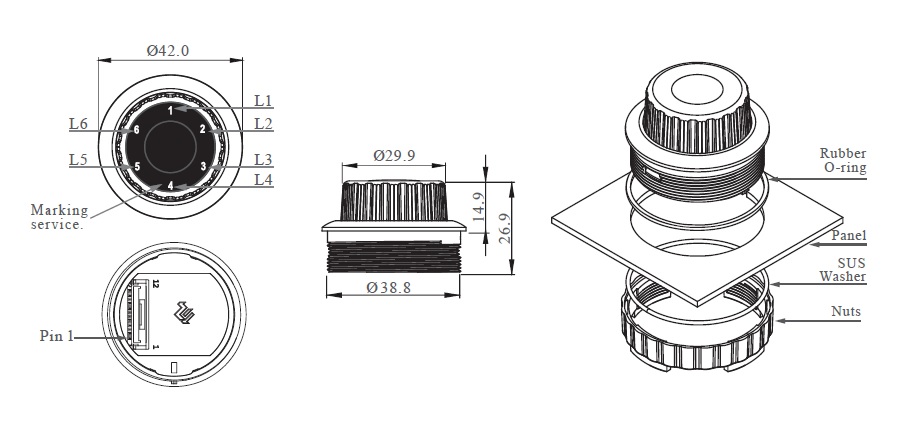

How easy is it to install the SHANPU SF39EC rotary switches?
Designed for Ø39mm cut-outs, the SF39EC rotary switch enables quick mounting, ideal for global applications in automation control, security systems, studio equipment and catering systems.

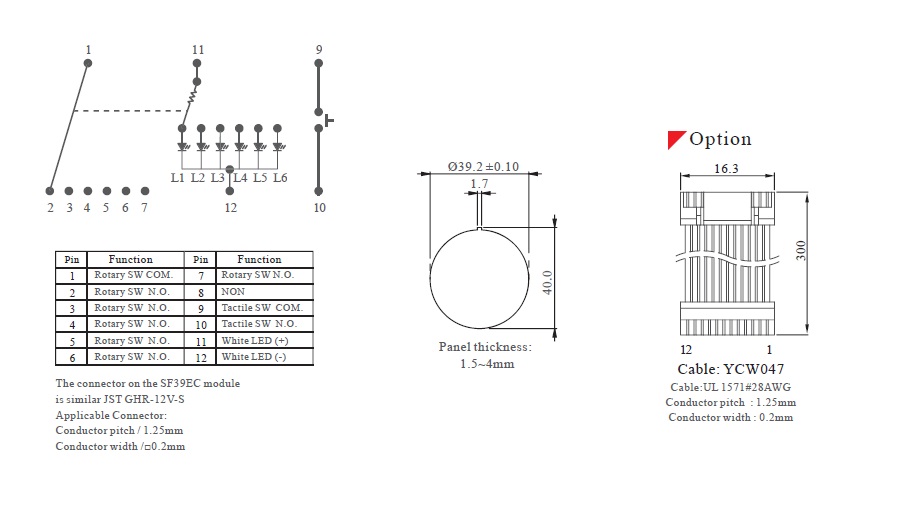

Contact configuration and panel cutting for SF39EC rotary switch.
SF39EC tactile feedback and LED clarity make it simple for everyday use in catering equipment, ice cream machines, home automation, and studio devices.
Download
Sample Order
- Module
- Part No
- Description
-
- SF39EC4L111
-
- Rotary & tactile switch
- Panel cutting dia. 39.0mm
- Silver housing
- White LED
- Easy to install
-
TWD 600
- +
-
- SF39EC4L111 + YCW047
-
- Rotary & tactile switch
- Panel cutting dia. 39.0mm
- Silver housing
- White LED
- Easy to install
- YCW047 wire, 12 line, 28AWG, L=30cm
-
TWD 720
- +
-
- SF39EC4B111
-
- Rotary & tactile switch
- Panel cutting dia. 39.0mm
- Black housing
- White LED
- Easy to install
-
TWD 600
- +
-
- SF39EC4B111 + YCW047
-
- Rotary & tactile switch
- Panel cutting dia. 39.0mm
- Black housing
- White LED
- Easy to install
- YCW047 wire, 12 line, 28AWG, L=30cm
-
TWD 720
- +
-
- YCW047
-
- Cable for SF39EC rotary & tactile switch
- Wire pitch 1.25mm,12 line, 28AWG, L=30cm
-
TWD 120
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
