SF39EB Rotary Encoder Push Button Switch
- Convex rotation knob
- Aluminum alloy housing
- Central marking can be customized
- "Simple is more" module design
- Application: smart home, instrument
- General Specifications
- Circuit/Contacts Rotation + SPST-NO Momentary (push)
- Switching rating 1mA @ 10V DC
- Terminal Connector
- Operating force Rotation: Max. 60gf-cm; Center push: Max. 220gf ± 50gf
- Mechanical life Rotation: Min. 200,000 operations; Center push: 1,000,000 cycle
- Illumination White LED, Blue LED
- Materials
- Cap/Lens Rotary knob: Polyamide (PA); Center cap: Polycarbonate (PC)
- Base/Housing Housing: Aluminum
- Terminal Brass with Tin plating
What’s SF39EB Rotary Encoder Push Button Switch?

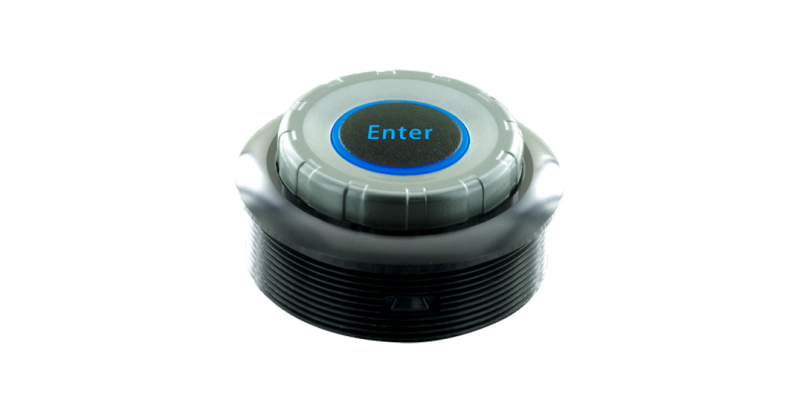

SHANPU’s SF39EB is illuminated push button with convex rotary encoder, smoothly operate, durable aluminum housing, panel cutting a hole, plug wire into connector, easy installation. It allows customize marking on the center switch.
Configuration for SF39EB Rotary Encoder Push Button Switch

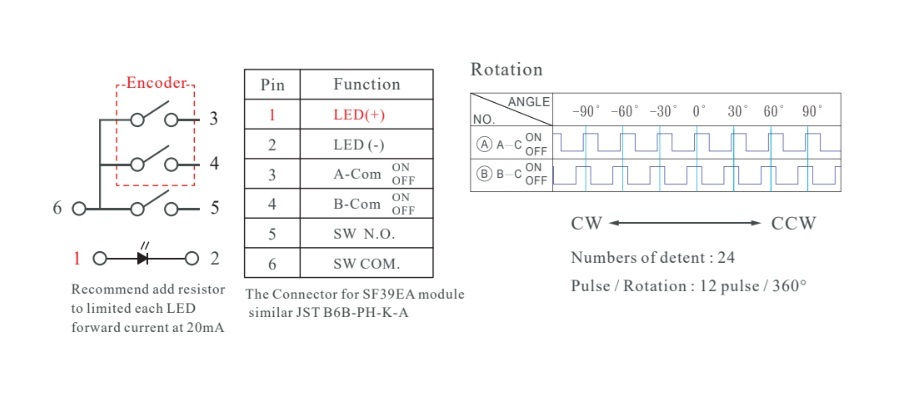

SF39EB total have 6 pins, 1 & 2 are switch, 3 & 4 & 6 are encoder, 5 & 6 are push button switch. Incremental encoder has two output signals, A and B, which issue pulses when the device is moved.

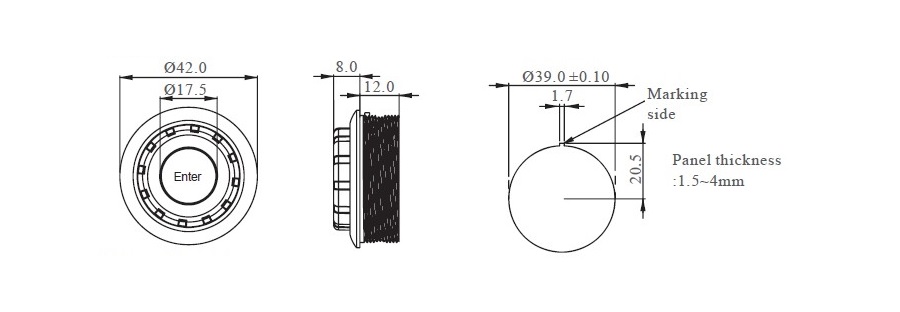

Dimension & panel cutting for SF39EB Rotary Encoder Push Button Switch
The modular design combines a convex rotary encoder with a push button switch, increased durability and ease of installation.
Installation notes & option part - cable for SF39EB Rotary Encoder Push Button Switch

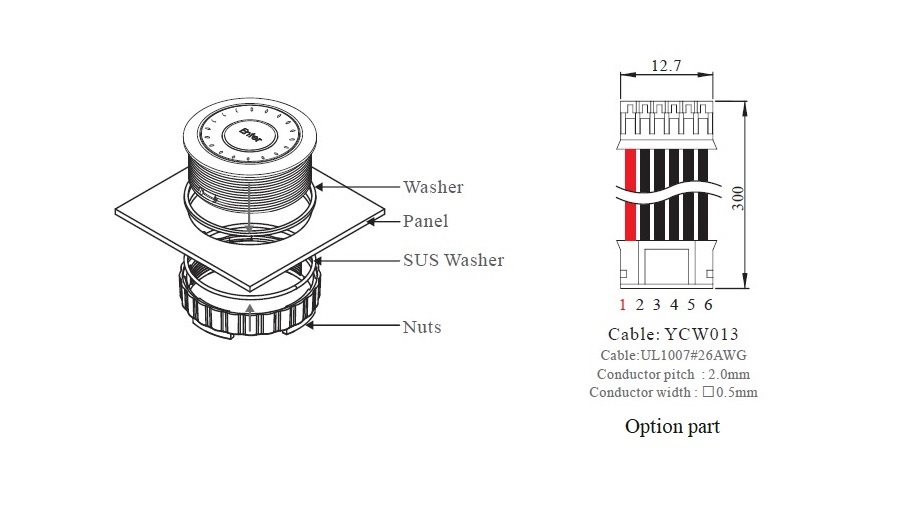

The panel thickness of device is during 1.5mm to 4mm, and cutting dia. 39mm±0.1, put into and tighten it with a nut. Use cable plug into connector and device.
