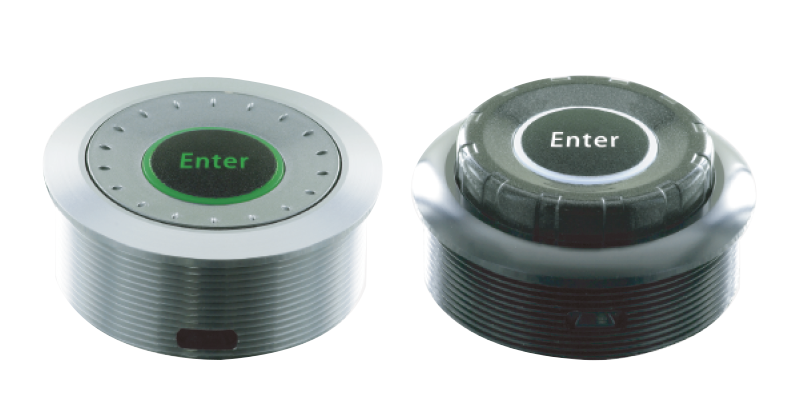

SF39EB

  • Panel mounting cutting dia. 39.0mm
  • Aluminum alloy housing
  • Flat rotation knob
  • "Simple is more" module design
  • General Specifications
  • Circuit/Contacts Rotation + SPST Momentary (push)
  • Switching rating 1mA @ 10V DC
  • Terminal Connector
  • Total travel 0.5mm±0.3mm
  • Operating force Rotation 60gf-cm, Center push 220gf±50gf
  • Mechanical life Rotation 200,000 operations, Center push 1,000,000 cycle
  • Front protection IP4X
  • Illumination circular illuminativepervious to light
  • Materials
  • Cap/Lens Rotary knob PA(Polyamide);center cap PC(Polycarbonate)
  • Stem/Reflector -
  • Base/Housing Aluminum
  • Terminal Brass with plating

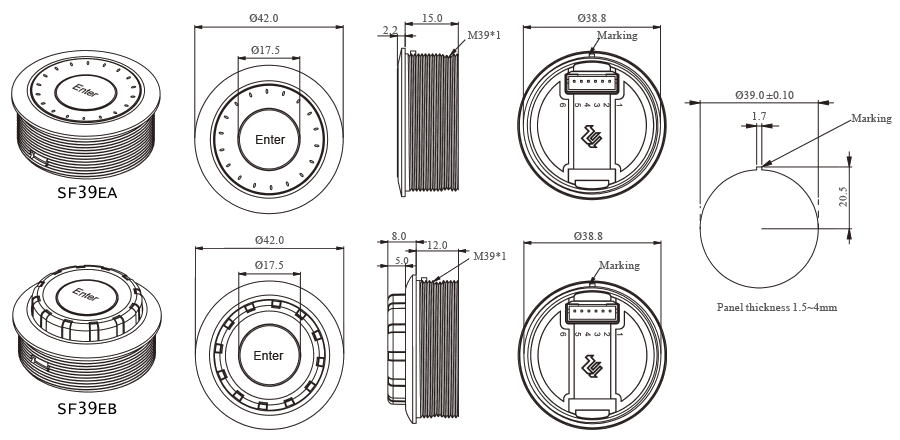

Diagram

Download

Sample Order

  • Module
  • Part No
  • Description
  • SF39EB7551A+YCW013
    • cylinder silver encoder rotation knob
    • Center Blue lighting push button black cap with marking "Enter"
    • Aluminum alloy black housing
    • Panel mounting, cut hole dia.39mm
    • YCW013 wire length 300mm
  • TWD 1,060
    - +
  • SF39EB7551A
    • cylinder silver rotation knob
    • Blue LED backlight
    • Center push button with black cap laser engrave "Enter"
    • Aluminum alloy Black housing
    • Panel mounting, cut hole dia.39mm
    • not include wire YCW013
  • TWD 960
    - +
  • SF39EB4551B+YCW013
    • cylinder black encoder rotation knob
    • Center white lighting push button black cap with marking "Enter"
    • Aluminum alloy black housing
    • Panel mounting, cut hole dia.39mm
    • YCW013 wire length 300mm
  • TWD 1,060
    - +
  • SF39EB4551B
    • cylinder black rotation knob
    • White LED backlight
    • Center push button with black cap laser engrave "Enter"
    • Aluminum alloy Black housing
    • Panel mounting, cut hole dia.39mm
    • not include wire YCW013
  • TWD 960
    - +
  • YCW013_SF39EB wire
    • wire for SF39EB incremental rotary encoder with push button switch
    • 6 pins, length 300mm
    • Female connector on the end
  • TWD 100
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
