SF39EA
- Rotary Encoder Push Button Switch
- Flat rotation knob and aluminum alloy housing
- Central marking can be customized
- "Simple is more" module design
- Application: smart home, instrument
- General Specifications
- Circuit/Contacts Rotation + SPST-NO Momentary (push)
- Switching rating 1mA @ 10V DC
- Terminal Connector
- Operating force Rotation: Max. 60gf-cm; Center push: Max. 220gf ± 50gf
- Mechanical life Rotation: Min. 200,000 operations; Center push: 1,000,000 cycle
- Illumination Pure Green LED
- Materials
- Cap/Lens Rotary knob: Polyamide (PA); Center cap: Polycarbonate (PC)
- Base/Housing Housing: Aluminum
- Terminal Brass with Tin plating
What’s SF39EA Rotary Encoder with Push Button Switch?

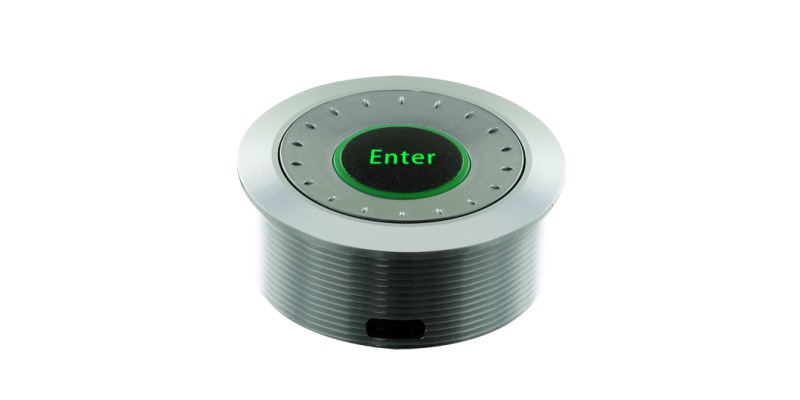

SHANPU’s SF39EA is LED push button with flat rotary encoder, smoothly operate, durable aluminum housing, panel cutting a hole, plug wire into connector, easy installation. It allows customize marking on the center switch.
Configuration for SF39EA Rotary Encoder with Push Button Switch

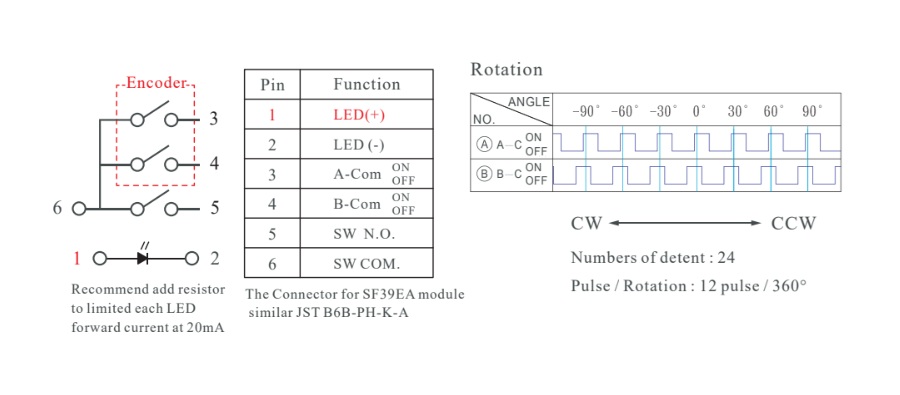

SF39EA total have 6 pins, 1 & 2 are switch, 3 & 4 & 6 are encoder, 5 & 6 are push button switch. Incremental encoder has two output signals, A and B, which issue pulses when the device is moved.

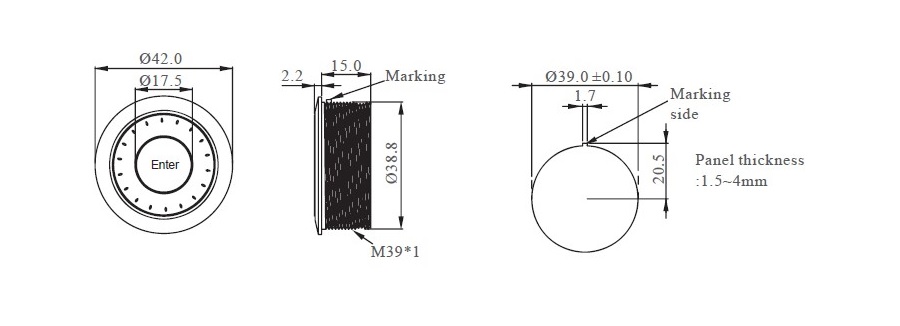

Dimension & panel cutting for SF39EA Rotary Encoder with Push Button Switch
The modular design combines a flat rotary encoder with a push button switch, increased durability and ease of installation.

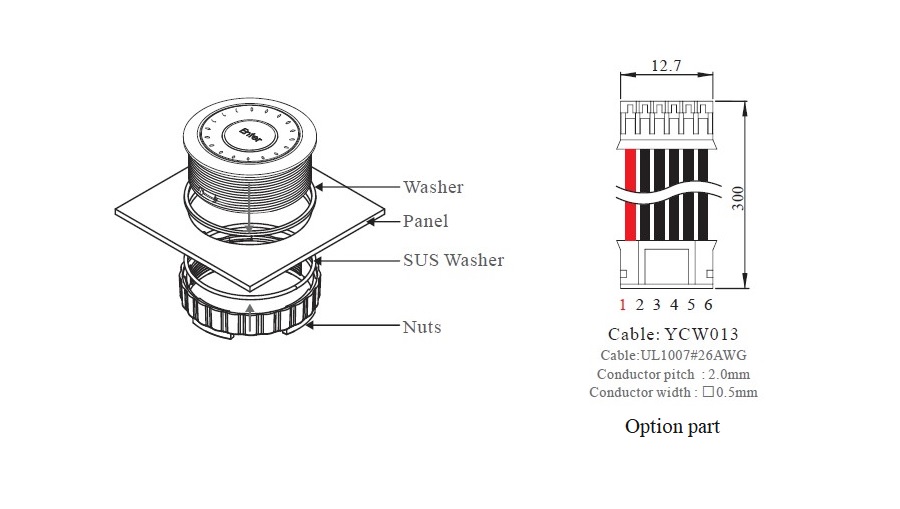

Installation notes & option part - cable for SF39EA Rotary Encoder with Push Button Switch
The panel thickness of device is during 1.5mm to 4mm, and cutting dia. 39mm±0.1, put into and tighten it with a nut. Use cable plug into connector and device.
Sample Order
- Module
- Part No
- Description
-
- SF39EA5051A+YCW013
-
- Flat silver encoder rotation knob
- Center Green lighting push button black cap with marking "Enter"
- Aluminum alloy silver housing
- Panel mounting, cut hole dia.39mm
- YCW013 wire length 300mm
-
TWD 1,060
- +
-
- SF39EA5051A
-
- Flat silver rotation knob
- Center push button with black cap laser engrave "Enter"
- Green LED backlight
- Aluminum alloy silver housing
- Panel mounting, cut hole dia.39mm
-
TWD 960
- +
-
- YCW013_SF39EA wire
-
- wire for S39EA incremental rotary encoder with push button switch
- 6 pins, length 300mm
- Female connector on the end
-
TWD 100
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
