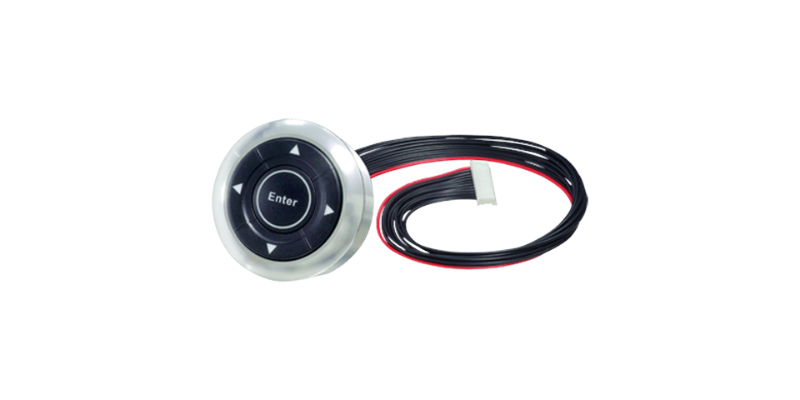

SF39BB

  • Complete waterproof design
  • Ideal for industrial and marine applications
  • Reliable and durable performance in harsh environments
  • Multiple switch options for versatile use
  • Applications: Industrial control panels, machinery interfaces, elevator panels, medical equipment controls, and automotive dashboards.
  • General Specifications
  • Circuit/Contacts SP5T
  • Switching rating 50mA @ 12V DC
  • Terminal fly cable
  • Total travel 0.5mm ±0.3mm
  • Operating force Center: 400gf ±150gf round button:250gf ±100gf
  • Mechanical life 200,000 cycles min.
  • Front protection IP65
  • Illumination pervious to light
  • Materials
  • Cap/Lens PC(Polycarbonate)
  • Stem/Reflector Silicone
  • Base/Housing Aluminum
  • Terminal Fly wire cable

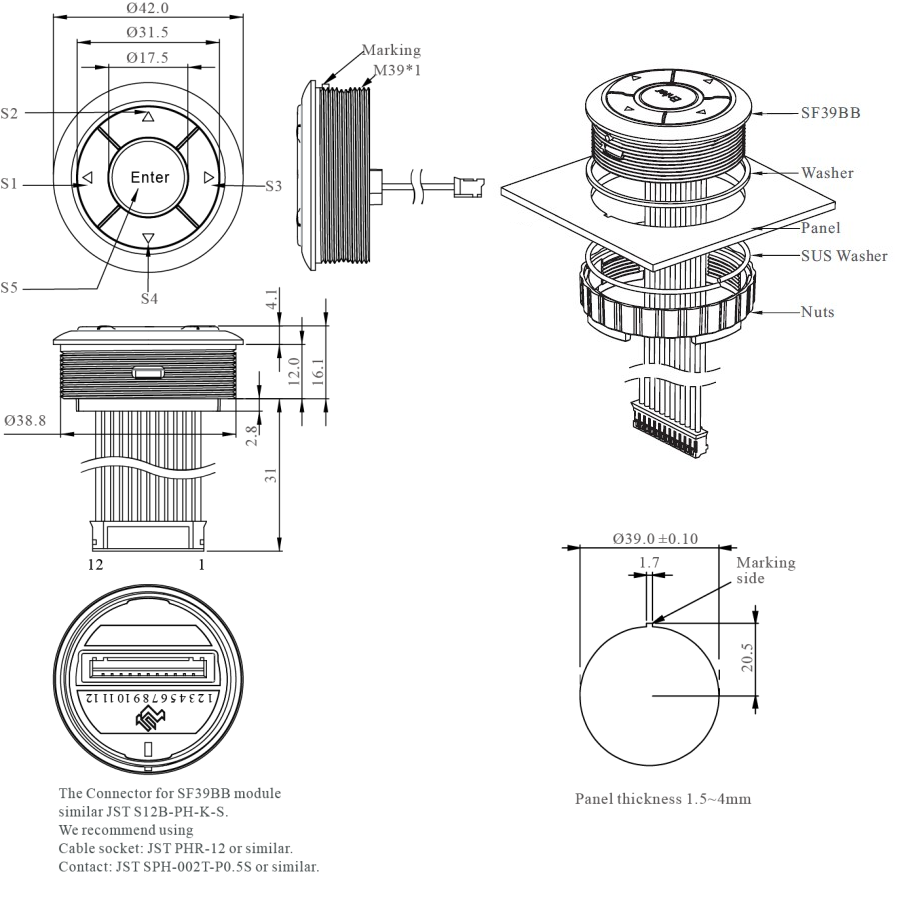

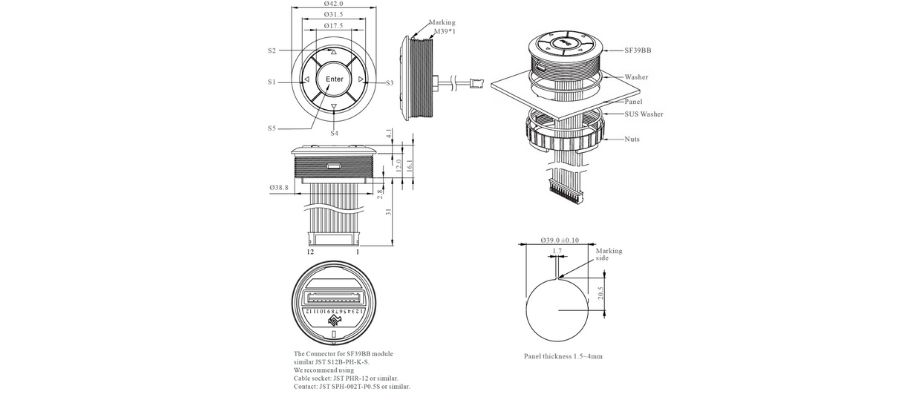

Diagram & Panel cutting & Option – cable

Q: Why should I choose the SF39BB full series switches?
A: The SF39BB series provides a wide range of waterproof and multi-functional switches, ideal for industrial, marine, and outdoor applications. With a robust design, these switches ensure long-term, reliable performance even in harsh environments.

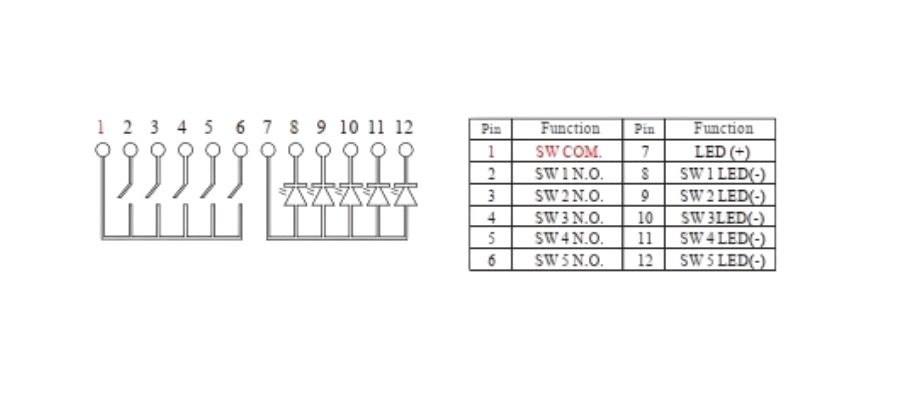

Contact configuration & Installation notes

Download

Sample Order

  • Module
  • Part No
  • Description
  • SF39BB2011
    • Yellow LED backlight
    • wire underneath with seal
    • IP65 rating water-proof
  • TWD 1,900
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
