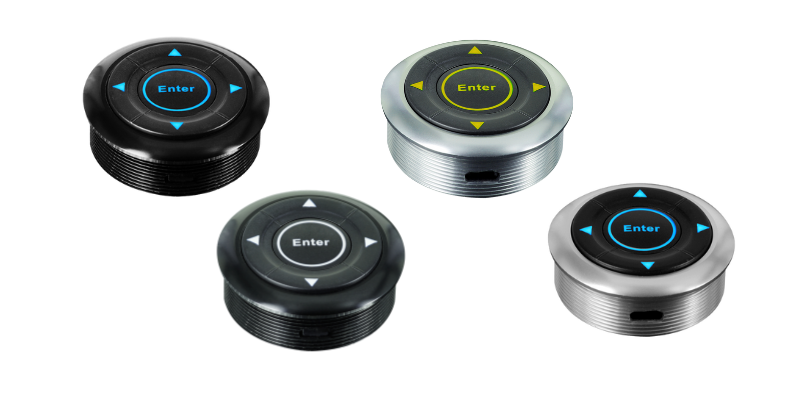

SF39BA

Ø 39 mm panel cut-out
SPST*5 momentary circuit
LED backlight illumination
Connector quick assembly
Housing: Aluminum, PC (black), or PA (silver)
Front side waterproof rating IP65
• Applications: Industrial control panels, machinery interfaces, elevator panels, medical equipment controls, and automotive dashboards.

General Specifications
Circuit/Contacts SPST*5 Momentary
Switching rating 50mA @ 12V DC
Terminal Connector
Total travel 0.5mm±0.3mm
Operating force Center 250gf±100gf, outside 400gf±150gf
Mechanical life 200,000 cycles min.
Front protection IP65
Illumination pervious to light

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector Silicone
Base/Housing Aluminum/ PC(BK)/ PA(Silver)
Terminal Brass with plating

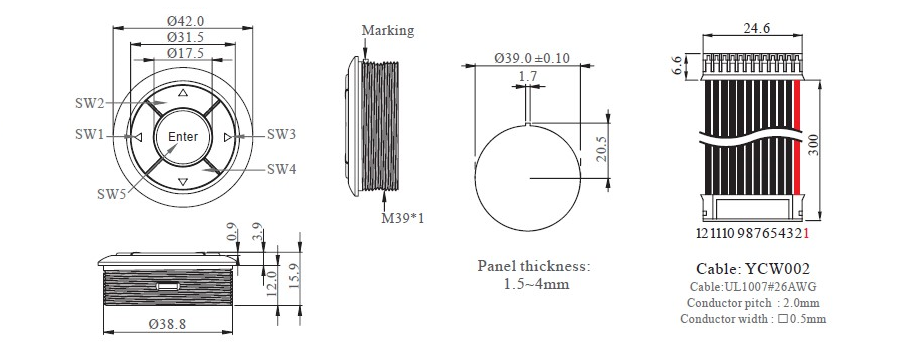

Diagram & Panel cutting & Option – cable

Q: Why choose the SF39BA full series?
A: Because it offers a compact, customizable, and durable 5 key navigation module with LED backlight and IP65-rated front protection, making it ideal for both functional aesthetics and reliable performance across various application environments.

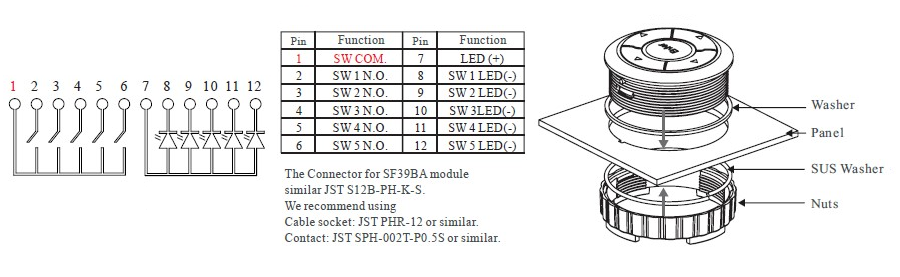

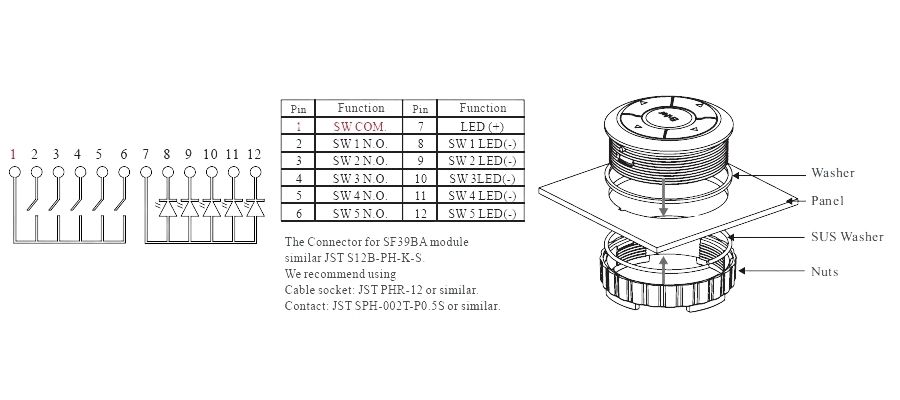

Contact configuration & Installation notes

Download

SF39BA

Sample Order

Module
Part No
Description

SF39BA2011+YCW002
- 5-way individual yellow LED tactile switches module
- Aluminum alloy, silver bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- wire YCW002 length 300mm
TWD 1,515

- +

SF39BA2011
- 5-way individual yellow LED tactile switches module
- Aluminum alloy, silver bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- Not include YCW002 wire
TWD 1,385

- +

SF39BA4511+YCW002
- 5-way individual white LED tactile switches module
- Aluminum alloy, black bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- wire YCW002 length 300mm
TWD 1,555

- +

SF39BA4511
- 5-way individual white LED tactile switches module
- Aluminum alloy, black bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- not include YCW002 wire
TWD 1,425

- +

SF39BA7511+YCW002
- 5-way individual blue LED tactile switches module
- Aluminum alloy, black bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- wire YCW002 length 300mm
TWD 1,410

- +

SF39BA7511
- 5-way individual blue LED tactile switches module
- Aluminum alloy, black bushing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- Not include YCW002 wire
TWD 1,280

- +

SF39BA7B11+YCW002
- 5-way individual blue LED tactile switches module
- PC, Black housing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- wire YCW002 length 300mm
TWD 1,070

- +

SF39BA7L11+YCW002
- 5-way individual blue LED tactile switches module
- PA, Silver housing
- Water proof IP65 rating in front
- Common bus pin out
- Black cap with marking"Enter"
- wire YCW002 length 300mm
TWD 1,090

- +

YCW002_SF39BA wire
- wire for SF39BA 5-way navigation switch
- 12 pins, length 300mm
- Female connector on the end
TWD 130

- +
