SF30BF

  • infrared non-contact push button switch
  • long operation life
  • adjusted sensing distance
  • two color indicator light
  • General Specifications
  • Circuit/Contacts momentary push ON
  • Switching rating SF30BF1: 1A@30VDC/ 0.3A@125VAC; SF30BF2: 35V@50mA
  • Terminal connector
  • Total travel contactless
  • Mechanical life 500000 cycles Min.(relay type)
  • Front protection IP67
  • Illumination pervious to light
  • Materials
  • Cap/Lens Polycarbouate(PC)
  • Base/Housing Aluminum alloy
  • Terminal contactor

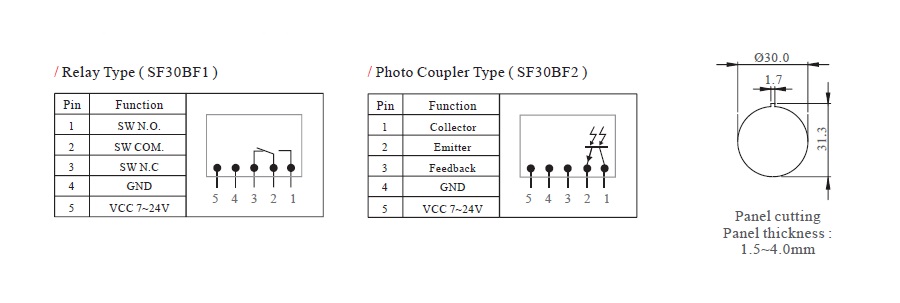

Configuration

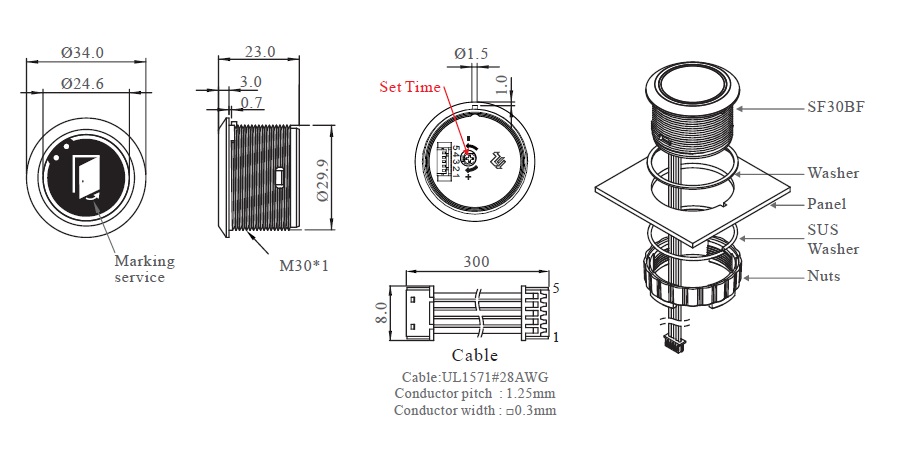

Dimension & Installation Notes

wire cable and panel cutting recommendation

Download

Sample Order

  • Module
  • Part No
  • Description

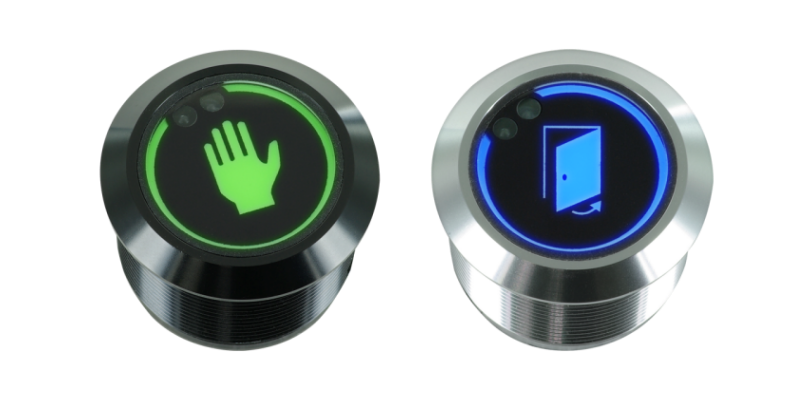

  • SF30BF231502
    • Photo Coupler type
    • Green & Red LED
    • Black housing
    • "Hand" marking
    • Include wire YCW030-A
  • TWD 1,140
    - +
  • SF30BF171001
    • Relay type
    • Blue & Red LED
    • Silver housing
    • "Door" marking
    • Include wire YCW030-A
  • TWD 1,260
    - +

*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
