SF30BD
- Navigation with 6 button, module design
- Waterproof rating IP67
- Panel mounting, diameter 30 mm
- Quickly wire cable connect to control board
- LED back-light
- General Specifications
- Circuit/Contacts SPST*6 Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel 0.5 mm ±0.3mm
- Operating force Center 250gf±100gf, outside 400gf±150gf
- Mechanical life 200,000 cycles Min.
- Front protection IP67
- Illumination pervious to light
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector Silicone
- Base/Housing Aluminum alloy
- Terminal Brass with plating

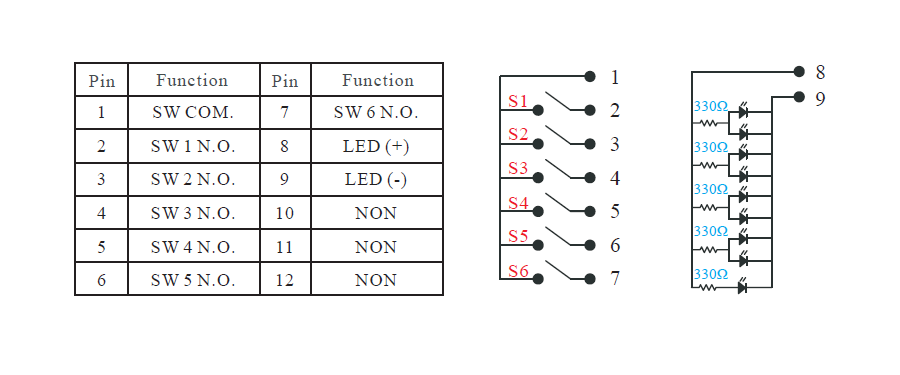

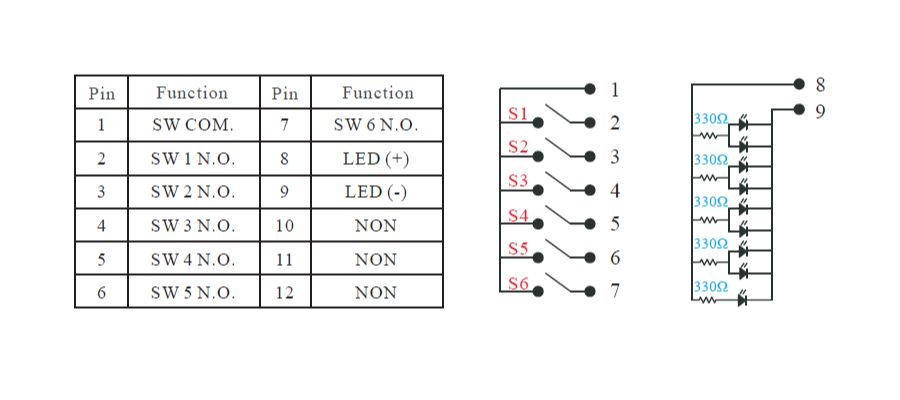

Contact configuration

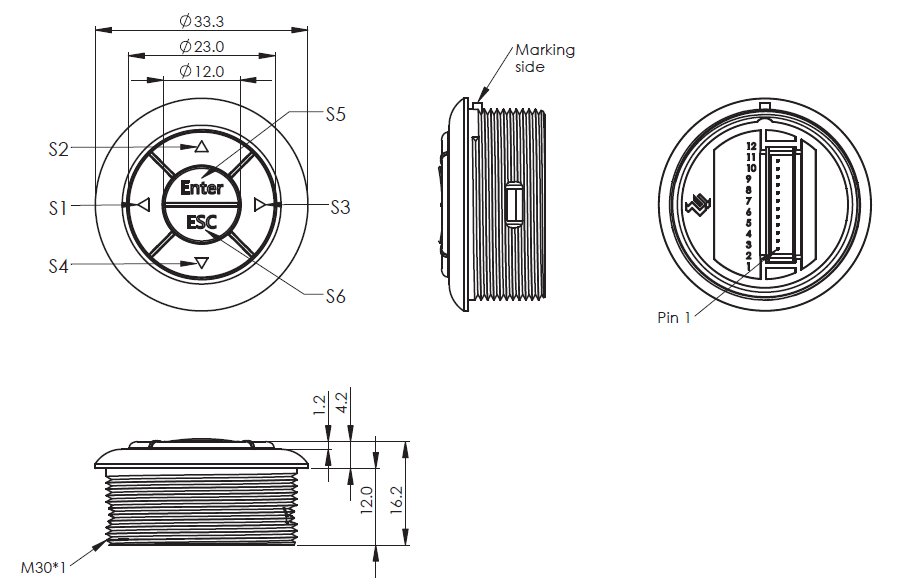

SF30BD outside Dimension

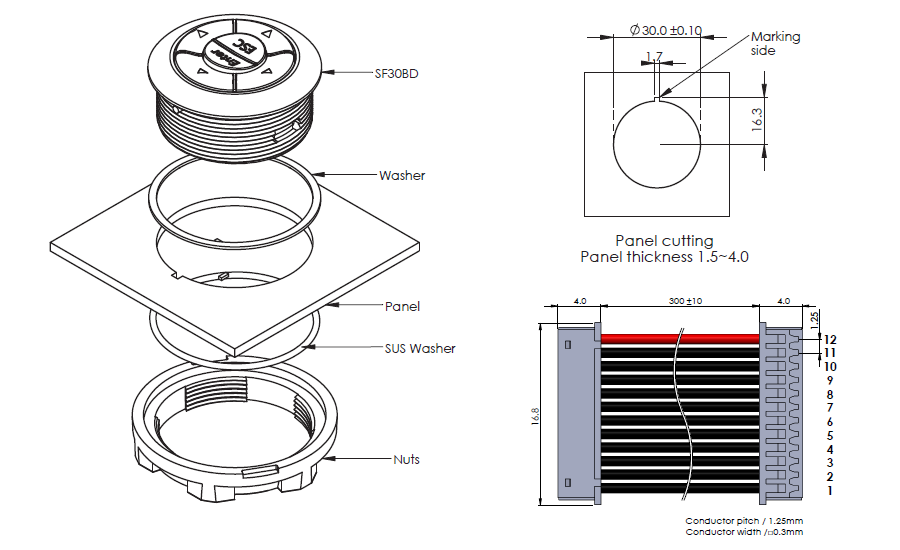

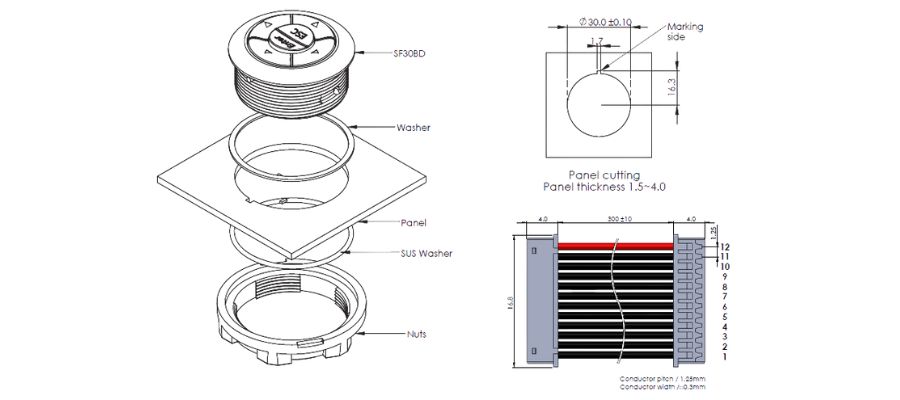

installation notice, panel cutting recommendation, and option part
Download
Sample Order
- Module
- Part No
- Description
-
- SF30BD1051+YCW024
-
- IP65 water proof, 6-key push button switches module
- Silver aluminum alloy housing
- Black cap center marking with "Enter" / "ESC"
- RED LED back-light
- YCW024 wire, L:300mm
-
TWD 1,370
- +
-
- SF30BD1051
-
- IP65 water proof, 6-key push button switches module
- Silver aluminum alloy housing
- Black cap center marking with "Enter" / "ESC"
- RED LED back-light
- without wire cable YCW024
-
TWD 1,190
- +
-
- YCW024 for SF30BD wire
-
- YCW024 wire for SF30BD module
- 12 pins wire, length 300mm
- Conductor pitch 1.25mm
- Conductor width 0.3mm*0.3mm sq.
-
TWD 180
- +
