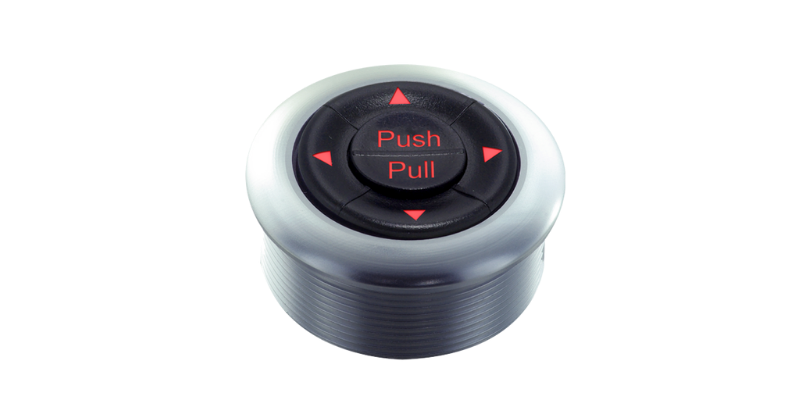

SF30BC LED Multi-way Push Button Switch

LED back-lighting: Illuminates navigation keys for low-light visibility.
Same IP 67 waterproof rating: Protects lighting and switch components.
Aluminum-alloy durability: Maintains reliability with visual appeal.
Supports voltage-divider wiring: Preserves simplified interface logic.
Applications: Gaming consoles, control systems in dim environments, illuminated panels, and decorative HMI solutions.

General Specifications
Circuit/Contacts voltage divider circuit
Switching rating 50mA @ 12V DC
Terminal Connector
Total travel 0.5 mm ±0.3mm
Operating force Center 250gf±100gf, outside 400gf±200gf
Mechanical life 200,000 cycles Min.
Front protection IP67
Illumination pervious to light

Materials
Cap/Lens PC(Polycarbonate)
Stem/Reflector Silicone
Base/Housing Aluminum
Terminal Brass with plating

Dimension & Panel cutting- 6-key navigation led illuminated tactile switch

Q: Can it be used in dark or low-light settings?
A: Absolutely—LED back-lighting makes each of the six buttons easily visible, improving usability in dim environments while keeping front-side protection intact.

Contact configuration

Q: Which model should I choose if I have limited MCU pins?
A: Choose SF30BC. Its voltage divider circuit allows you to detect 6 keys using a single analog input, minimizing wiring and I/O usage.

Installation notice & Option part

Download

SF30BC LED Multi-way Push Button Switch

Sample Order

Module
Part No
Description

SF30BC0051+YCW030-A
- Silver aluminum alloy housing
- 6-key push button switch module
- Black cap center marking with "Enter" / "ESC"
- NON LED back-light
- YCW030-A wire, L:300mm
TWD 1,160

- +

SF30BC0051
- NON LED back-light
- Silver aluminum alloy housing
- Black cap center marking with "Enter" / "ESC"
- without wire cable YCW030-A
TWD 1,050

- +

SF30BC7552+YCW030-A
- Black aluminum alloy housing
- 6-key push button switch module
- center cap with marking with "x" / "v"
- Blue LED back-light
- YCW030-A wire, L:300mm
TWD 1,260

- +

SF30BC7552
- Blue LED back-light
- Black aluminum alloy housing
- Black cap center marking with "x" / "v"
- without wire cable YCW030-A
TWD 1,150

- +

YCW030-A for SF30BC wire
- wire for SF30BC 6 button navigation switch
- 5 pins, length 300 mm
- Female connector on the end
TWD 110

- +
