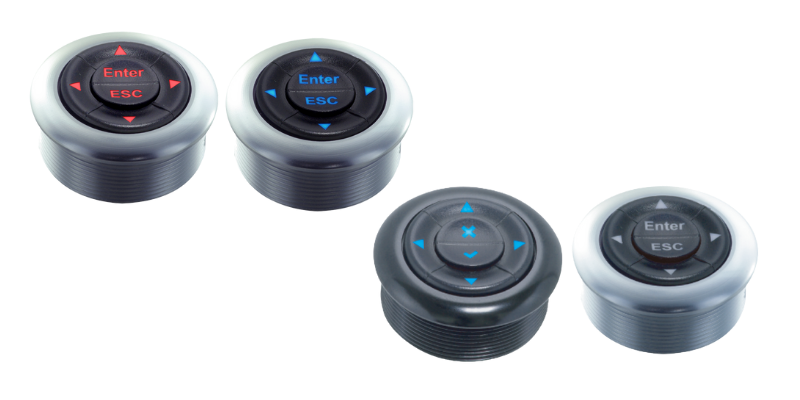

SF30BC

6-key navigation module: Compact multi-way control for intuitive interface designs.
Steel/aluminum rugged housing: Durable build for industrial or outdoor use.
Panel mount, Ø30 mm: Easy installation into standard panels with minimal footprint.
Voltage divider circuit: Reduces pinout requirement and simplifies wiring.
Applications: Ideal for industrial control panels, machinery HMI interfaces, and compact navigational controls.

General Specifications
Circuit/Contacts voltage divider circuit
Switching rating 50mA @ 12V DC
Terminal Connector
Total travel 0.5 mm ±0.3mm
Operating force Center 250gf±100gf, outside 400gf±200gf
Mechanical life 200,000 cycles Min.
Front protection IP67
Illumination pervious to light

Materials
Cap/Lens PC(Polycarbonate)
Base/Housing Aluminum
Terminal Brass with plating
Stem/Reflector Silicone

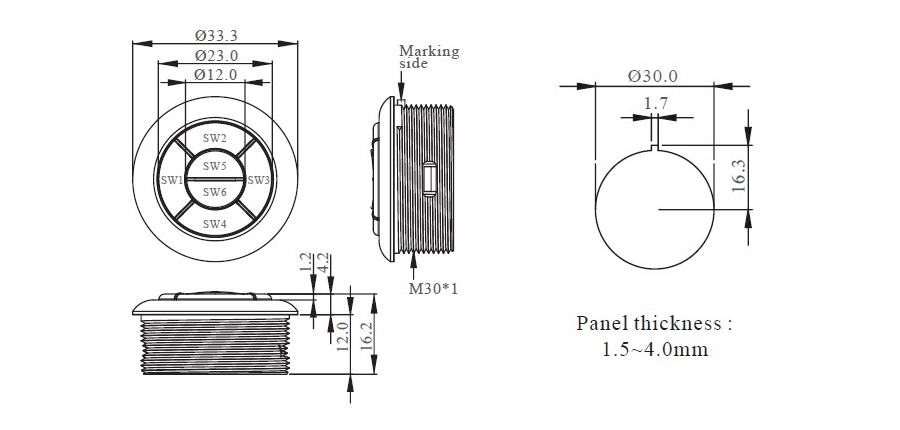

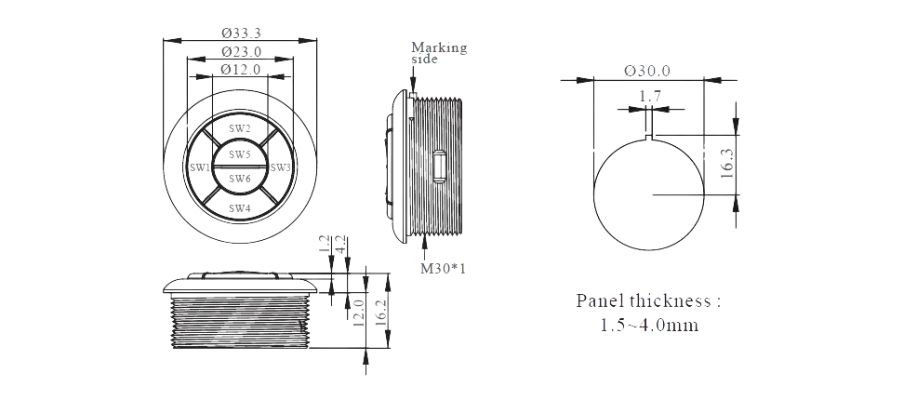

Dimension & Panel cutting- 6-key navigation led illuminated tactile switch

Q: What’s the advantage of a multi-key module like SF30BC?
A: It integrates up to 6 separate push buttons into a single, compact module—reducing PCB complexity, simplifying wiring with a voltage-divider circuit, and speeding up assembly.

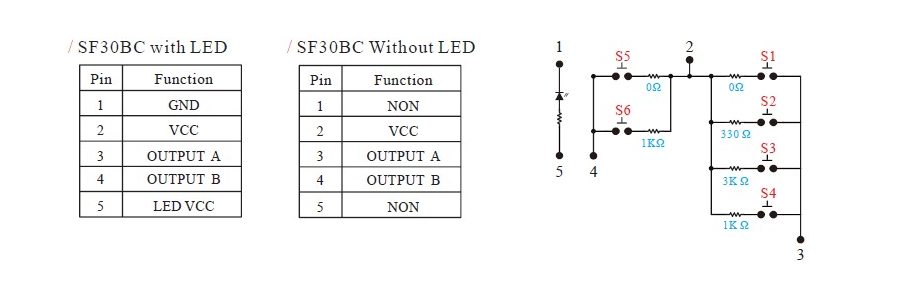

Contact configuration

Q: Which model should I choose if I have limited MCU pins?
A: Choose SF30BC. Its voltage divider circuit allows you to detect 6 keys using a single analog input, minimizing wiring and I/O usage.

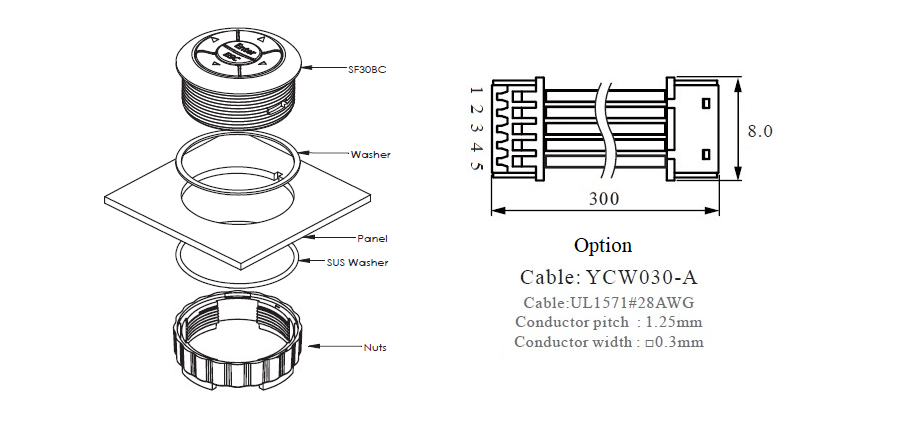

Installation notice & Option part

Download

SF30BC

Sample Order

Module
Part No
Description

SF30BC0051+YCW030-A
- Silver aluminum alloy housing
- 6-key push button switch module
- Black cap center marking with "Enter" / "ESC"
- NON LED back-light
- YCW030-A wire, L:300mm
TWD 1,205

- +

SF30BC0051
- NON LED back-light
- Silver aluminum alloy housing
- Black cap center marking with "Enter" / "ESC"
- without wire cable YCW030-A
TWD 1,110

- +

SF30BC7552+YCW030-A
- Black aluminum alloy housing
- 6-key push button switch module
- center cap with marking with "x" / "v"
- Blue LED back-light
- YCW030-A wire, L:300mm
TWD 1,415

- +

SF30BC7552
- Blue LED back-light
- Black aluminum alloy housing
- Black cap center marking with "x" / "v"
- without wire cable YCW030-A
TWD 1,320

- +

YCW030-A for SF30BC wire
- wire for SF30BC 6 button navigation switch
- 5 pins, length 300 mm
- Female connector on the end
TWD 95

- +
