SF30BB
- IP68 waterproof piezo buzzer indicator
- Clear visual and audible warning system
- LED colors support multi-status alerts
- Durable housing protects internal parts
- Application: medical device, industrial machine
- General Specifications
- Circuit/Contacts 95dB Min. at 30cm at 12V DC
- Switching rating 3 to 15V DC
- Terminal Wire soldring pin
- Front protection IP68
- Illumination Illumination
- Materials
- Cap/Lens PC(Polycarbonate)
- Base/Housing Aluminum
- Terminal Tin plated brass
What’s SF30BB Piezoelectric Buzzer Indicator?
SHANPU’s SF30BB is a high-performance panel-mount alarm indicator featuring a 30 mm aluminum alloy housing, IP68 waterproof front protection, and 95 dB piezoelectric sound output. With LED illumination and 3-15 V DC operation, it’s ideal for industrial control panels, outdoor safety systems, marine equipment, and any environment demanding rugged visual & audible alerts.

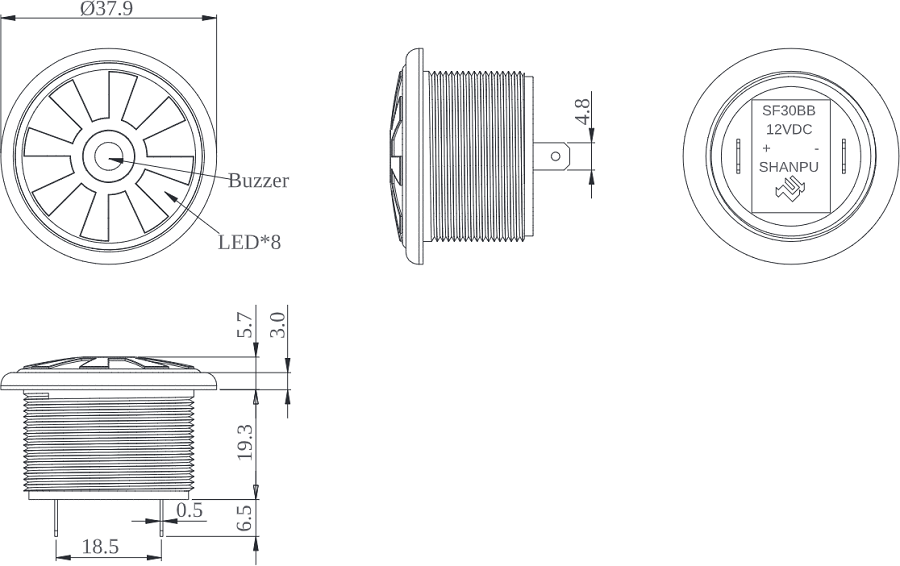

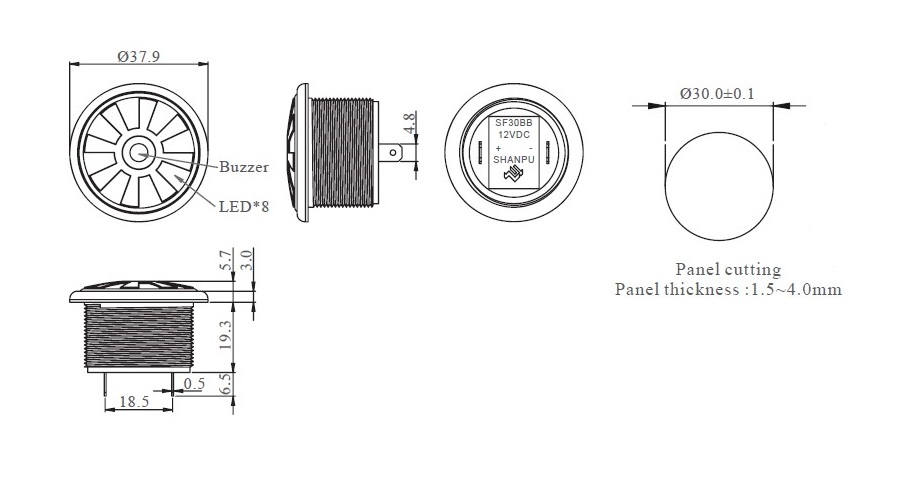

Dimension & Panel cutting for SF30BB Piezoelectric Buzzer Indicator
How to use SF30BB Buzzer Indicator? The panel thickness of device is during 1.5mm to 4.0mm, and cutting dia. 30mm±0.1, put into and tighten it with a nut.

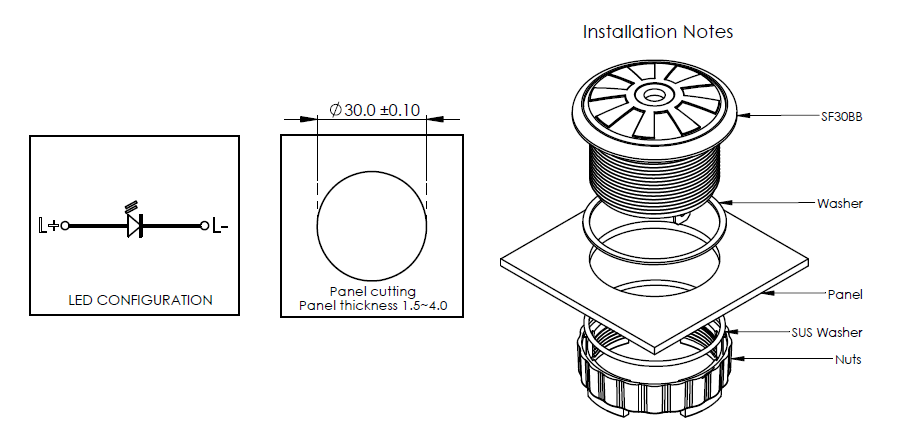

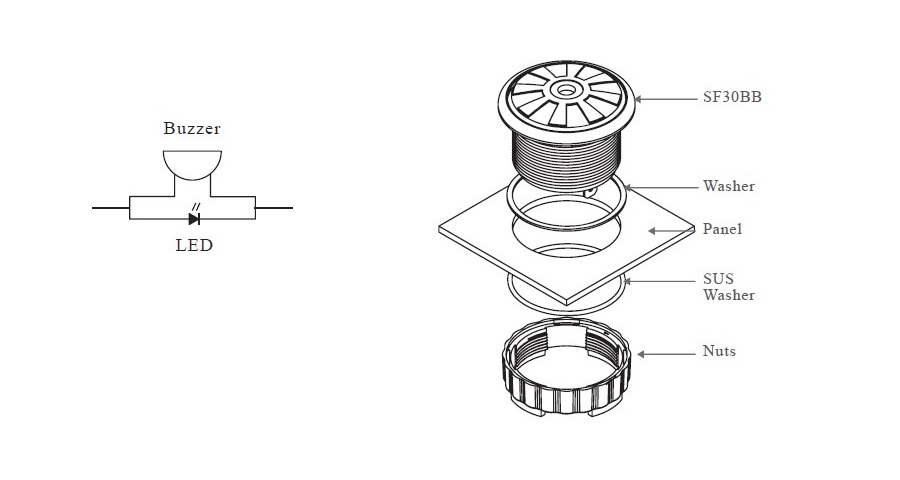

Configuration & installation notes for SF30BB Piezoelectric Buzzer Indicator
Accessories have washer, SUS washer, and nut, follow below diagram to install SF30BB Buzzer Indicator, and it has two terminal pins connect to equipment.

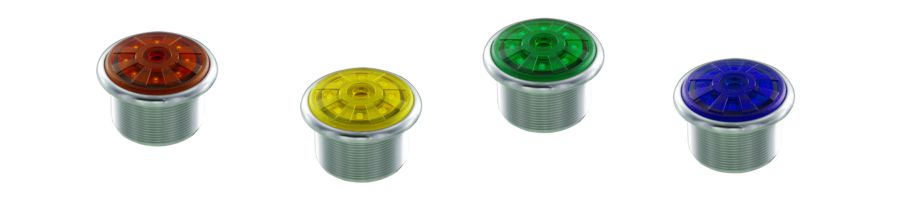

Sample Order
- Module
- Part No
- Description
-
- SF30BB10
-
- Piezoelectric Buzzer Indicator
- LED flash light with Red cap
- 95 dB alarm sound
- Aluminum alloy silver bushing
- Waterproof IP68 rating
-
TWD 800
- +
-
- SF30BB20
-
- Piezoelectric Buzzer Indicator
- LED flash light with Yellow cap
- 95 dB alarm sound
- Aluminum alloy silver bushing
- Waterproof IP68 rating
-
TWD 800
- +
-
- SF30BB30
-
- Piezoelectric Buzzer Indicator
- LED flash light with Green cap
- 95 dB alarm sound
- Aluminum alloy silver bushing
- Waterproof IP68 rating
-
TWD 800
- +
-
- SF30BB70
-
- Piezoelectric Buzzer Indicator
- LED flash light with Blue cap
- 95 dB alarm sound
- Aluminum alloy silver bushing
- Waterproof IP68 rating
-
TWD 800
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
