SF30BA
- Panel cutting dia. 30.0mm module design
- IP65 protection rating
- Multi-directional 5-key navigation switch
- Custom markings service
- Application: analysis instrument, measurement instrument
.png)
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel 0.5mm±0.3mm
- Operating force 250gf±100gf
- Mechanical life 200,000 cycles min.
- Front protection IP65
- Illumination pervious to light
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector Silicone
- Base/Housing Aluminum
- Terminal Brass with plating
Why is SHANPU SF30BA multi-directional 5-key navigation switch ideal for smart home devices?
The SF30BA offers a durable metal housing, LED backlighting, and momentary 5-key tactile operation, making it perfect for intuitive control in smart home automation systems.

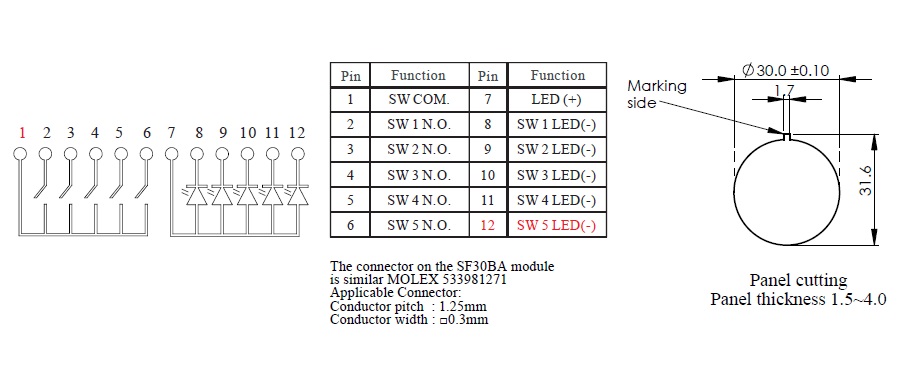

Contact configuration and panel cutting for SF30BA multi-directional 5-key navigation switch.
The SF30BA’s 30mm cutout, LED indicators and waterproof IP65 rating provide intuitive and precise operation for projectors, monitors and other visual equipment.
Download
Sample Order
- Module
- Part No
- Description
-
- SF30BA4051
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- White LED illuminated
- Sliver housing
-
TWD 1,170
- +
-
- SF30BA4051 + YCW024
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- White LED illuminated
- Sliver housing
- YCW024 wire, 12 line, 28AWG, L=30cm
-
TWD 1,350
- +
-
- SF30BA5551
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- Pure green LED illuminated
- Black housing
-
TWD 1,270
- +
-
- SF30BA5551 + YCW024
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- Pure green LED illuminated
- Black housing
- YCW024 wire, 12 line, 28AWG, L=30cm
-
TWD 1,450
- +
-
- SF30BA7051
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- Blue LED illuminated
- Sliver housing
-
TWD 1,180
- +
-
- SF30BA7051 + YCW024
-
- Multi-directional 5-key navigation switch
- Panel cutting dia. 30.0mm
- IP65 rating
- Blue LED illuminated
- Sliver housing
- YCW024 wire, 12 line, 28AWG, L=30cm
-
TWD 1,360
- +
-
- YCW024
-
- Wire for SF30 navigation switch
- wire pitch 1.25mm, 12 line, 28AWG, L=30cm
-
TWD 180
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
