SF25WA
- 25mm panel cutout
- IP67 waterproof rating
- SUS 316 stainless steel housing
- Applications: industrial control, broadcast equipment, instrumentation
- General Specifications
- Circuit/Contacts SPST*5 Momentary
- Switching rating 50mA @ 12V DC
- Terminal FFC (Flexible Flat Cable)
- Total travel 1.0mm±0.3mm
- Operating force 400gf±100gf
- Mechanical life 100,000 cycles min.
- Front protection IP67
- Illumination pervious to light
- Materials
- Cap/Lens Silicone
- Stem/Reflector Silicone
- Base/Housing SUS 316
- Terminal FFC

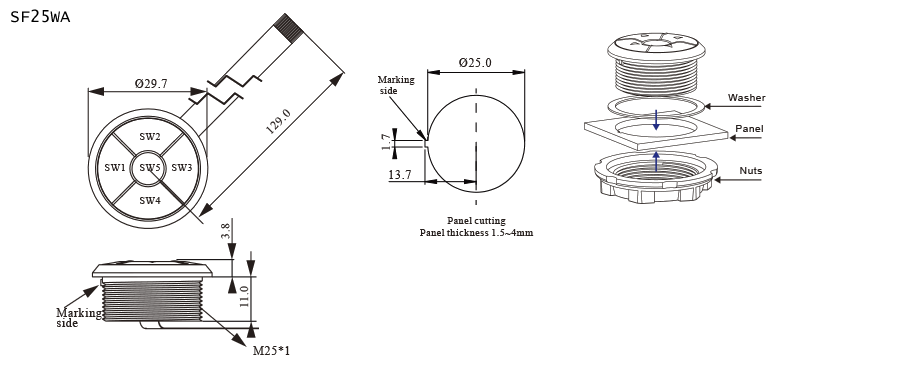

Dimension- 5-way Navigation Switch, Waterproof Multi-way Switch
Q: What environments are these waterproof stainless steel navigation switches suitable for?**
A: They are designed for harsh environments, ideal for outdoor equipment, humid conditions, industrial machinery, medical devices, and marine control panels.

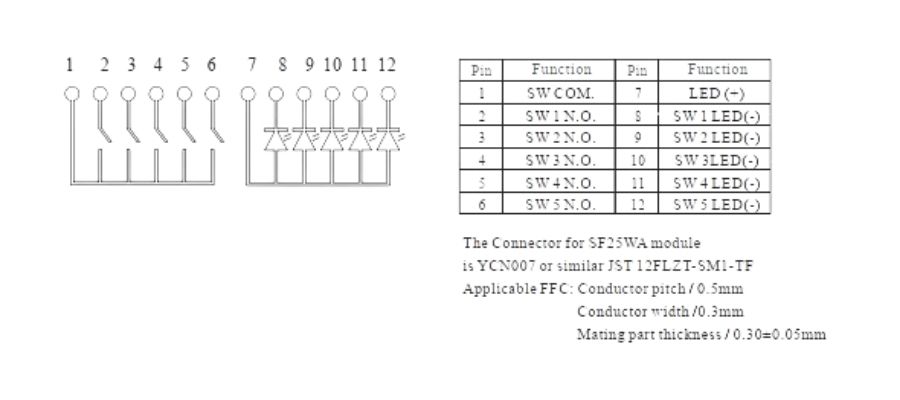

Contact Configuration & Panel cutting

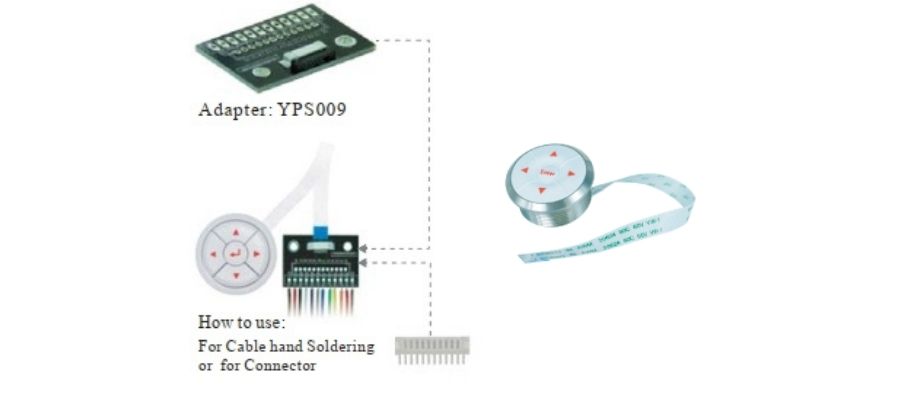

Option YPS009
Download
Sample Order
- Module
- Part No
- Description
-
- SF25WA7A52
-
- Black silicon cap with center button laser engrave "Enter"
- 5 Blue LED backlight, common anode
- 5 individual tactile switch, common bus
- SUS 316 black housing
- Panel mounting, cutting hole dia. 25mm
- IP67 water proof
- without YPS009 breakoutboard/extender board
-
TWD 1,710
- +
-
- SF25WA1B42
-
- White silicon cap with center button laser engrave "Enter"
- 5 Red LED backlight, common anode
- 5 individual tactile switch, common bus
- SUS 316 housing
- IP67 waterproof
- Panel mounting, cutting hole dia. 25mm
- without YPS009 breakoutboard/extender board
-
TWD 1,700
- +
-
- SF25WA7B52
-
- Black silicon cap with center button laser engrave "Enter"
- 5 Blue LED backlight, common anode
- 5 individual tactile switch, common bus
- SUS 316 housing
- Panel mounting, cutting hole dia. 25mm
- IP67 water proof
- without YPS009 breakoutboard/extender board
-
TWD 1,700
- +
-
- YPS009 for SF25WA
-
- For SNA1 or SF25WA navigation push button switches module
- Pitch 0.5mm, 12pins FFC(Flexible Flat Cable) breakout/extender board
-
TWD 120
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
