SF25BB
- Illuminated capacitive sensor touch switch
- NPN output type
- SUS anti-vandal housing
- IP65 waterproof rating
- Application: industrial equipment, instrument
- General Specifications
- Circuit/Contacts NPN(Sink) output Momentary or Alternate
- Terminal Connector
- Front protection IP65
- Illumination RGB LED
- Materials
- Cap/Lens SUS or Polycarbonate (PC)
- Base/Housing Housing: SUS
- Terminal Connector
What’s SF25BB Illuminated Capacitive Touch Switch?
SF25BB built-in RGB LED lights, different LED light colors and lighting modes can be set to represent the status of the device switch, whether it is standby or triggered. The IP65 waterproof rating front panel is suitable for outdoor equipment, so you don’t have to worry about it being splashed with water.

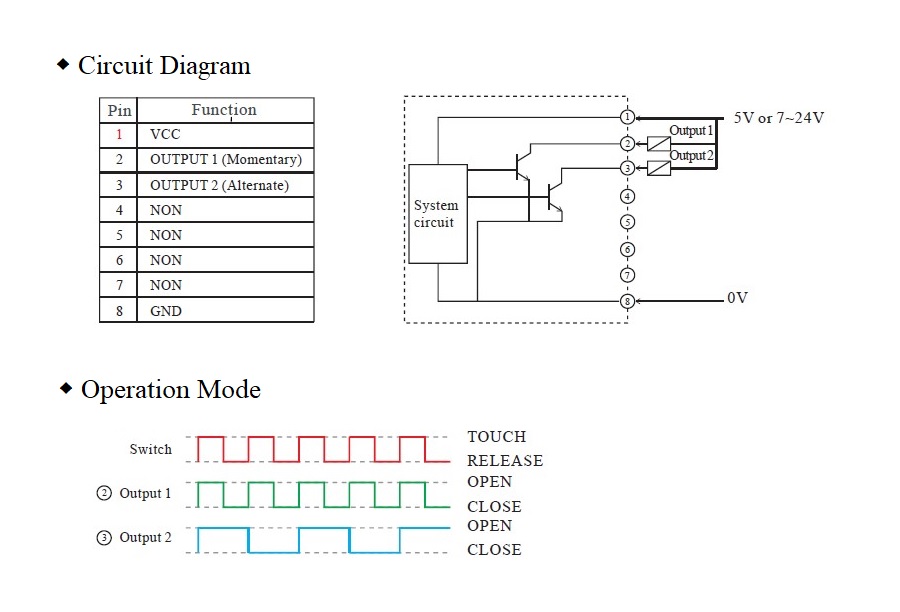

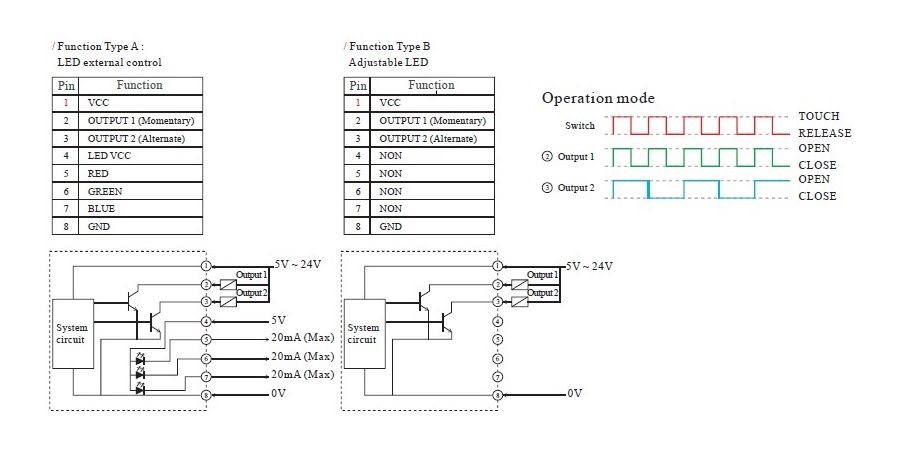

Circuit for SF25BB Illuminated Capacitive Touch Switch
This SF25BB switch operating voltage have two choose: 5V DC or 7~24V DC

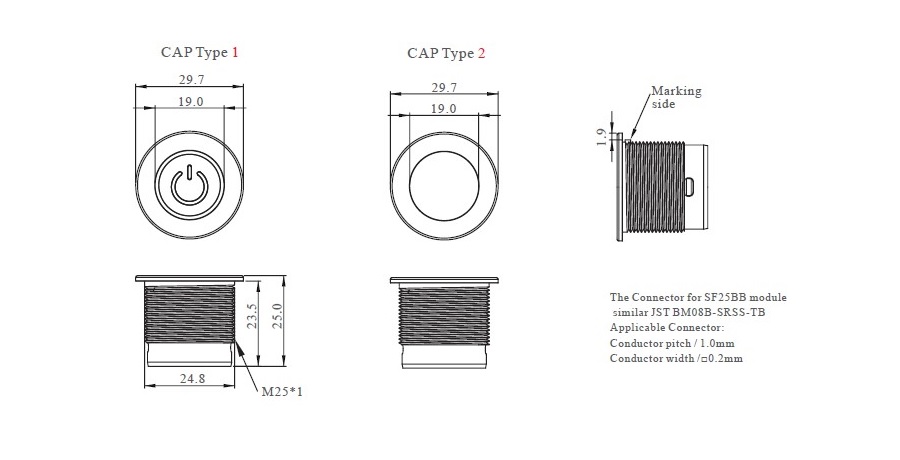

Dimension for SF25BB Illuminated Capacitive Touch Switch
SF25BB has a SUS anti-vandal housing with M25 thread, which is sturdy and durable. Two cap types, one is circular lighting, other is Power symbol.

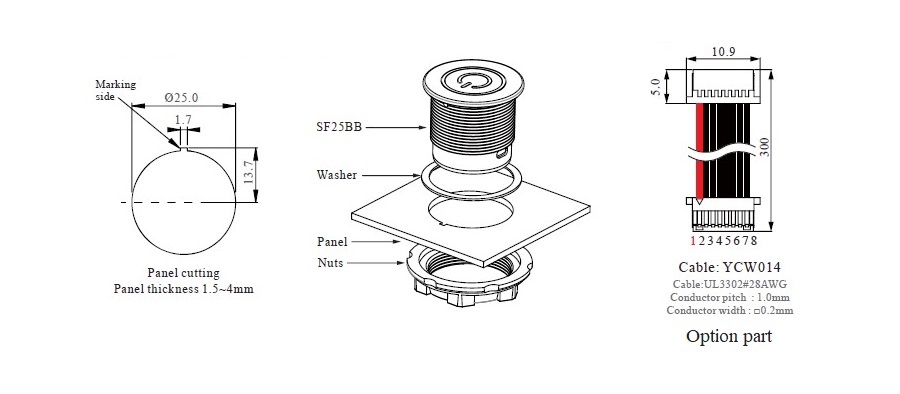

Panel cutting & installation notes & option part - cable for SF25BB Illuminated Capacitive Touch Switch
The panel thickness of device is during 1.5mm to 4mm, and cutting dia. 25mm, put into and tighten it with a nut. Use cable plug into connector and device.
Sample Order
- Module
- Part No
- Description
-
- SF25BBB2MA07A+YCW014
-
- Illuminated Capacitive Touch Switch 5V DC
- Full illuminated surface, no marking
- Stand by: w/o LED
- Trigger: Blue LED (momentary)
- Include YCW014 cable, L: 300mm
-
TWD 1,660
- +
-
- SF25BBB1AB75B+YCW014
-
- Illuminated Capacitive Touch Switch 7~24V DC
- Power and ring symbol illuminated
- Stand by: Blue LED
- Trigger: Green LED (alternate)
- Include YCW014 cable, L: 300mm
-
TWD 1,710
- +
-
- SF25BBB1MC15A+YCW014
-
- Illuminated Capacitive Touch Switch 5V DC
- Power and ring symbol illuminated
- Stand by: Red LED
- Trigger: Green LED (momentary)
- Include YCW014 cable, L: 300mm
-
TWD 1,710
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
*All products comply with RoHs and REACH.
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
