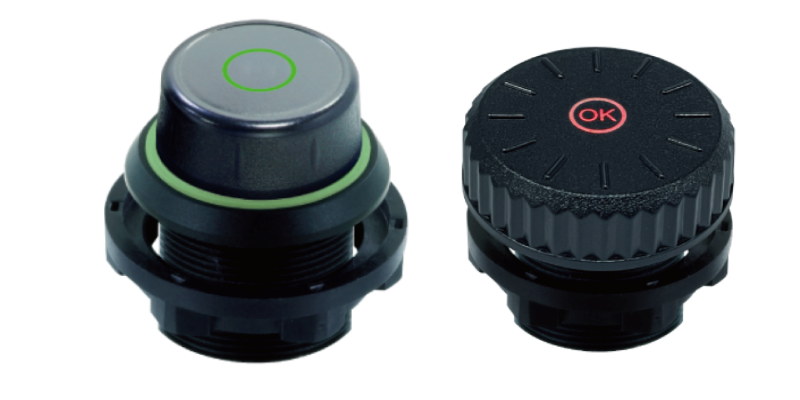

SF25BA
- Panel cutting dia. 25.0mm
- IP65 rating
- Ring LED Illuminated
- Marking service
- Dual, RGB Led Illuminated
- General Specifications
- Circuit/Contacts Rotation + SPST Momentary (push)
- Switching rating 10mA @ 5V DC(push)0.5mA @ 5V DC(rotation)
- Terminal Connector
- Total travel 0.5mm±0.3mm
- Operating force Rotation Max. 30~200gf.cm Push Max. 450gf±200gf
- Front protection IP65
- Mechanical life Rotation - 30,000 operations Push - 20,000 operations
- Illumination circular illuminativepervious to light
- Materials
- Cap/Lens PC(Polycarbonate)
- Stem/Reflector Silicone
- Base/Housing PA(Polyamide)
- Terminal Brass with plating

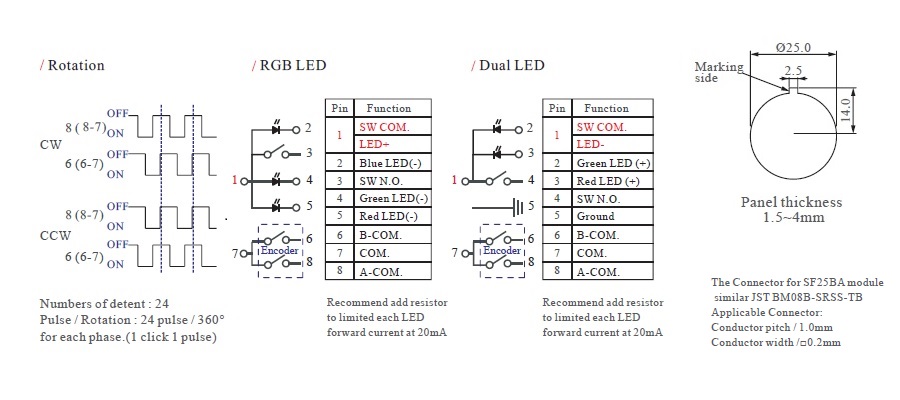

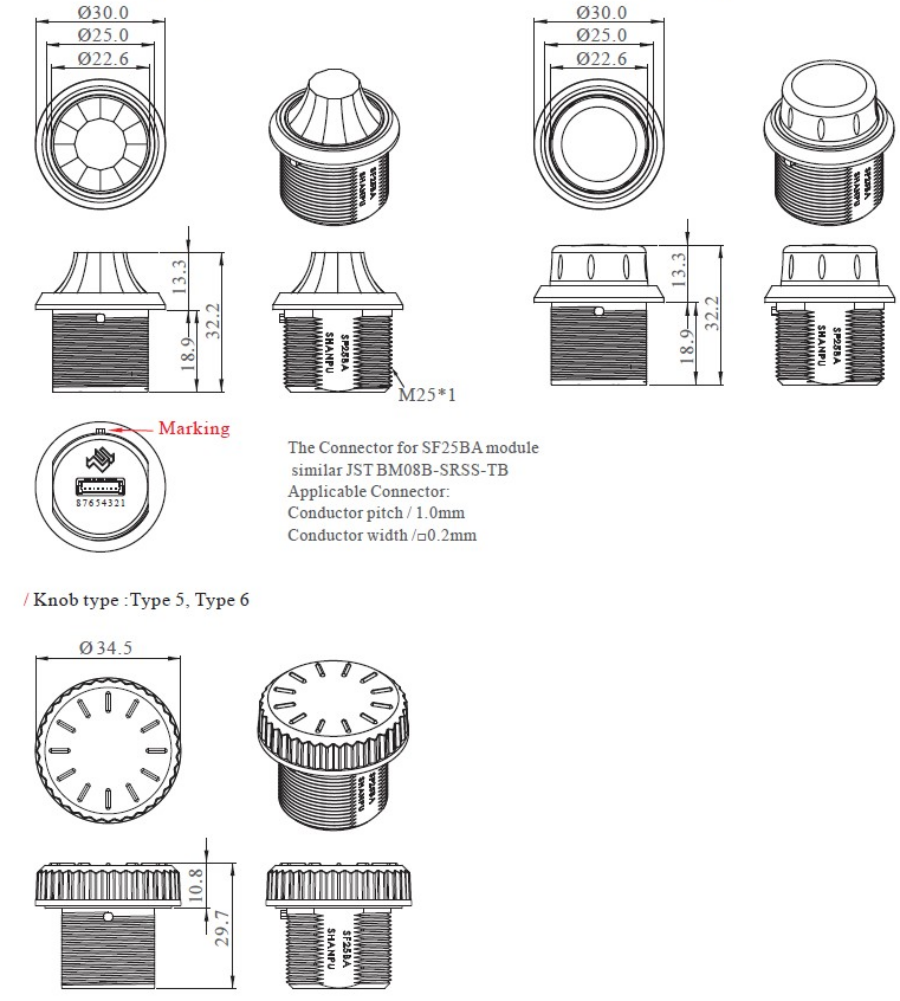

Diagram
A0.png)
For items out of stock, please contact Shangpu
Download
Sample Order
- Module
- Part No
- Description
-
- SF25BAK551+YCW014
-
- IP65 dust and water proof rating
- Green/Red bi-color Ring LED lighting
- Rotary encoder with center push button switch
- Knob with "OK" marking
- YCW014 Wire cable, L:300mm
-
TWD 880
- +
-
- SF25BAK551
-
- IP65 dust and water proof rating
- Green/Red bi-color Ring LED lighting
- Rotary encoder with center push button switch
- Knob with OK marking
- not include wire cable YCW014
-
TWD 700
- +
-
- SF25BA9552+YCW014
-
- IP65 dust and water proof rating
- R/G/B tri-color ring LED illuminated
- Rotary encoder with center push button switch
- Knob with marking ring for lighting
- YCW014 Wire, L:300mm
-
TWD 980
- +
-
- SF25BA9552
-
- IP65 dust and water proof rating
- R/G/B tri-color ring LED illuminated
- Rotary encoder with center push button switch
- Knob with laser engrave ring for lighting
- Not include wire cable YCW014
-
TWD 800
- +
-
- SF25BA9553+YCW014
-
- IP65 dust and water proof rating
- R/G/B tri-color ring LED illuminated
- Rotary encoder with center push button switch
- Knob with marking ring for lighting
- YCW014 Wire, L:300mm
-
TWD 980
- +
-
- SF25BA9553
-
- IP65 dust and water proof rating
- R/G/B tri-color ring LED illuminated
- Rotary encoder with center push button switch
- Knob with laser engrave ring for lighting
- not include wire cable YCW014
-
TWD 800
- +
-
- SF25BAK554+YCW014
-
- IP65 dust and waterproof proof
- Green/Red bi-color Ring LED lighting
- Rotary encoder with center push button switch
- Knob with "SET" marking
- YCW014 Wire, L:300mm
-
TWD 880
- +
-
- SF25BAK554
-
- IP65 dust and waterproof
- Green/Red bi-color Ring LED lighting
- Rortray encoder with center push button switch
- black knob with "SET" marking
- not include wire cable YCW014
-
TWD 700
- +
-
.png)
- SF25BA9555
-
- Red, green, blue LED
- black shell
- black cap type 5
- Black knob "OK" laser engraved and translucent
- Does not include wire YCW014
-
.png)
- SF25BA9556
-
- Red, green, blue LED
- black shell
- black cap type 6
- Black knob "O" laser engraved and translucent
- Does not include wire YCW014
-
- YCW014_SF25BA wire
-
- Wire for SF25BA rotary encoder
- 8 pins, Length 300mm
- Female connector on the end
-
TWD 180
- +
