SF20EA

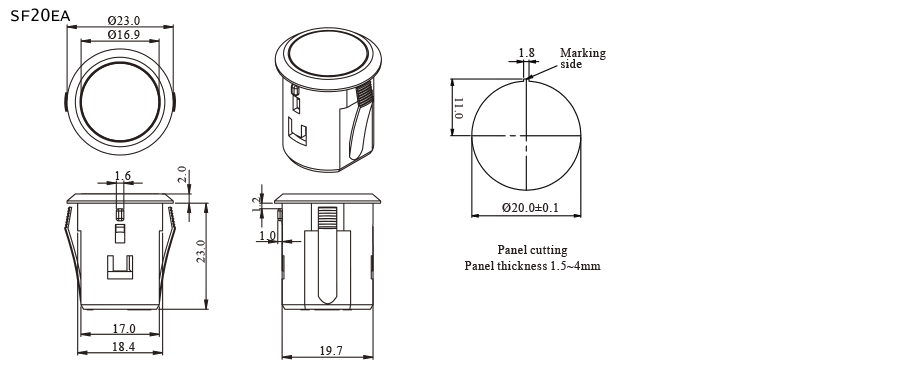

- Panel cutting dia. 20.0mm
- 4 position by push
- Panel mounting snap-in
- Custom markings service
- Application: industrial control, automation equipment
- General Specifications
- Circuit/Contacts SPST*3 Alternate
- Switching rating 1A @ 30V DC
- Terminal Connector
- Total travel 1.5mm±0.5mm
- Operating force 500gf±100gf
- Mechanical life 100,000 cycles min.
- Front protection IP4X
- Illumination Non
- Materials
- Cap/Lens PC (Polycarbonate)
- Stem/Reflector POM (Polyoxymethylene)
- Base/Housing PA (Polyamide)
- Terminal Brass with gold plating
Why choose the SF20EA button switch for electronic products?
The SHANPU SF20EA push button switch provides 20mm snap-in panel mounting and 4-position control, delivering reliable function for speed adjustment in electronics and industrial equipment.

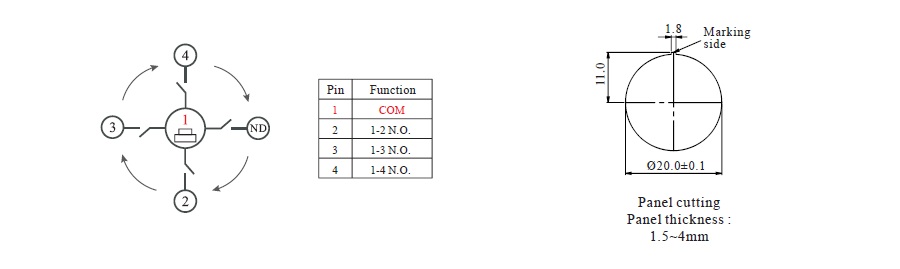

Contact configuration and panel cutting for SF20EA button switch.
SHANPU SF20EA button switch with 4-position control, snap-in mount, and custom marking for industrial automation worldwide.
Download
Sample Order
- Module
- Part No
- Description
-
- SF20EA551 + YCW016
-
- Button switch
- Panel cutting dia. 20.0mm
- Black cap with marking 1
- Push control with 4-step
- Snap-in design for quick panel mounting
- YCW016 wire, 4 line, 26AWG, L=30cmc
-
TWD 330
- +
-
- SF20EA551
-
- Push button switch
- Panel cutting dia. 20.0mm
- Black cap with marking 1
- Push control with 4-step
- Snap-in design for quick panel mounting
-
TWD 280
- +
-
- SF20EA552 + YCW016
-
- Button switch
- Panel cutting dia. 20.0mm
- Black cap with marking 2
- Push control with 4-step
- Snap-in design for quick panel mounting
- YCW016 wire, 4 line, 26AWG, L=30cm
-
TWD 330
- +
-
- SF20EA552
-
- Button switch
- Panel cutting dia. 20.0mm
- Black cap with marking 1
- Push control with 4-step
- Snap-in design for quick panel mounting
-
TWD 280
- +
-
.jpg)
- YCW016
-
- Cable for SF20EA Button switch
- Wire pitch 2.0mm, 4 line,26AWG, L=30cm
-
TWD 50
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
