SF19EA
- Panel cutting dia.19.0mm
- 5 Key Navigation push button tactile Switch
- LED Illuminated
- Thumb control
- General Specifications
- Circuit/Contacts SP5T Momentary
- Switching rating 50mA @ 12V DC
- Terminal Connector
- Total travel -
- Operating force Center 650gf±200gf, outside 250gf±100gf
- Mechanical life 50,000 cycles min.
- Front protection IP4X
- Illumination circular illuminative
- Materials
- Cap/Lens PA(Polyamide)
- Stem/Reflector Silicone
- Base/Housing PA(Polyamide)
- Terminal Brass with plating

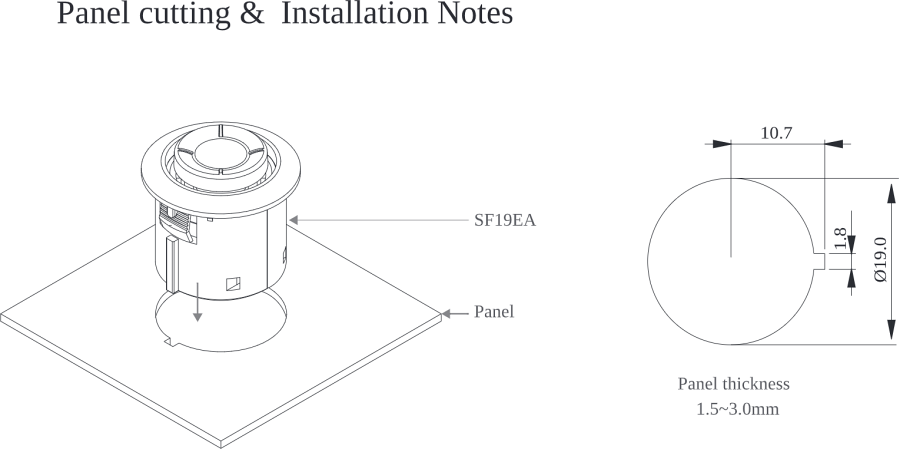

panel cutting and thickness recommend

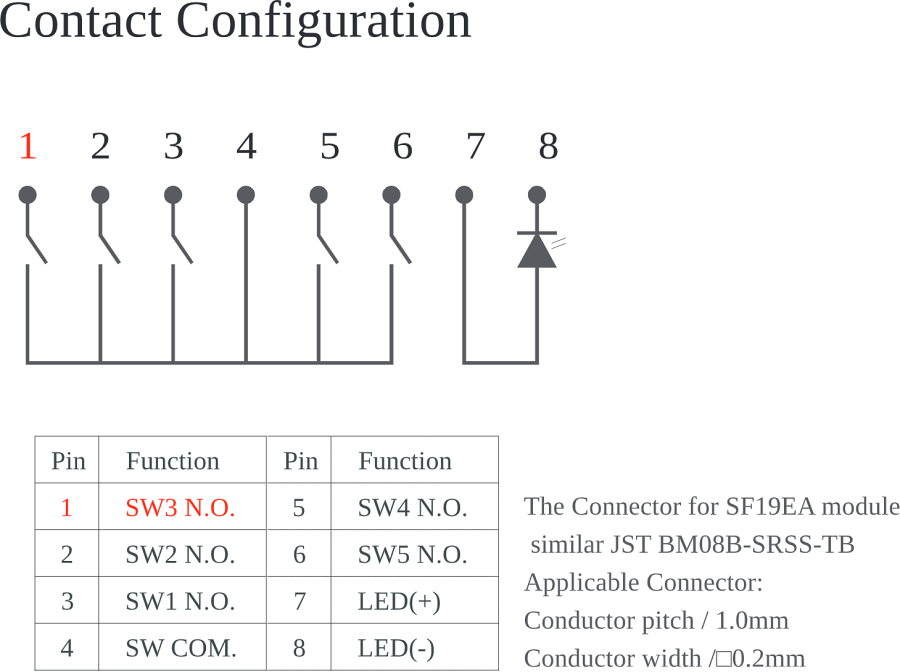

Contact Configuration

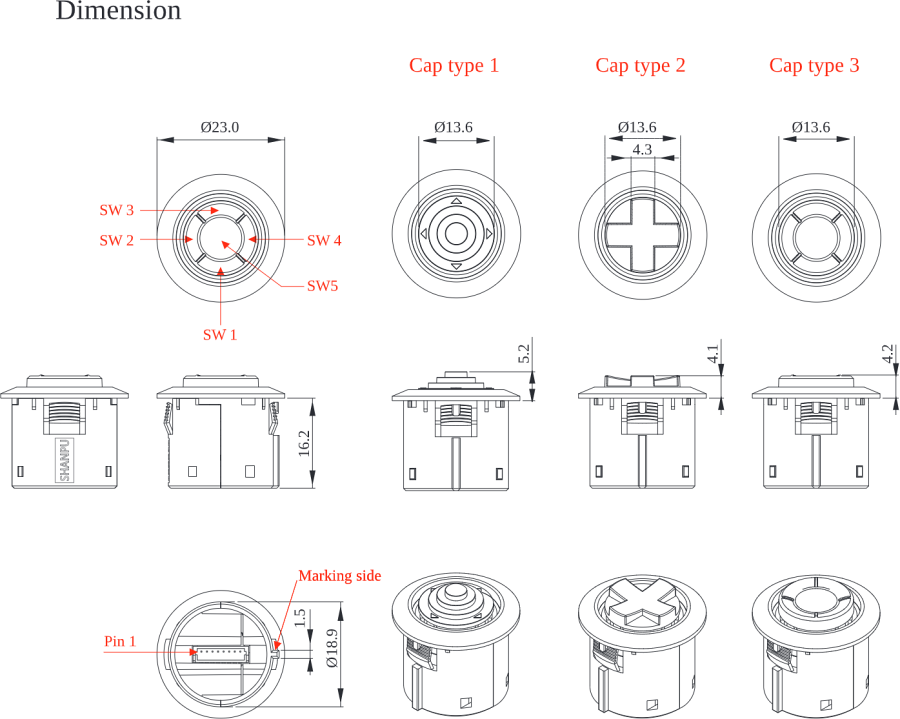

Dimension
Option
Download
Sample Order
- Module
- Part No
- Description
-
- SF19EA2551+YCW014
-
- Thumb navigation push button with yellow LED
- Black housing, Pyramidal/cone style cap
- Panel snap-in mounting, cut hole dia.19mm
- YCW014 wire L:300mm
-
TWD 590
- +
-
- SF19EA2551
-
- Yellow LED
- Thumb navigation push button
- Pyramidal/cone style black cap
- plastic black housing
- Panel mounting, cut hole dia.19mm
- not include wire YCW014
-
TWD 410
- +
-
- SF19EA7552+YCW014
-
- Thumb navigation push button with Blue LED
- Black housing, Cross style cap
- Panel snap-in mounting, cut hole dia.19mm
- YCW014 wire L:300mm
-
TWD 610
- +
-
- SF19EA7552
-
- Blue LED
- Thumb navigation push button
- Cross style black cap
- plastic black housing
- Panel mounting, cut hole dia.19mm
- not include wire YCW014
-
TWD 430
- +
-
- SF19EA7553-P001
-
- Blue LED
- Thumb navigation push button
- round style black cap marking center "Enter"
- plastic black housing
- Panel mounting, cut hole dia.19mm
- not include wire YCW014
-
TWD 460
- +
-
- SF19EA0443-P001+YCW014
-
- Thumb navigation push button without LED
- White housing,round style cap
- Panel snap-in mounting, cut hole dia.19mm
- YCW014 wire L:300mm
-
TWD 590
- +
-
- SF19EA0443-P001
-
- non LED
- Thumb navigation push button
- round style white cap marking center "Enter"
- plastic white housing
- Panel mounting, cut hole dia.19mm
- not include wire YCW014
-
TWD 410
- +
-
- YCW014 for SF19EA
-
- Wire cable for SF19EA navigation light push button
- 8pins, 30cm length
- Female connector on the end
-
TWD 180
- +
*After placing the order, a specialist will contact you to inform you of the shipping date, please pay attention to your mailbox.
*EU customers please provide EORI number.
*The color is subject to the actual product.
*Sample orders are for evaluation, please contact sales representative for larger quantities.
* All products comply with RoHs and REACH
*Obtained ISO 9001 certification in 2007.
*Obtained ISO 14001 certification in 2023.
