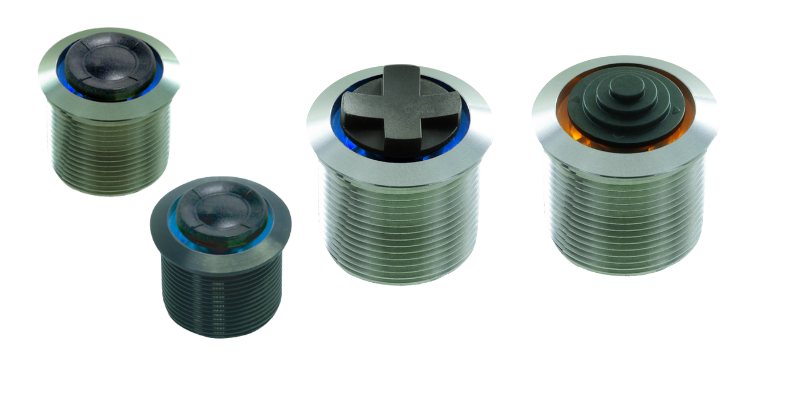

SF19BA

  • Panel cutting dia.19.0mm
  • IP65 rating
  • 5 Key Navigation Switches
  • LED Illuminated
  • Metal Housing
  • Thumb control
  • General Specifications
  • Circuit/Contacts SP5T (5-key Common bus)
  • Switching rating 50mA @ 12V DC max.
  • Terminal Connector
  • Total travel -
  • Operating force Center 650gf±200gf, outside 250gf±100gf
  • Mechanical life 50,000 cycles min.
  • Front protection IP65
  • Illumination circular illuminative
  • Materials
  • Cap/Lens Cap 1&2: PA(Polyamide), Cap3: PC(Polycarbonate)
  • Stem/Reflector Silicone
  • Base/Housing PC / SUS
  • Terminal Brass with plating

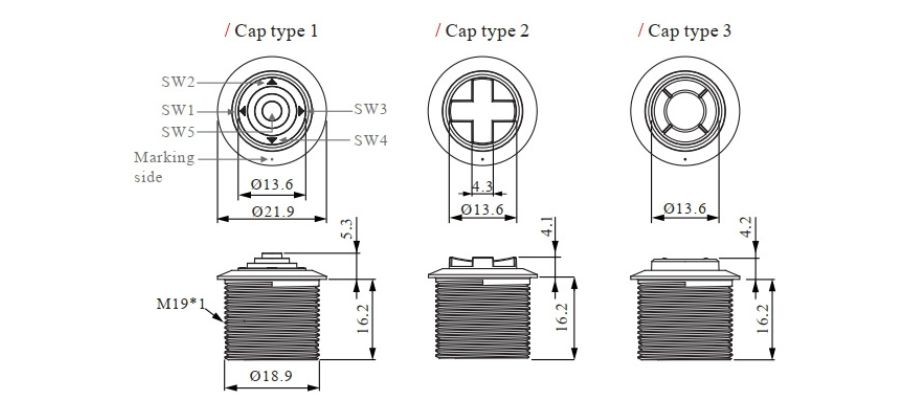

Diagram

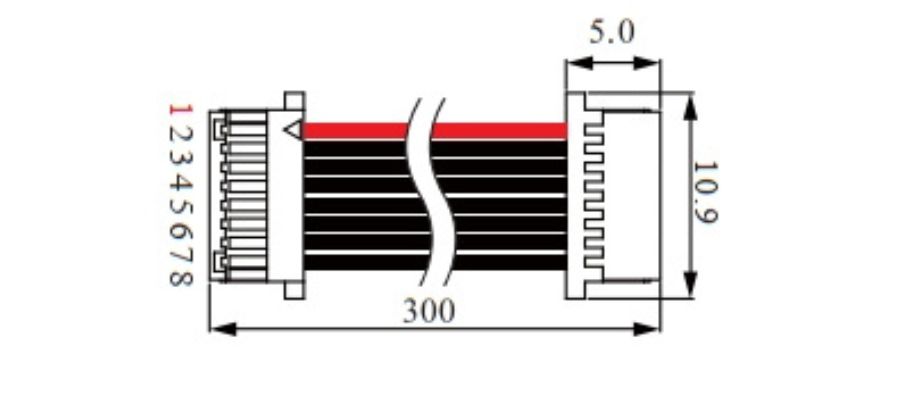

option the cable YCW014

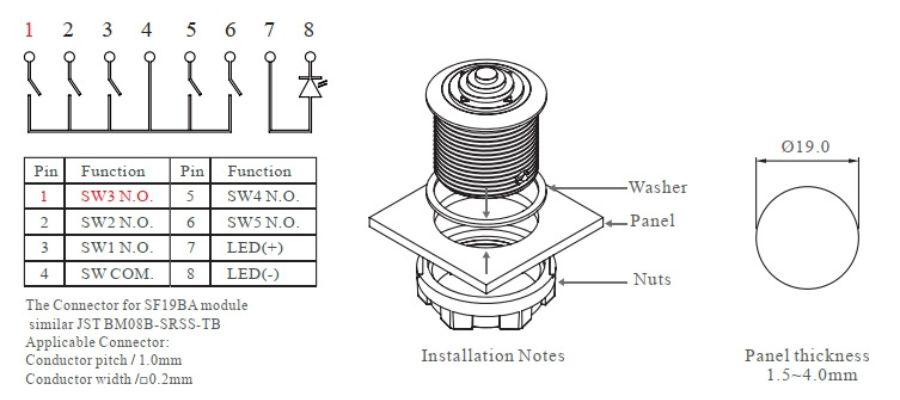

Pin defined & panel cutting hole

Download

Sample Order

  • Module
  • Part No
  • Description
  • SF19BA0B11+YCW014
    • Panel mounting cut hole dia. 19mm
    • SUS housing,Pyramidal/cone style black cap
    • IP65 waterproof
    • Thumb navigation push button
    • YCW014 wire, L:300mm
  • TWD 1,530
    - +
  • SF19BA0B11
    • without LED
    • Thumb navigation push button
    • Pyramidal/cone style black cap
    • SUS housing
    • Panel mounting, cut hole dia.19mm
    • not include wire YCW014
  • TWD 1,330
    - +
  • SF19BA7B12+YCW014
    • Panel mounting cut hole dia. 19mm
    • SUS housing,cross style black cap
    • IP65 waterproof
    • Thumb navigation push button
    • Blue LED ring lighting
    • YCW014 wire, L:300mm
  • TWD 1,560
    - +
  • SF19BA7B12
    • Blue LED backlight
    • Thumb navigation push button
    • Cross style black cap
    • SUS housing
    • Panel mounting, cut hole dia.19mm
    • not include wire YCW014
  • TWD 1,380
    - +
  • SF19BA7A13+YCW014
    • Panel mounting cut hole dia. 19mm
    • SUS black housing,round plate style black cap
    • IP65 waterproof
    • Thumb navigation push button
    • Blue LED ring lighting
    • YCW014 wire, L:300mm
  • TWD 1,600
    - +
  • SF19BA7A13
    • Blue LED backlight
    • Thumb navigation push button
    • round style black cap
    • Black SUS housing
    • Panel mounting, cut hole dia.19mm
    • not include wire YCW014
  • TWD 1,420
    - +
  • SF19BA2B11
    • Yellow LED Backlight
    • Thumb navigation push button
    • Pyramidal/cone style black cap
    • SUS housing
    • Panel mounting, cut hole dia.19mm
    • not include wire YCW014
  • TWD 1,350
    - +
  • SF19BA7B13
    • Blue LED backlight
    • Thumb navigation push button
    • round style black cap
    • SUS housing
    • Panel mounting, cut hole dia.19mm
    • not include wire YCW014
  • TWD 1,390
    - +
  • YCW014 for SF19BA wire
    • Wire cable for SF19BA navigation light push button
    • 8pins, 30cm length
    • Female connector on the end
  • TWD 180
    - +
